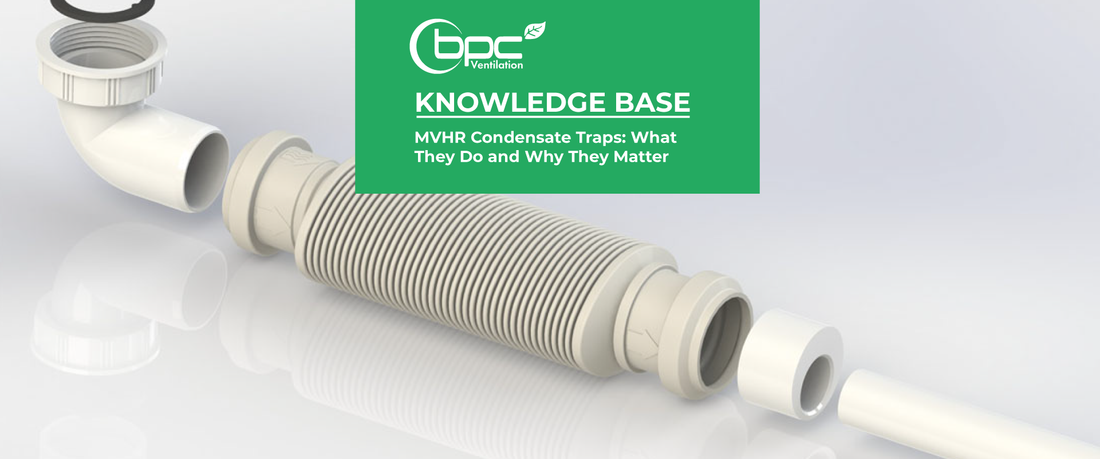

MVHR Condensate Traps: What They Do and Why They Matter

What is an MVHR condensate trap?

An MVHR condensate trap is a drainage component used to manage water produced by a mechanical ventilation with heat recovery system. As warm, moist extract air passes through the MVHR unit, the heat exchanger transfers heat into the incoming fresh air. During this process, moisture in the extracted air can cool and turn into condensation.

This water needs somewhere to go. The condensate trap and drainage connection help direct it away from the MVHR unit and into a suitable drain point.

In simple terms, an MVHR condensate trap helps stop water from sitting inside the unit.

Why do MVHR units produce condensate?

MVHR systems extract warm, moist air from areas such as bathrooms, kitchens, utility rooms and wet rooms. This air often contains water vapour from showers, cooking, washing and general household activity.

When that warm air reaches the cooler surfaces within the heat exchanger, condensation can form. This is a normal part of the heat recovery process, especially during colder months when there is a bigger temperature difference between indoor and outdoor air.

That is why condensate drainage is an important part of many MVHR installations.

Do all MVHR systems need a condensate trap?

Many MVHR systems require a condensate drain or trap, but the exact requirement depends on the specific unit, installation method and manufacturer’s instructions.

For most domestic MVHR systems, condensate drainage should be considered at the planning stage rather than left until installation. The unit location, available drain route, ductwork layout and access for future maintenance can all affect how the condensate connection is installed.

Always check the installation manual for the MVHR unit being used and follow the manufacturer’s guidance. If you are unsure, speak to a ventilation specialist before installation.

For wider ventilation guidance, you can also refer to the official Approved Document F: Ventilation guidance from GOV.UK.

Why is an MVHR condensate trap important?

A properly installed MVHR condensate trap helps support the long-term performance and reliability of the system. Without suitable drainage, condensation may collect inside the unit or around the installation area.

This can lead to issues such as:

• Water collecting inside or around the MVHR unit
• Reduced system efficiency
• Leaks near the unit or ceiling void
• Increased risk of moisture-related damage
• Unpleasant smells if drainage is not correctly trapped
• More maintenance problems over time

A condensate trap is a small component, but it plays a key role in protecting the ventilation system and the surrounding building fabric.

Where is a condensate trap fitted on an MVHR system?

The condensate trap is usually connected to the condensate outlet on the MVHR unit. From there, pipework directs the water to a suitable drain point.

The exact position depends on the MVHR unit and the manufacturer’s installation instructions. In many cases, the condensate pipework needs to fall correctly so that water can drain away naturally. Poor falls, blockages or incorrect connections can prevent water from draining as intended.

If the condensate pipe passes through a cold or unheated area, it may also need additional protection to help reduce the risk of freezing.

Common signs of an MVHR condensate drainage problem

A condensate trap or drain issue may not always be obvious at first. However, there are a few signs that something may be wrong.

You may need to check the condensate drainage if you notice:

• Water leaking from or near the MVHR unit
• Gurgling sounds from the drain connection
• Damp patches around the unit or ceiling area
• A blocked or slow-draining condensate pipe
• Unusual smells near the drainage connection
• The system showing a fault related to condensate or drainage

If you notice any of these issues, the system should be checked by a competent installer or ventilation engineer.

How to help prevent condensate trap problems

Good installation and regular checks can help prevent common condensate drainage issues.

Before installation, make sure the MVHR unit location allows for a suitable condensate drain route. The pipework should be installed in line with the manufacturer’s instructions and should be accessible enough for future inspection where possible.

After installation, it is useful to check the system periodically, especially during colder months when condensation levels may be higher. Keeping filters clean and maintaining the MVHR unit can also help the system run correctly.

Choosing an MVHR condensate drainage kit

When choosing a condensate trap or drainage kit, it is important to make sure it is suitable for MVHR applications. A purpose-made MVHR condensate drainage kit can help simplify installation and provide the correct components needed to manage condensate safely.

The Domus MVHR Condensate Drainage Kit available from BPC Ventilation is designed to help manage condensate in mechanical ventilation with heat recovery systems. It provides a practical solution for MVHR installations where condensate drainage is required.

If you are ordering an MVHR system, it is worth checking whether the condensate drainage components are included or need to be purchased separately.

Need help with MVHR system design?

If you are planning a new build, renovation or ventilation upgrade, BPC Ventilation can help you choose the right MVHR system and accessories for your project.

Our team can support with MVHR units, ducting, filters, controllers, condensate drainage kits and full ventilation system design. Whether you are a homeowner, self-builder, contractor or installer, we can help you find the right solution for your property.

Explore our MVHR units and ventilation accessories online, or contact BPC Ventilation for support with your project.
