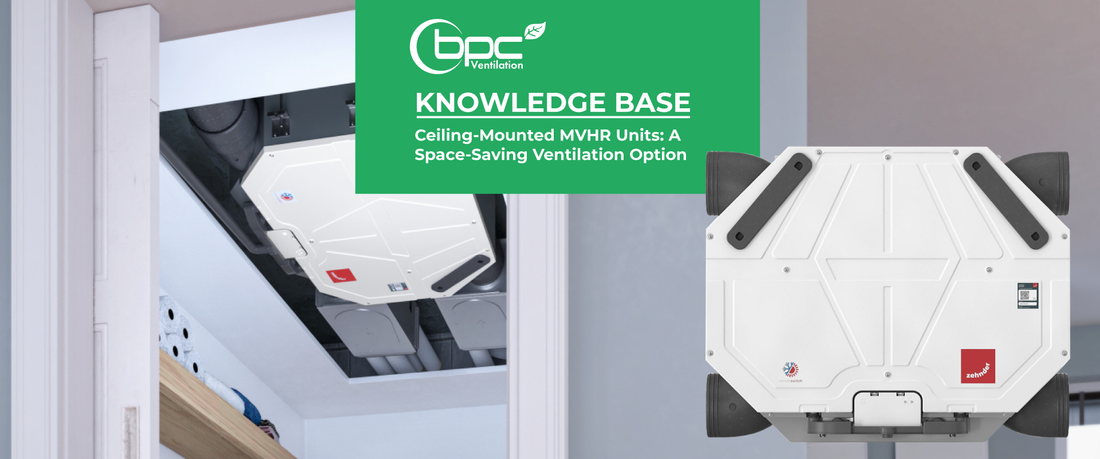

Ceiling-Mounted MVHR Units: A Space-Saving Ventilation Option
Ceiling-Mounted MVHR Units: A Space-Saving Ventilation Option
When planning an MVHR system, deciding where the unit will be installed is an important part of the overall design. While many MVHR units are fitted to a wall or inside a utility cupboard, a ceiling-mounted MVHR unit can provide a practical alternative where wall and cupboard space is limited.
Designed for horizontal installation, these low-profile units can be positioned within a suitable ceiling void or above a suspended ceiling. This makes them particularly useful for apartments, compact homes and projects where building services need to be kept discreetly out of sight.
What is a ceiling-mounted MVHR unit?
A ceiling-mounted MVHR unit performs the same main function as a conventional whole-house MVHR system. It continuously extracts stale, humid air from wet rooms such as kitchens, bathrooms and utility rooms while supplying fresh, filtered air to bedrooms and living areas.
Heat from the outgoing air is transferred to the incoming fresh air, helping to provide effective ventilation without losing as much heat through uncontrolled ventilation.
For projects in England, the UK Government’s Approved Document F provides guidance on the ventilation requirements for dwellings. Requirements differ across Northern Ireland, Scotland, Wales and Ireland, so the regulations applicable to the project location should always be followed.
You can explore BPC Ventilation’s range of MVHR units and heat recovery ventilation systems, including selected models designed for ceiling installation.
Benefits of a ceiling-mounted MVHR system
Saves valuable wall and cupboard space
One of the main advantages of ceiling-mounted MVHR is that the unit does not require a full-height utility cupboard or a large section of usable wall space. The system can instead be incorporated into a planned ceiling service zone.
Creates a discreet installation
Once the ceiling is completed, the main unit can remain hidden from view, with only the room air valves, controls and maintenance access panel visible.
Suitable for restricted spaces
Low-profile ceiling void MVHR units are available for projects where installation depth is limited. For example, selected Nuaire and Domus horizontal units are designed around a 200mm-high service void, although the full installation dimensions and required clearances must still be checked before specifying a model.
Supports organised ductwork layouts
When the unit is positioned centrally, a ceiling installation may help create practical duct routes to different rooms. Semi-rigid radial ductwork can be used to create individual airflow routes between the distribution manifold and each room terminal.
What should be considered before installation?
A ceiling-mounted MVHR unit should be planned as part of the wider ventilation design. It should not simply be placed in any available ceiling space.
Confirm that the unit is suitable for horizontal mounting
Not every MVHR unit can be installed horizontally. The selected model must be specifically approved for ceiling mounting and installed in the orientation shown in its manufacturer’s instructions.
Incorrect positioning can affect condensate drainage, servicing and system performance.
Allow sufficient maintenance access
The ceiling void must remain accessible after the building work is complete. Enough working space should be provided to:
- Remove the unit cover.
- Replace the filters.
- Inspect the heat exchanger and internal components.
- Reach the condensate connection.
- Access controls, wiring and duct connections.
A properly sized access hatch should be included in the ceiling design. Manufacturer instructions for ceiling-mounted units require sufficient access for filter changes and maintenance, rather than permanently sealing the unit behind plasterboard.
Replacement MVHR filters should also be readily accessible as part of routine system maintenance.
Plan the condensate drain
MVHR systems can produce condensation as warm, humid extract air passes through the heat exchanger. Where the unit requires a condensate connection, the drain must be installed with the correct fall and connected using the method stated in the manufacturer’s installation instructions.
This is particularly important with a horizontal unit because it must be installed level and in the correct orientation for the internal condensate tray to drain properly.
Consider noise and vibration
The unit should be secured to a suitable structure rather than lightweight ceiling finishes alone. Correct mounting, suitable ductwork and careful commissioning can all help reduce vibration and noise transfer.
Ductwork silencers can also be incorporated into the system where attenuation is required, such as near the MVHR unit or before ductwork reaches occupied rooms.
Ceiling-mounted or wall-mounted MVHR?
Neither mounting option is automatically better for every property.
A wall-mounted unit may provide easier front access for servicing but requires a suitable utility room, cupboard, garage or loft wall. A ceiling-mounted MVHR unit saves usable wall space but requires adequate void depth, structural support, condensate drainage and permanent maintenance access.
The correct choice depends on the property layout, required airflow, available installation space and proposed duct routes.
MVHR design support from BPC Ventilation
Choosing a ceiling-mounted MVHR unit should be based on more than its physical dimensions. The unit must also be capable of providing the required airflow once resistance from the ductwork, silencers, terminals and other system components has been considered.
With BPC Ventilation’s free estimate and layout guide, you can send us your drawings and project details for review. Our design team can provide:
- Room-by-room airflow figures
- Valve requirements for each room
- Guidance on the MVHR unit location
- Suggested valve positions
- Guidance on intake and exhaust routes
- A recommended system and material estimate
For a standard property or an early-stage budget, you can also use our Instant MVHR Quote to receive a basic airflow calculation, suggested material list and kit price. More complex properties or projects involving restricted ceiling voids are generally better suited to a plan-based estimate.
Is a ceiling-mounted MVHR unit right for your property?
A ceiling-mounted MVHR unit can be an effective solution where usable space is limited, but it must be considered early in the project.
Before selecting a unit, confirm that there is:
- Adequate ceiling void depth.
- A suitable mounting structure.
- Permanent maintenance access.
- A practical condensate drainage route.
- Space for ductwork, insulation and silencers.
- A completed airflow and system design.
Browse our MVHR units or send your plans to BPC Ventilation for a tailored, obligation-free proposal and layout guidance.
Frequently asked questions
Can any MVHR unit be mounted on the ceiling?
No. Only an MVHR unit specifically approved for horizontal or ceiling mounting should be installed in this position. Always follow the manufacturer’s mounting and condensate instructions.
Does a ceiling-mounted MVHR unit need an access hatch?
Yes. The filters, heat exchanger, condensate connection and other serviceable components must remain accessible after the ceiling is completed.
Are ceiling-mounted MVHR units suitable for apartments?
They can be particularly useful in apartments and compact properties where wall or cupboard space is restricted. The available void depth, maintenance access, airflow requirements and duct routes must still be checked before selecting the unit.
Is a ceiling-mounted MVHR unit noisier?
Not necessarily. Noise depends on the selected unit, mounting structure, airflow, duct design, commissioning and the use of suitable attenuation. A correctly planned installation should account for both airborne noise and vibration.
