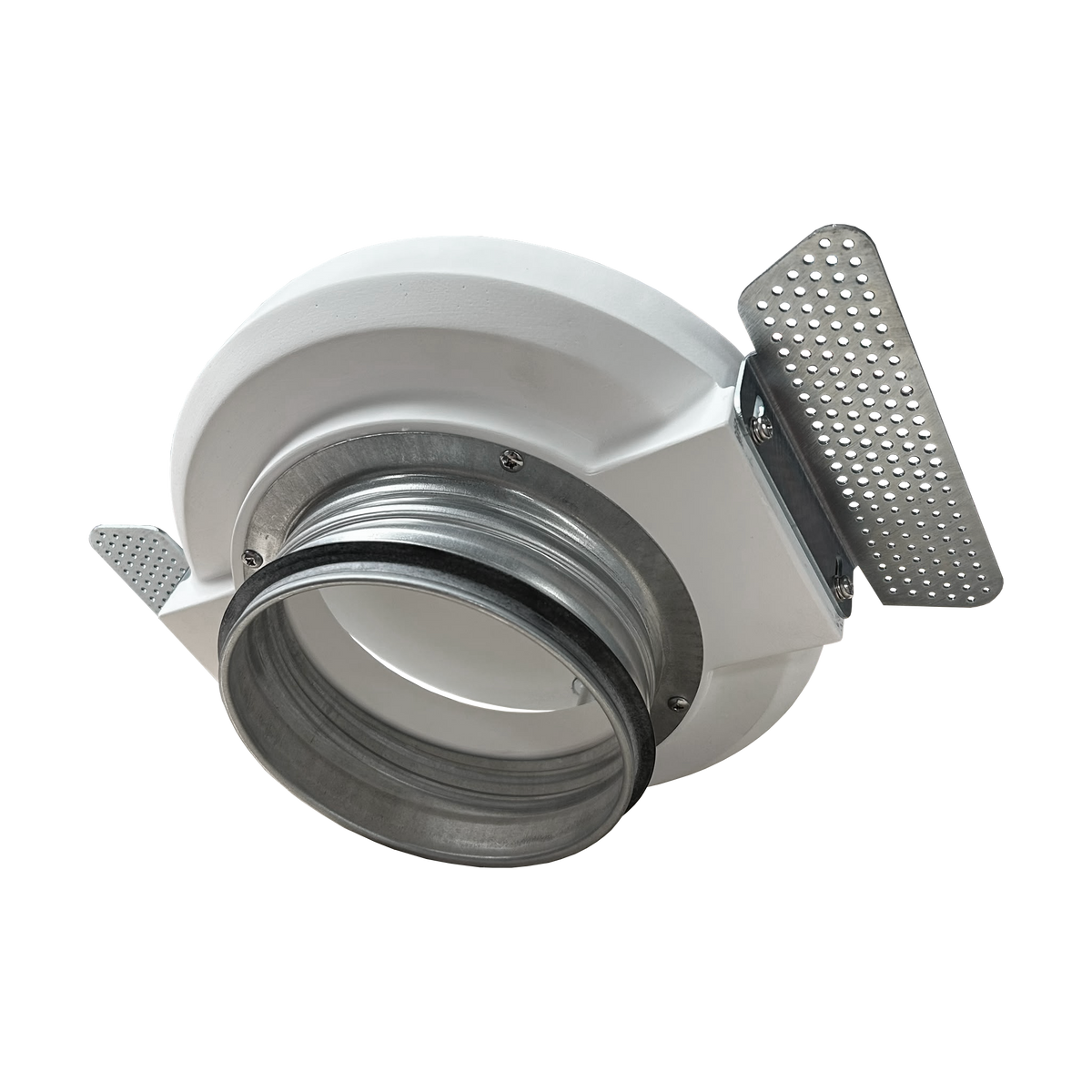

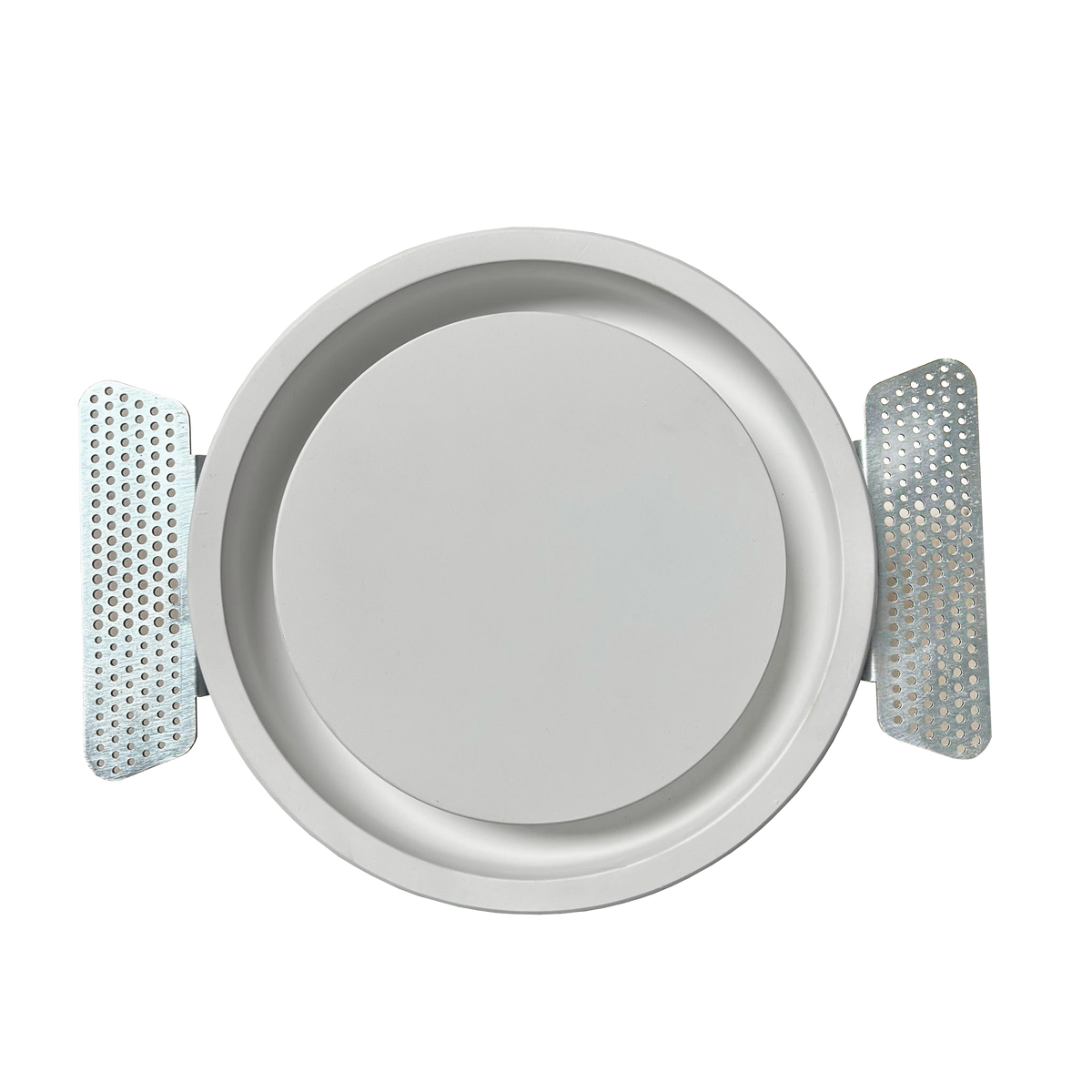

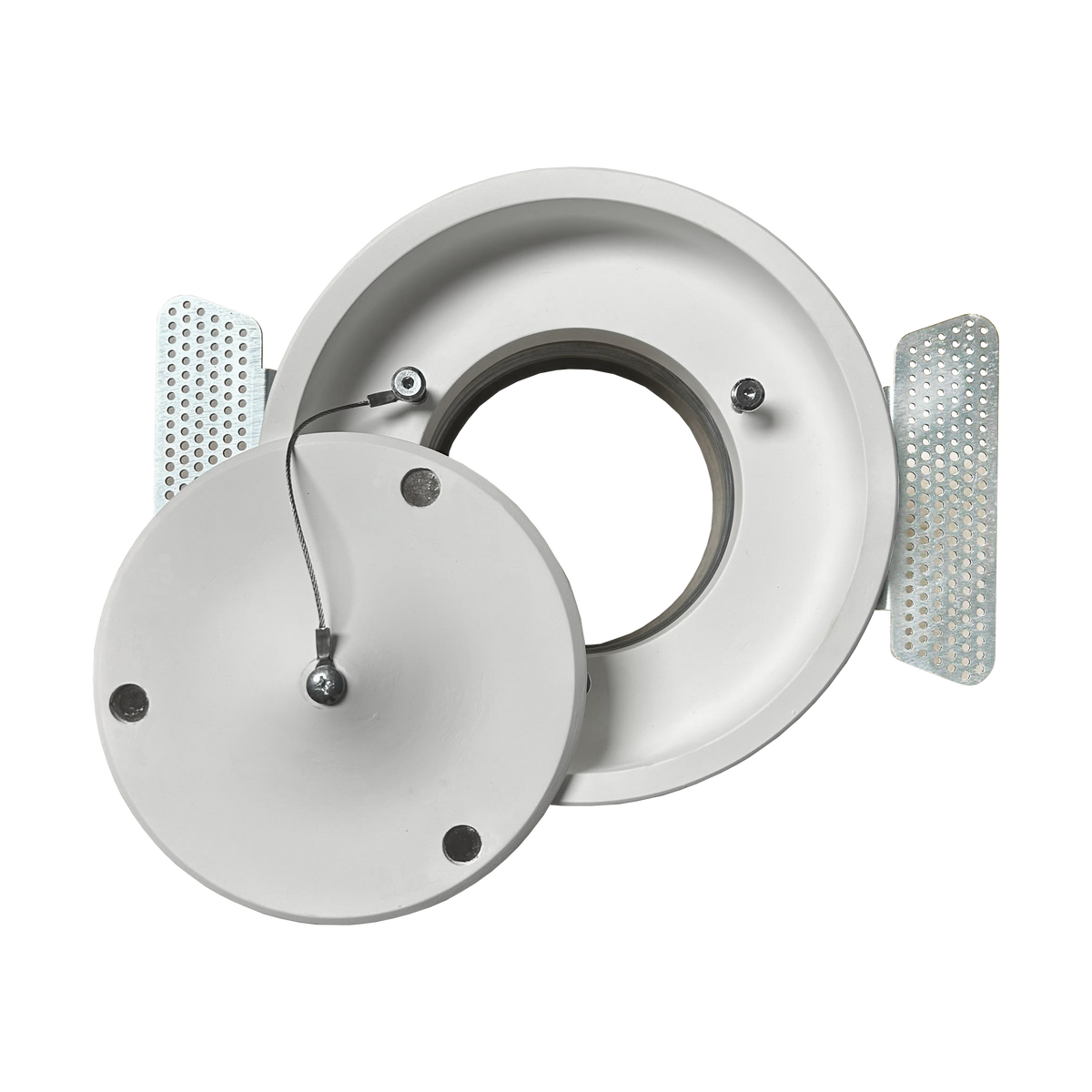

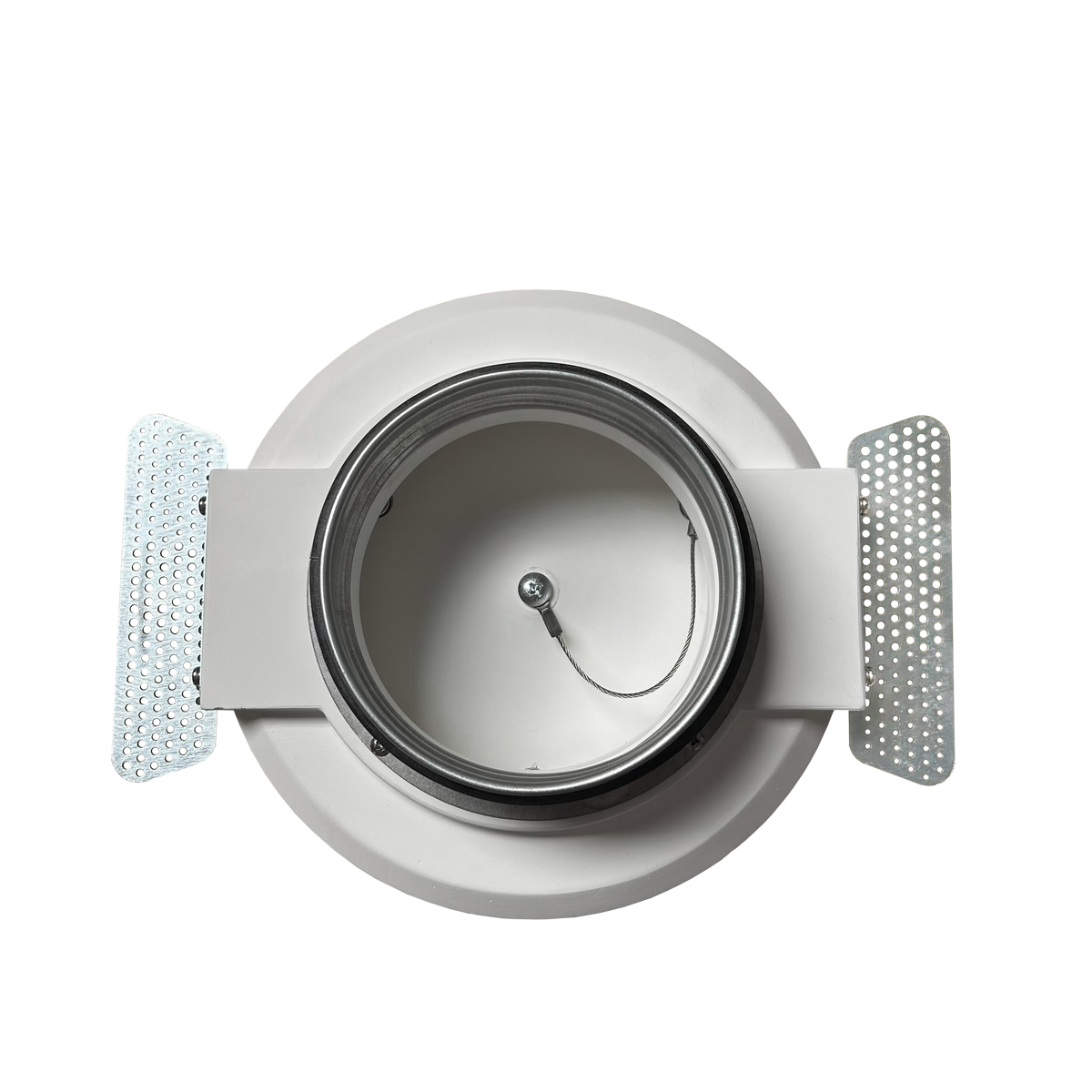

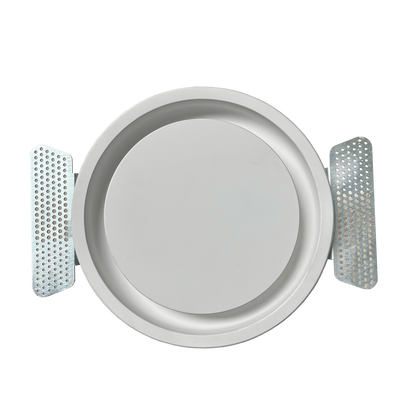

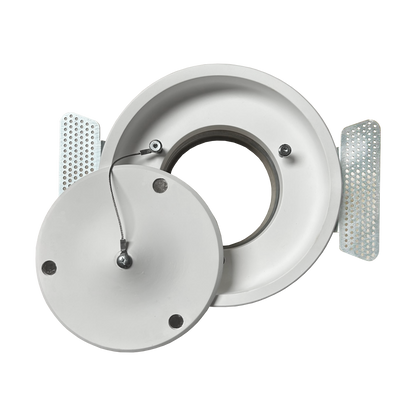

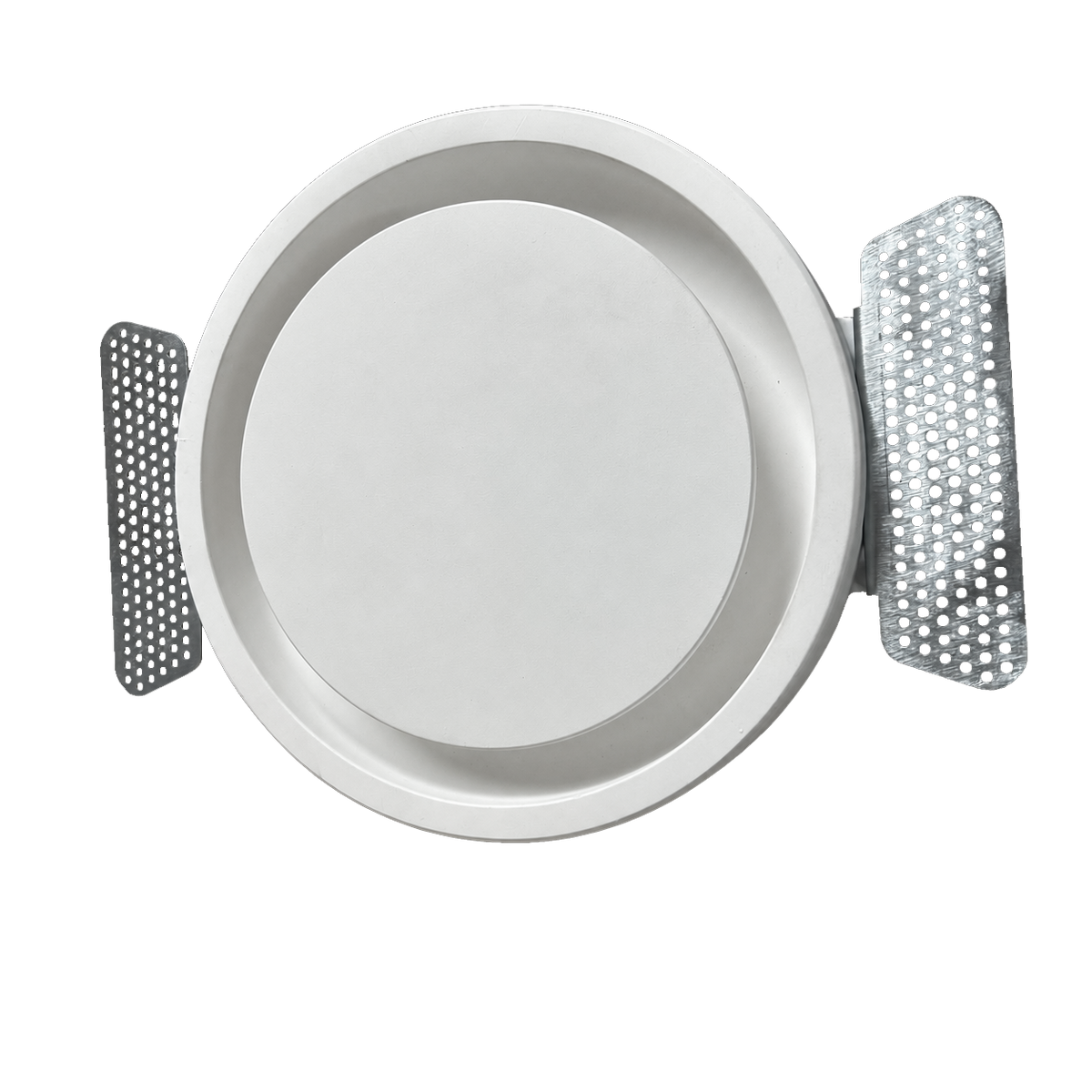

VS 125mm PLASTER CIRCULAR DIFFUSER

SKU : VS-125-GPV

Overview

The VS 125mm Plaster Circular Diffuser provides a discreet, frameless air terminal for modern ventilation installations. Designed to be integrated into a plasterboard ceiling or wall, the diffuser can be plastered and painted to match the surrounding surface, leaving a clean circular opening visible after installation.

£44.68 GBP Excl. VAT: £37.23 GBP

In Stock

For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.

Any questions? Reach out to our team

View full details

Description

Product Part Number

VS-125-GPV

Product Overview

Suitable for supply or extract ventilation, its circular design distributes air neatly while maintaining a minimal interior finish. The diffuser connects to 125mm circular ducting and can be paired with the compatible VS-125-FFCD foam damper where additional airflow regulation is required. Circular plaster diffusers of this type are commonly suitable for both supply and extract systems and are designed to form a permanent, flush connection with the surrounding plasterboard.

Key Features

Frameless plaster-in circular design
Suitable for supply or extract ventilation
Designed for 125mm circular ducting
Suitable for plasterboard ceilings or walls
Can be plastered and painted to match the surrounding surface
Provides a clean, discreet interior finish
Suitable for domestic and light commercial ventilation systems
Compatible with the VS-125-FFCD foam damper
Smooth circular design supports even air distribution
Durable plaster-based construction

Technical Specification

Specification	Details
Product code	VS-125-GPV
Product type	Plaster-in circular air diffuser
Application	Supply or extract ventilation
Nominal connection size	125mm
Shape	Circular
Material	Plaster/gypsum composite
Colour	White
Finish	Paintable
Installation	Plasterboard ceiling or wall
Mounting style	Frameless, flush-mounted
Duct connection	Circular
Compatible duct size	125mm
Airflow regulation	Compatible with optional VS-125-FFCD foam damper
Damper included	No
Suitable systems	Domestic and light commercial ventilation systems
Fire rating	Not fire rated unless separately certified

Frequently Asked Questions

What are internal air valves used for?

Internal air valves are used as the room-side ventilation terminal in a property. They can supply fresh air into living spaces and bedrooms or extract stale air from wet rooms such as bathrooms, kitchens and utility rooms.
What is the difference between a supply valve and an extract valve?

A supply valve delivers fresh air into a room, while an extract valve removes stale or humid air from a room. The correct type depends on the room and the ventilation system design.
Are discreet ceiling air valves available?

Yes, discreet ceiling air valves are available for projects where a more minimal finish is preferred. These can be useful in modern interiors where the visible ventilation finish is important.
Do air valves need to be adjusted or balanced?

Yes, air valves may need to be adjusted during system commissioning to achieve the correct airflow rates, helping the ventilation system perform as intended.
Can internal air valves be adjusted after installation without removal?

Many ventilation valves allow airflow adjustment at the valve face or centre cone. The exact adjustment method depends on the valve model.
