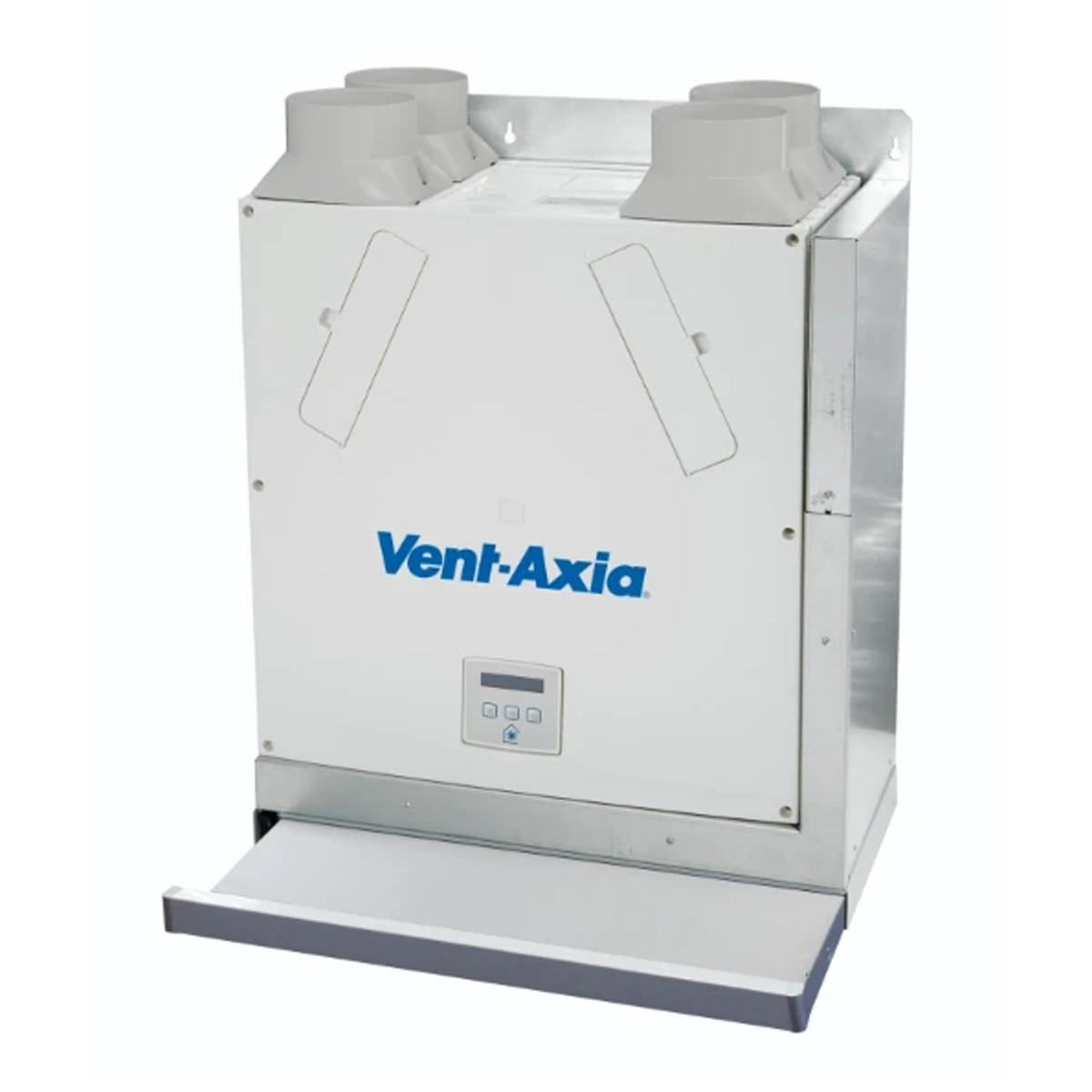

Vent Axia Lo-Carbon CSH R SELV Sentinel Kinetic MVHR Cooker Hood (Brushed Aluminium Right)

Product Part Number

477006

Product Overview

The Vent-Axia Lo-Carbon Sentinel Kinetic CSH R SELV is a mechanical ventilation with heat recovery unit designed with an integrated cooker hood canopy for kitchen installations.

This right-hand brushed aluminium model combines whole-house heat recovery ventilation with a discreet kitchen cooker hood, making it a practical choice for new build properties and energy-efficient homes. The unit is designed to fit within a 600mm wide aperture above the hob and can be installed with horizontal or vertical ducting options to help suit space-restricted applications.

When the cooker hood is opened, the MVHR unit automatically switches to boost speed, while the summer bypass opens to help prevent cooking by-products entering the heat recovery cell. The cooker hood also includes removable metal grease filters, low energy light bulbs and an integral fire damper for added safety.

The SELV version allows the required clearance above an electric hob to be reduced from 650mm to 550mm, making it suitable for kitchen designs where installation space is limited. With integrated digital controls, plug-and-play control options, BMS connectivity and self-diagnosis features, this unit is designed for straightforward commissioning, operation and maintenance.

Technical Specification

Product Type: MVHR unit with integrated cooker hood

Manufacturer: Vent-Axia

Product Range: Lo-Carbon Sentinel Kinetic Cooker Hood

Model: Lo-Carbon Sentinel Kinetic CSH R SELV

Stock Reference: 477006

Finish: Brushed Aluminium

Handing: Right-hand model

Ventilation Type: Mechanical Ventilation with Heat Recovery (MVHR)

Application: Kitchen / whole-house ventilation

Sector: New build

Ducting Connection Size: 125mm

IP Rating: IP22

Installation Aperture: Designed to fit within a 600mm wide aperture

Minimum Internal Cupboard Depth: 300mm

Ducting Options: Horizontal, vertical or combined ducting connections

Cooker Hood Features: Telescopic cooker hood canopy with two removable flat metal grease filters and low energy light bulbs

Controls: Integrated digital controller for commissioning and operation

Control Options: Plug-and-play controls, humidistat, BMS connectivity and LS input/light switch input

Timer Function: Adjustable delay-on and delay-off timer

Fault Finding: Self-diagnosis feature for simplified fault identification

Boost Function: Opening the cooker hood activates boost speed on the MVHR unit

Summer Bypass: Opens automatically when the cooker hood is activated to help prevent cooking by-products entering the heat recovery cell

Safety Features: Integral fire damper and thermal cut-out fuse within the cooker hood duct

SELV Clearance Benefit: Allows the distance between the hood and an electric hob to be reduced from 650mm to 550mm

Condensate Connection: Can be taken through the rear of the unit or through the side into an adjacent cupboard before connection to a domestic waste water system

Suitable For: Kitchen installations requiring heat recovery ventilation with an integrated cooker hood
