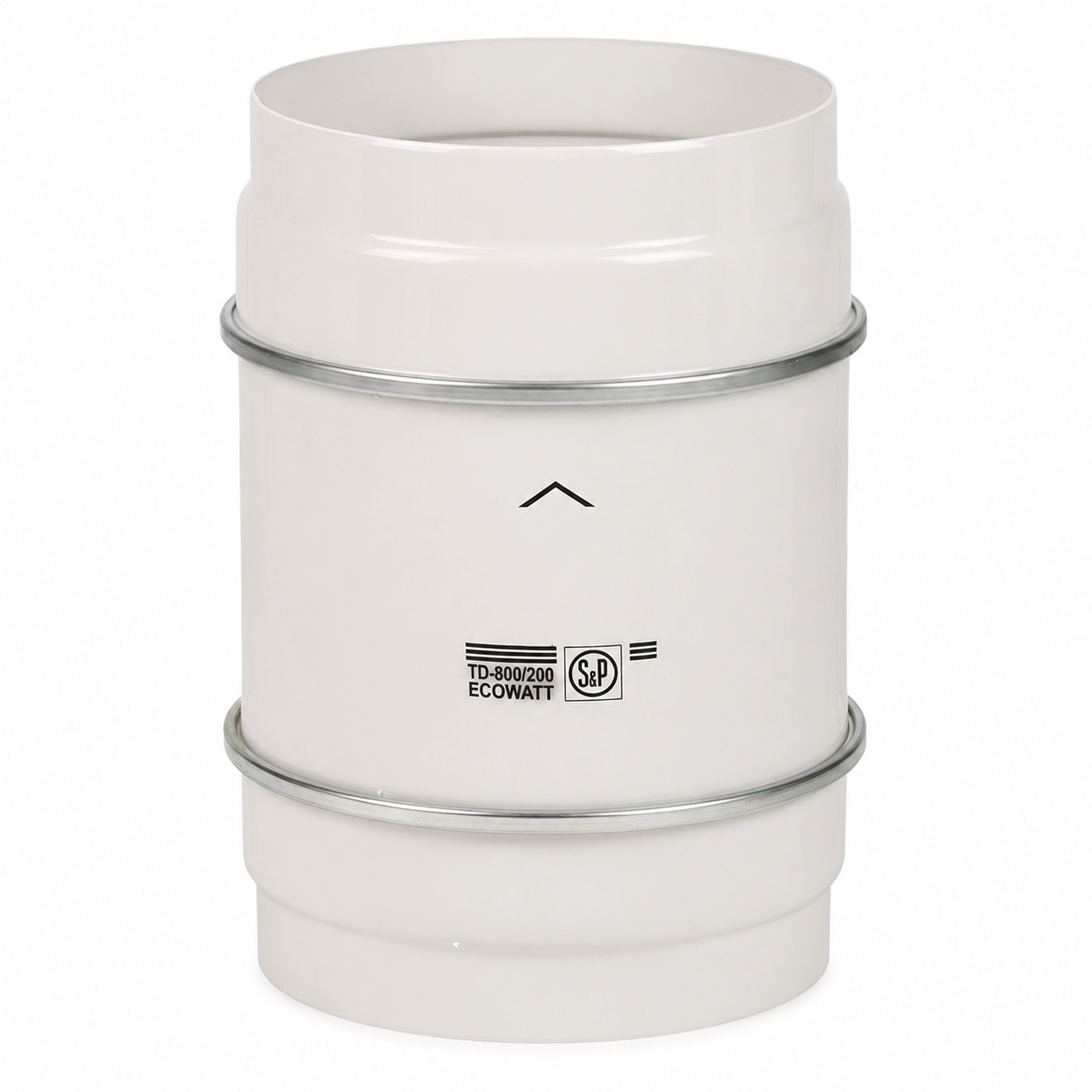

S&P TD-800/200-3V Standard In-Line Fan - Rated @1247/s 3 speed

S&P TD-800/200-3V Standard In-Line Fan - Rated @1247/s 3 speed

SKU : TD-800/200-3V

Overview

The S&P TD-800/200-3V Standard In-Line Fan is a high-capacity mixed-flow duct fan designed for use with 200mm circular ducting in residential and commercial ventilation systems. Its compact, low-profile construction makes it suitable for installation within ceiling voids and other areas where available space is limited.
£184.47 GBP Excl. VAT: £153.73 GBP

Out of Stock
  • For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
View full details

Description

Product Part Number

TD-800/200-3V

Description

The S&P TD-800/200-3V Standard In-Line Fan is a high-capacity mixed-flow duct fan designed for use with 200mm circular ducting in residential and commercial ventilation systems. Its compact, low-profile construction makes it suitable for installation within ceiling voids and other areas where available space is limited.

The three-speed motor provides airflow rates of 850m³/h, 940m³/h and 1,040m³/h, allowing the performance to be selected according to the ventilation requirements of the installation. At maximum speed, the fan delivers approximately 288.9l/s.

Manufactured with a reinforced polypropylene casing and ABS mixed-flow impeller, the TD-800/200-3V provides a durable yet lightweight solution. The removable motor and impeller assembly can be accessed for servicing without disconnecting the adjoining ductwork, helping simplify installation and maintenance. The standard model can also be used with a compatible voltage speed controller where further airflow adjustment is required.

Technical Specification

Specification Details
Manufacturer Soler & Palau (S&P)
Model TD-800/200-3V
Manufacturer reference 5211304900
Fan type In-line mixed-flow duct fan
Nominal duct diameter 200mm
Number of speeds 3
Maximum airflow – high speed 1,040m³/h / 288.9l/s
Maximum airflow – medium speed 940m³/h / 261.1l/s
Maximum airflow – low speed 850m³/h / 236.1l/s
Motor speed – high 2,480rpm
Motor speed – medium 2,290rpm
Motor speed – low 2,080rpm
Maximum absorbed power – high 132W
Maximum absorbed power – medium 133W
Maximum absorbed power – low 131W
Maximum absorbed current – high 0.55A
Maximum absorbed current – medium 0.56A
Maximum absorbed current – low 0.55A
Sound pressure level – high 40dB(A) at 3 metres
Sound pressure level – medium 37dB(A) at 3 metres
Sound pressure level – low 34dB(A) at 3 metres
Electrical supply 230V, single phase, 50/60Hz
Operating air temperature −20°C to +60°C
Weight 4.9kg
Protection rating IP44
Electrical protection class Class II
Motor insulation class Class B
Motor bearings Ball bearings
Motor protection Safety thermal overload protection
Casing material Reinforced polypropylene
Impeller material ABS
Speed control Direct three-speed connection and suitable for voltage speed control
Compatible switches COM-3 and INTER 4P
Compatible speed controllers RMB-1.5 and REB-1
Overall length 302mm
Maximum casing diameter 217mm
Connection spigot diameter 198mm, suitable for 200mm ducting
Mounting Integrated removable support bracket

Frequently Asked Questions

  • What is an extractor fan used for?

    An extractor fan removes humid, stale or polluted air from a room. They are commonly used in bathrooms, kitchens, utility rooms and other areas where moisture, odours or poor airflow can build up.

  • What extractor fan do I need for a bathroom?

    The right bathroom extractor fan depends on the room size, installation location, duct route and control type required. Timer, humidity and low-carbon options are available depending on the project.

  • Can extractor fans help with condensation?

    Yes, extractor fans can help reduce condensation by removing humid air from wet rooms. However, condensation can also be affected by insulation, heating, airflow and overall ventilation.

  • What is a D-MEV fan?

    A D-MEV fan is a decentralised mechanical extract ventilation fan. It usually runs continuously at a low rate, with boost options when more extraction is needed.

  • What is the difference between an extractor fan and an inline fan?

    A standard extractor fan is usually mounted on a wall, window or ceiling. An inline fan is installed within the duct run, often in a loft or ceiling void, and can be useful where a longer duct route is needed.
