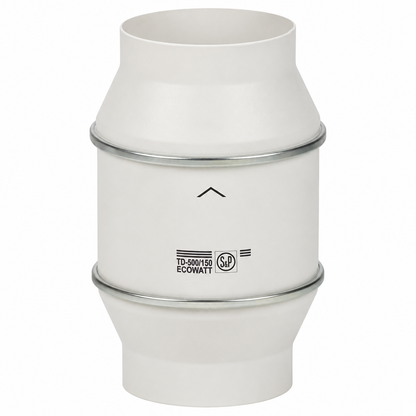

S&P TD-500/150-3V-T Standard In-Line Fan c/w Timer - Rated @155.5l/s 3 speed

S&P TD-500/150-3V-T Standard In-Line Fan c/w Timer - Rated @155.5l/s 3 speed

SKU : TD-500/150-T

Overview

The S&P TD-500/150 T 3V Standard In-Line Fan is a compact mixed-flow duct fan designed for use with 150mm circular ducting in residential, commercial and light industrial ventilation systems. Its low-profile construction makes it suitable for installation within ceiling voids and other areas where available space is limited.
£156.40 GBP Excl. VAT: £130.33 GBP

Out of Stock
  • For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.

Download Files

View full details

Description

Product Part Number

TD-500/150-T

Description

The S&P TD-500/150 T 3V Standard In-Line Fan is a compact mixed-flow duct fan designed for use with 150mm circular ducting in residential, commercial and light industrial ventilation systems. Its low-profile construction makes it suitable for installation within ceiling voids and other areas where available space is limited.

The three-speed motor provides airflow rates of 390m³/h, 470m³/h and 560m³/h, allowing the required operating speed to be selected using a compatible three-speed switch. At maximum speed, the fan delivers approximately 155.6l/s.

An integrated adjustable run-on timer allows the fan to continue operating for between 1 and 30 minutes after the connected switch has been turned off. This helps clear remaining moisture, odours and stale air from the ventilated area. Although it has three selectable speeds, S&P states that timer-equipped TD-MIXVENT models are not suitable for use with an external variable-speed controller.

Manufactured with a polypropylene casing and ABS mixed-flow impeller, the fan provides a lightweight and durable ventilation solution. Its removable motor and impeller assembly allows maintenance to be completed without disconnecting the adjoining ductwork.

Technical Specification

Specification Details
Manufacturer Soler & Palau (S&P)
Model TD-500/150 T 3V
Manufacturer reference 5211358700
Fan type In-line mixed-flow duct fan
Nominal duct diameter 150mm
Number of speeds 3
Timer Adjustable run-on timer
Timer range 1–30 minutes
Maximum airflow – high speed 560m³/h / 155.6l/s
Maximum airflow – medium speed 470m³/h / 130.6l/s
Maximum airflow – low speed 390m³/h / 108.3l/s
Motor speed – high 2,590rpm
Motor speed – medium 2,150rpm
Motor speed – low 1,820rpm
Maximum absorbed power – high 53W
Maximum absorbed power – medium 44W
Maximum absorbed power – low 41W
Maximum absorbed current – high 0.21A
Maximum absorbed current – medium 0.19A
Maximum absorbed current – low 0.18A
Sound pressure level – high 35dB(A) at 3 metres
Sound pressure level – medium 31dB(A) at 3 metres
Sound pressure level – low 26dB(A) at 3 metres
Electrical supply 220–240V, single phase, 50/60Hz
Operating air temperature −20°C to +60°C
Weight 2.7kg
Protection rating IP44
Electrical protection class Class II
Motor insulation class Class B
Motor bearings Ball bearings, greased for life
Motor protection Safety thermal overload protection
Casing material Polypropylene
Impeller material ABS
Compatible three-speed switch INTER 4P
Variable-speed controller compatibility Not suitable
Overall length 295mm
Maximum casing diameter 200mm
Connection spigot diameter 147mm, suitable for 150mm ducting
Mounting Removable support bracket

Frequently Asked Questions

  • What is an extractor fan used for?

    An extractor fan removes humid, stale or polluted air from a room. They are commonly used in bathrooms, kitchens, utility rooms and other areas where moisture, odours or poor airflow can build up.

  • What extractor fan do I need for a bathroom?

    The right bathroom extractor fan depends on the room size, installation location, duct route and control type required. Timer, humidity and low-carbon options are available depending on the project.

  • Can extractor fans help with condensation?

    Yes, extractor fans can help reduce condensation by removing humid air from wet rooms. However, condensation can also be affected by insulation, heating, airflow and overall ventilation.

  • What is a D-MEV fan?

    A D-MEV fan is a decentralised mechanical extract ventilation fan. It usually runs continuously at a low rate, with boost options when more extraction is needed.

  • What is the difference between an extractor fan and an inline fan?

    A standard extractor fan is usually mounted on a wall, window or ceiling. An inline fan is installed within the duct run, often in a loft or ceiling void, and can be useful where a longer duct route is needed.
