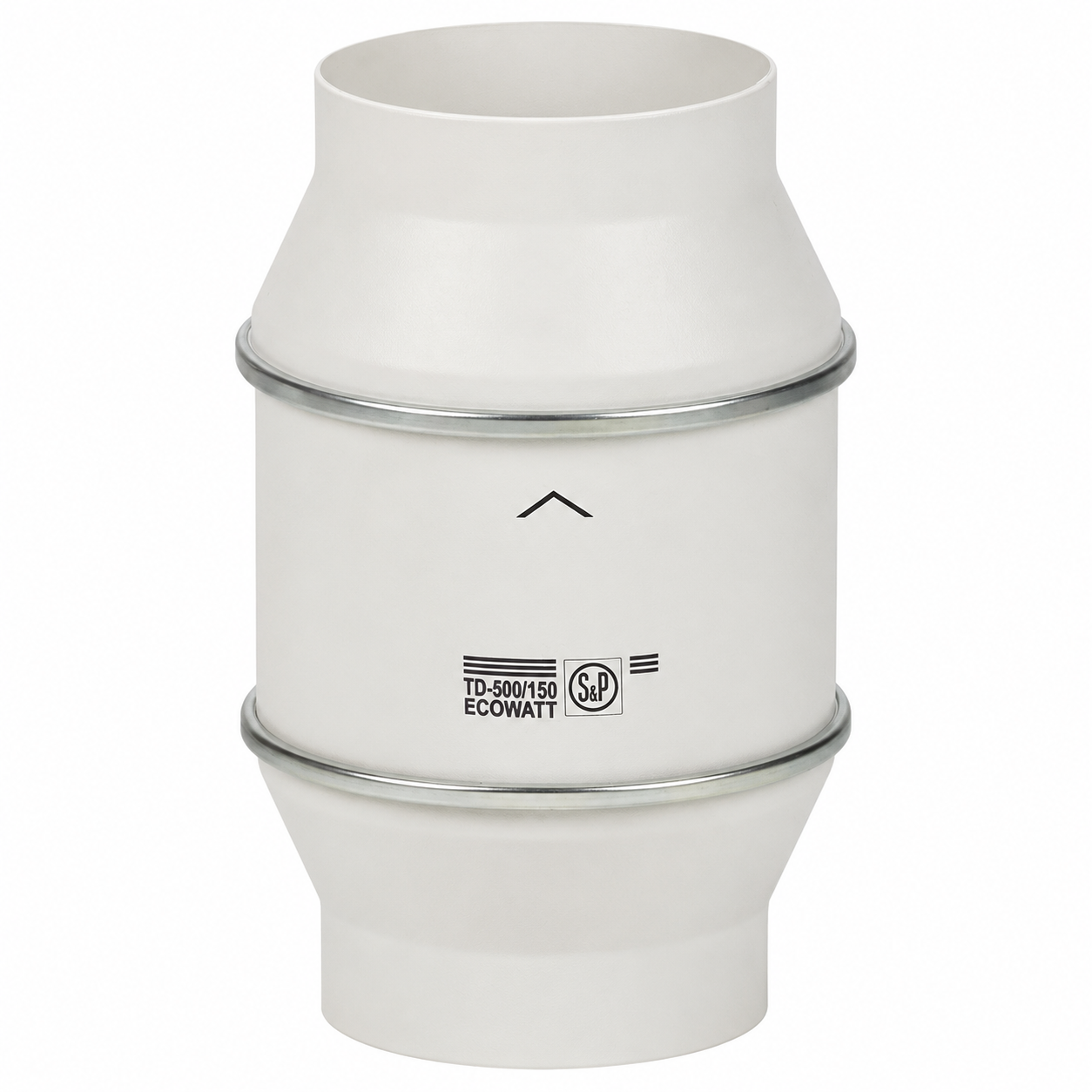

S&P TD-500/150-3V Standard In-Line Fan - Rated @155.5l/s 3 speed

S&P TD-500/150-3V Standard In-Line Fan - Rated @155.5l/s 3 speed

SKU : TD-500/150

Overview

The S&P TD-500/150-3V Standard In-Line Fan is a compact mixed-flow duct fan designed for use with 150mm circular ducting in residential, commercial and light industrial ventilation systems. Its low-profile construction makes it suitable for installation within ceiling voids and other areas where available space is limited.
£140.52 GBP Excl. VAT: £117.10 GBP

Out of Stock
  • For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.

Download Files

View full details

Description

Product Part Number

TD-500/150

Description

The S&P TD-500/150-3V Standard In-Line Fan is a compact mixed-flow duct fan designed for use with 150mm circular ducting in residential, commercial and light industrial ventilation systems. Its low-profile construction makes it suitable for installation within ceiling voids and other areas where available space is limited.

The three-speed motor provides airflow rates of 390m³/h, 470m³/h and 560m³/h, allowing the fan’s performance to be selected according to the ventilation requirements of the installation. At maximum speed, it delivers approximately 155.6l/s. The fan can be connected directly to a compatible three-speed switch or used with an appropriate voltage speed controller for further airflow adjustment.

Manufactured with a reinforced polypropylene casing and an ABS mixed-flow impeller, the TD-500/150-3V provides a durable yet lightweight ventilation solution. Its removable motor and impeller assembly allows maintenance to be completed without dismantling the adjoining ductwork, helping simplify installation and servicing.

Technical Specification

Specification Details
Manufacturer Soler & Palau (S&P)
Model TD-500/150-3V
Manufacturer reference 5211301100
Fan type In-line mixed-flow duct fan
Nominal duct diameter 150mm
Number of speeds 3
Maximum airflow – high speed 560m³/h / 155.6l/s
Maximum airflow – medium speed 470m³/h / 130.6l/s
Maximum airflow – low speed 390m³/h / 108.3l/s
Motor speed – high 2,590rpm
Motor speed – medium 2,150rpm
Motor speed – low 1,820rpm
Maximum absorbed power – high 53W
Maximum absorbed power – medium 44W
Maximum absorbed power – low 41W
Maximum absorbed current – high 0.21A
Maximum absorbed current – medium 0.19A
Maximum absorbed current – low 0.18A
Sound pressure level – high 35dB(A) at 3 metres
Sound pressure level – medium 31dB(A) at 3 metres
Sound pressure level – low 26dB(A) at 3 metres
Electrical supply 230V, single phase, 50/60Hz
Operating air temperature −20°C to +60°C
Protection rating IP44
Electrical protection class Class II
Motor insulation class Class B
Motor bearings Ball bearings, greased for life
Motor protection Safety thermal overload protection
Casing material Reinforced polypropylene
Impeller material ABS
Speed control Direct three-speed connection; suitable for voltage speed control
Compatible controls COM-3 and INTER 4P
Compatible speed controllers RMB-1.5 and REB-1
Weight 2.7kg
Overall length 295mm
Maximum casing diameter 200mm
Connection spigot diameter 147mm, suitable for 150mm ducting
Mounting Integrated removable support bracket

Frequently Asked Questions

  • What is an extractor fan used for?

    An extractor fan removes humid, stale or polluted air from a room. They are commonly used in bathrooms, kitchens, utility rooms and other areas where moisture, odours or poor airflow can build up.

  • What extractor fan do I need for a bathroom?

    The right bathroom extractor fan depends on the room size, installation location, duct route and control type required. Timer, humidity and low-carbon options are available depending on the project.

  • Can extractor fans help with condensation?

    Yes, extractor fans can help reduce condensation by removing humid air from wet rooms. However, condensation can also be affected by insulation, heating, airflow and overall ventilation.

  • What is a D-MEV fan?

    A D-MEV fan is a decentralised mechanical extract ventilation fan. It usually runs continuously at a low rate, with boost options when more extraction is needed.

  • What is the difference between an extractor fan and an inline fan?

    A standard extractor fan is usually mounted on a wall, window or ceiling. An inline fan is installed within the duct run, often in a loft or ceiling void, and can be useful where a longer duct route is needed.
