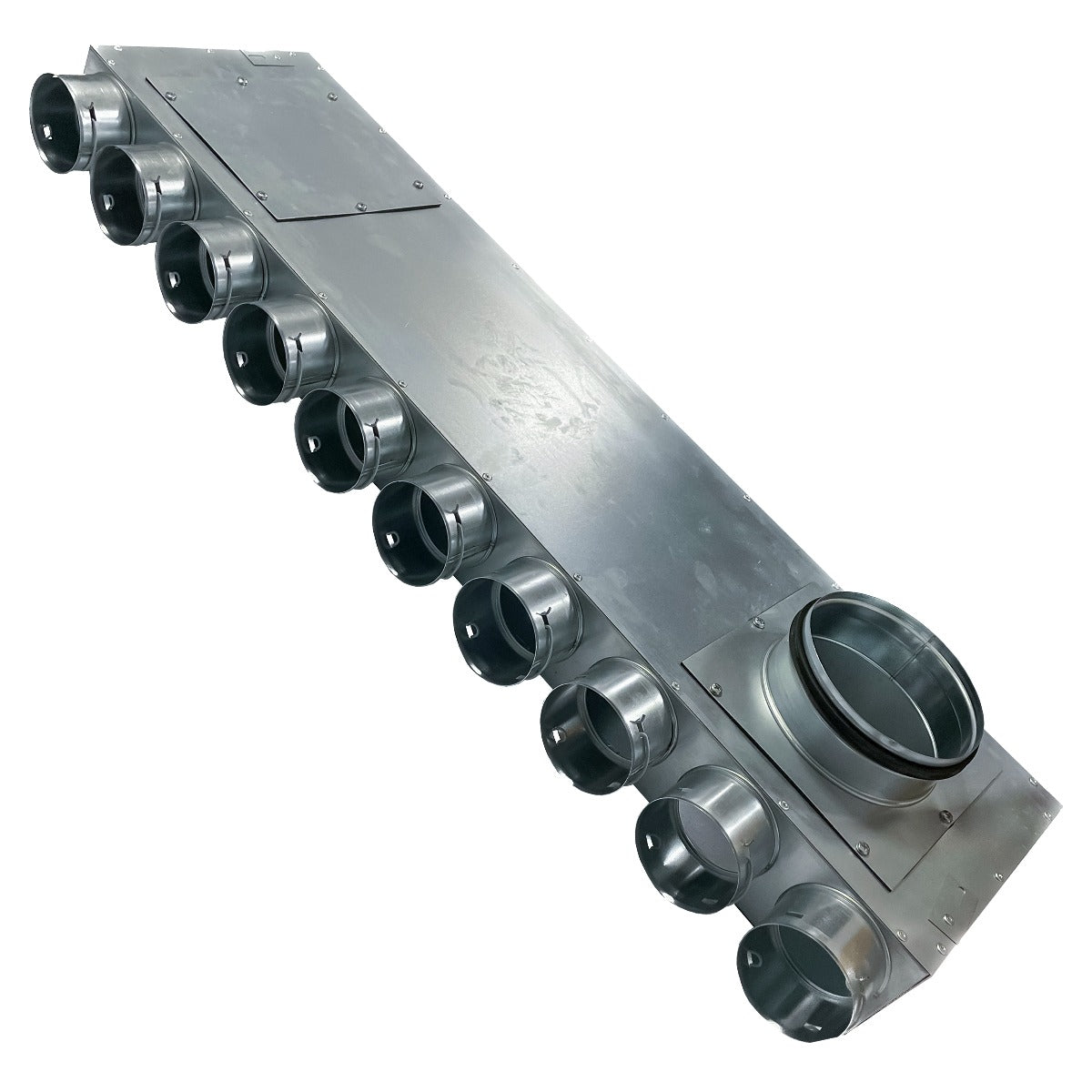

Quiet-Vent 75mm 10 Point Adjustable Top Entry Distribution box 150mm spigot

Quiet-Vent 75mm 10 Point Adjustable Top Entry Distribution box 150mm spigot

SKU : QV75-10150MTE

Overview

The Quiet-Vent 75mm 10 Point Adjustable Top Entry Distribution Box is designed for flexible ventilation installations. With a 150mm spigot, it provides efficient airflow distribution. Ideal for ceiling or floor installations, this distribution box ensures a secure and airtight connection when used with the appropriate sealing rings and blanking caps for unused vents.
£78.23 GBP Excl. VAT: £65.19 GBP

In Stock
  • For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
View full details

Description

Quiet-Vent 75mm 10 Point Adjustable Top Entry Distribution Box 150mm Spigot

Product Part Number

Quiet-Vent 75mm 10 Point Adjustable Top Entry Distribution Box - QV75-10150MTE

Product Overview

The Quiet-Vent 75mm 10 Point Adjustable Top Entry Distribution Box is designed for flexible ventilation installations. With a 150mm spigot, it provides efficient airflow distribution. Ideal for ceiling or floor installations, this distribution box ensures a secure and airtight connection when used with the appropriate sealing rings and blanking caps for unused vents.

Key Features

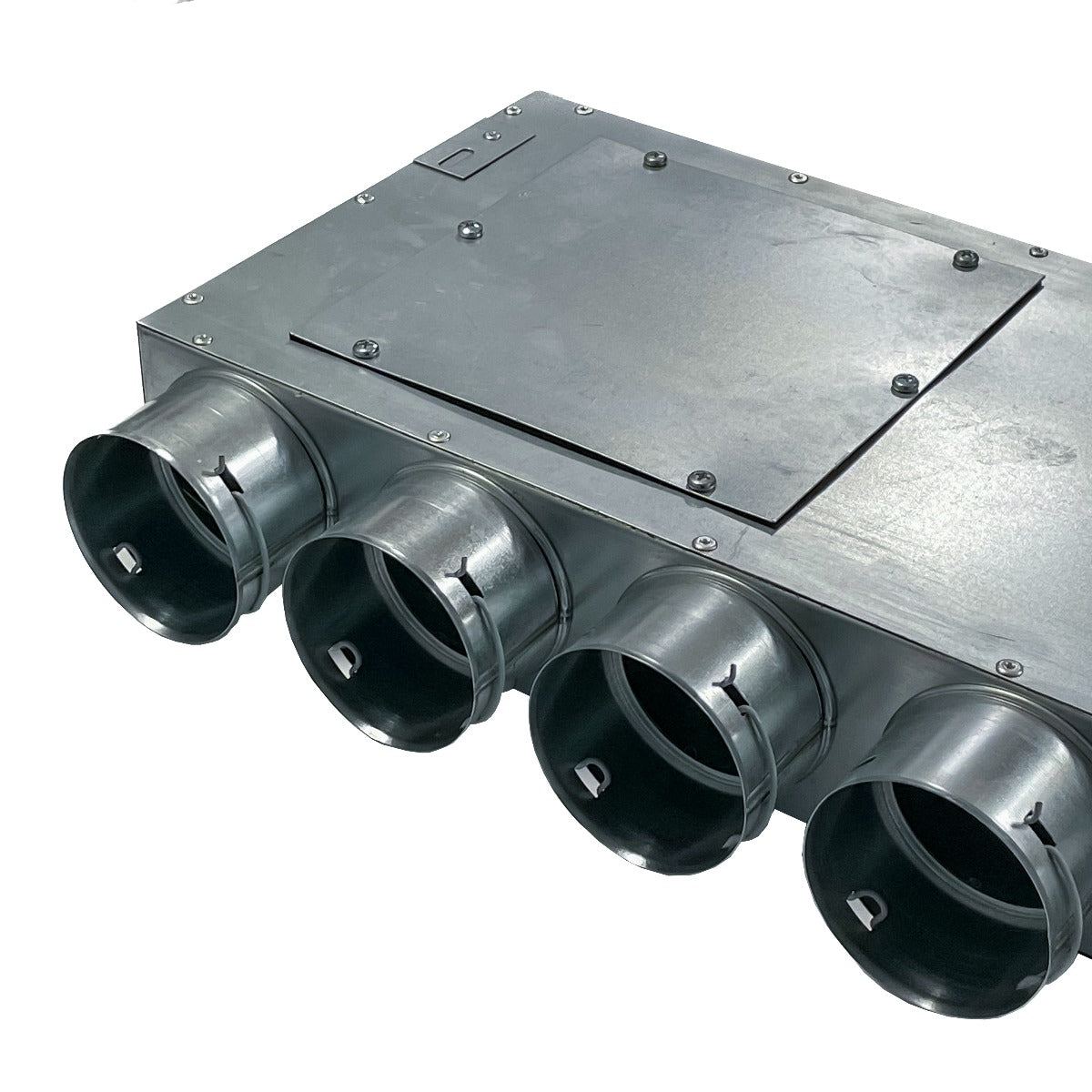

10 Adjustable Points – Provides flexibility for various ductwork connections

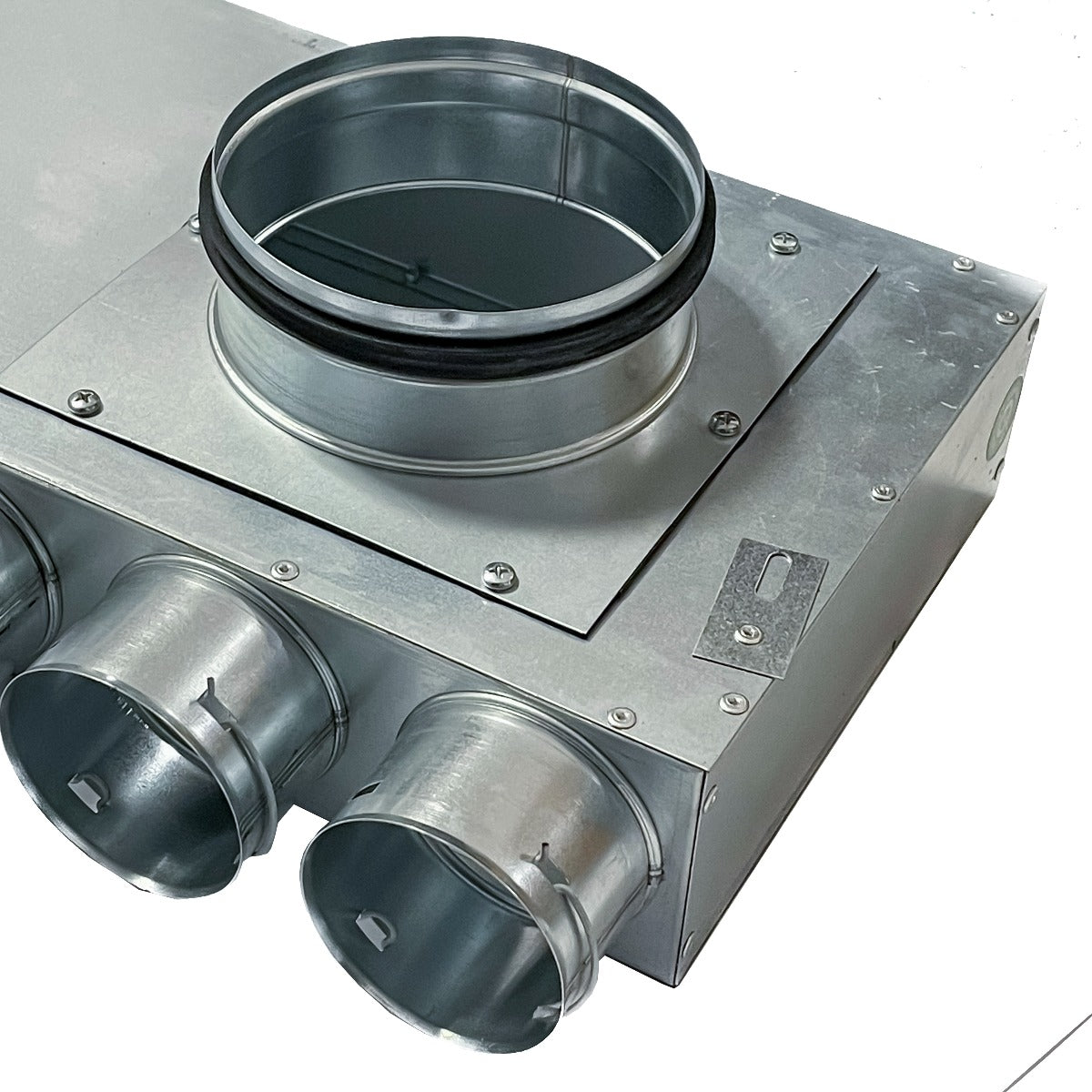

150mm Spigot – Compatible with systems requiring a 150mm spigot connection

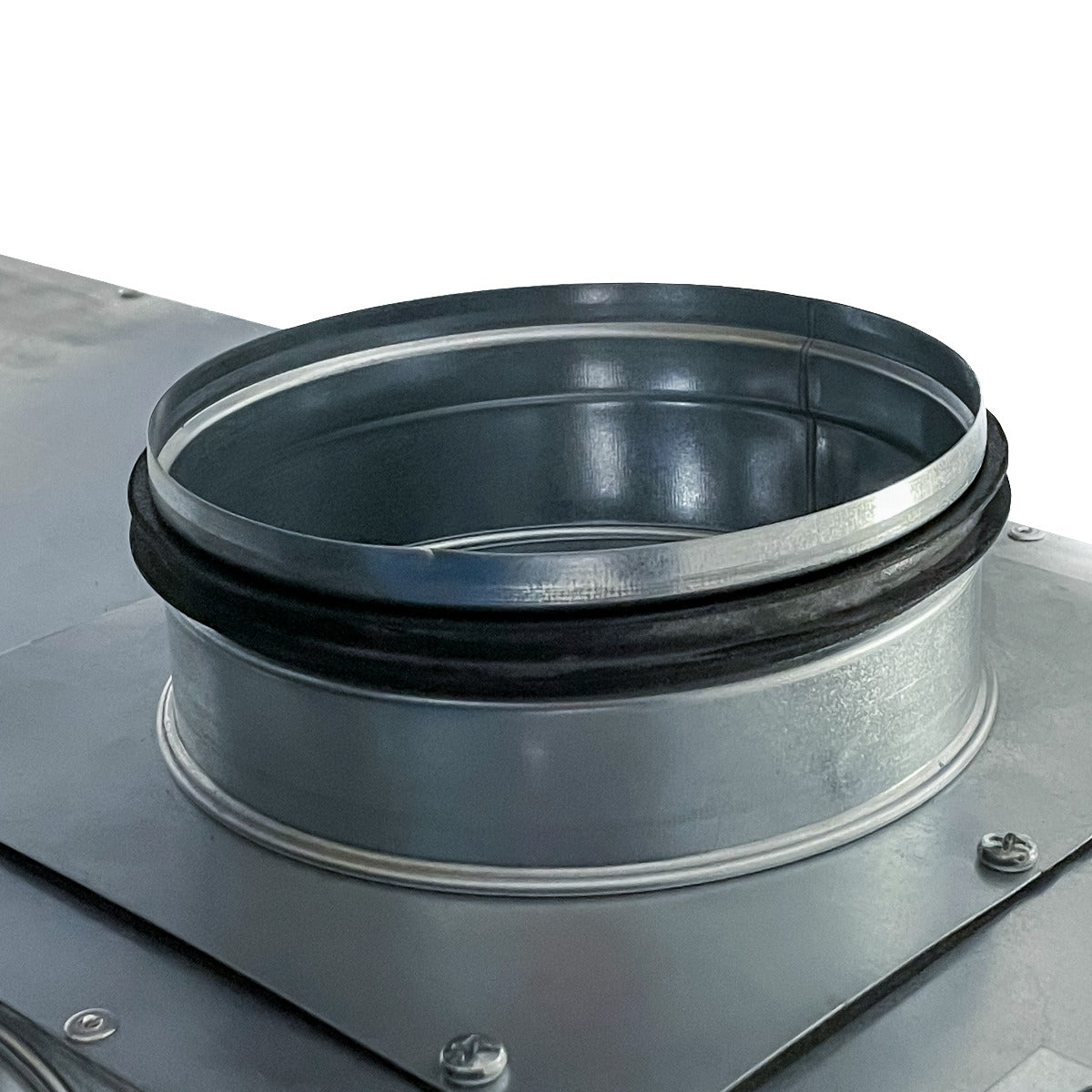

Sealing Rings Required – Ensures an airtight seal when used with the correct sealing rings
3 x Blanking Caps – All unused vents must be sealed with blanking caps

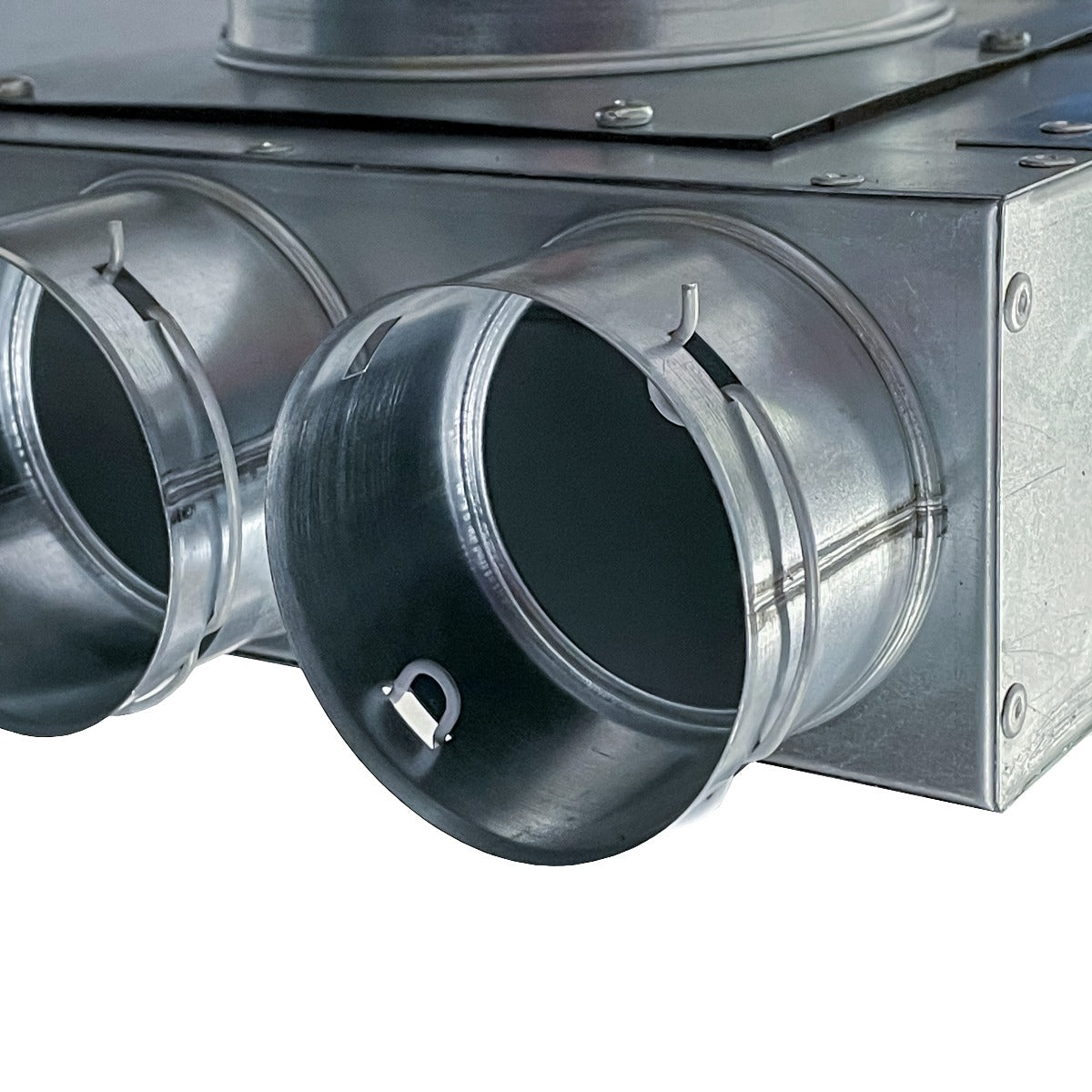

Flexible Installation – Secure the distribution box to the ceiling or floor, and easily engage the clips with radial pipe

Dimensions

  • Length (L): 1000mm
  • Width (W): 250mm
  • Height (H): 90mm

Installation & Maintenance

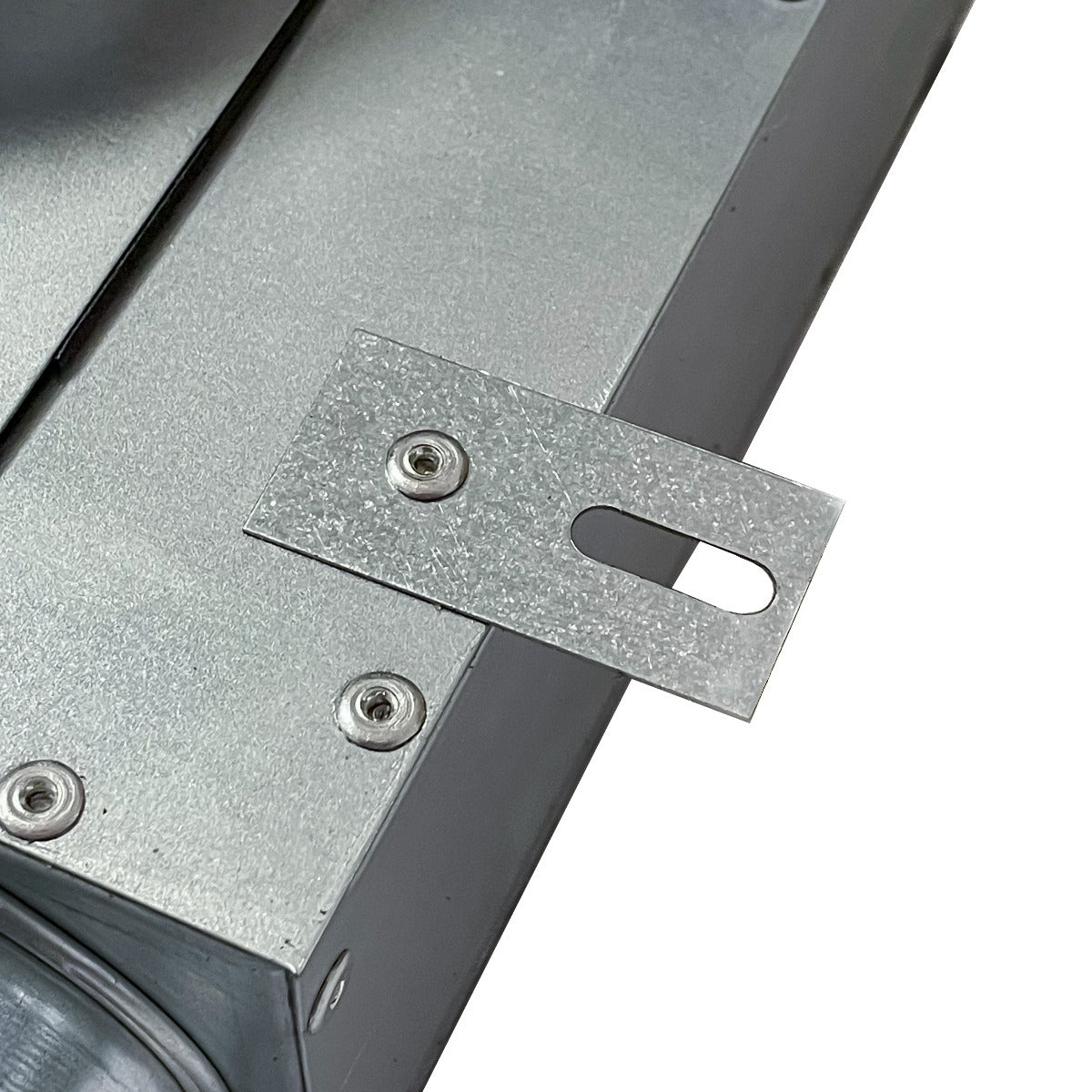

  • Installation: Secure the distribution box to the ceiling or floor. Insert the radial pipe until the clips engage with the pipe, ensuring a secure fit.
  • Sealing: Sealing rings are required for proper installation, and unused vents should be covered with blanking caps.

Frequently Asked Questions

  • What is semi rigid radial ductwork?

    Semi rigid radial ductwork is a flexible but structured ducting system used to move air between a ventilation unit and individual rooms. It is commonly used in MVHR, MEV and other domestic ventilation systems.

  • What is radial ductwork used for?

    Radial ductwork is used to create individual duct runs from a manifold or distribution box to different rooms. This can help simplify the duct layout and support balanced airflow across the property.

  • What fittings are needed for semi rigid ductwork?

    A semi rigid ductwork system may require manifolds, plenums, connectors, bends, sealing rings, clips, blanking caps and other accessories depending on the layout and installation.
