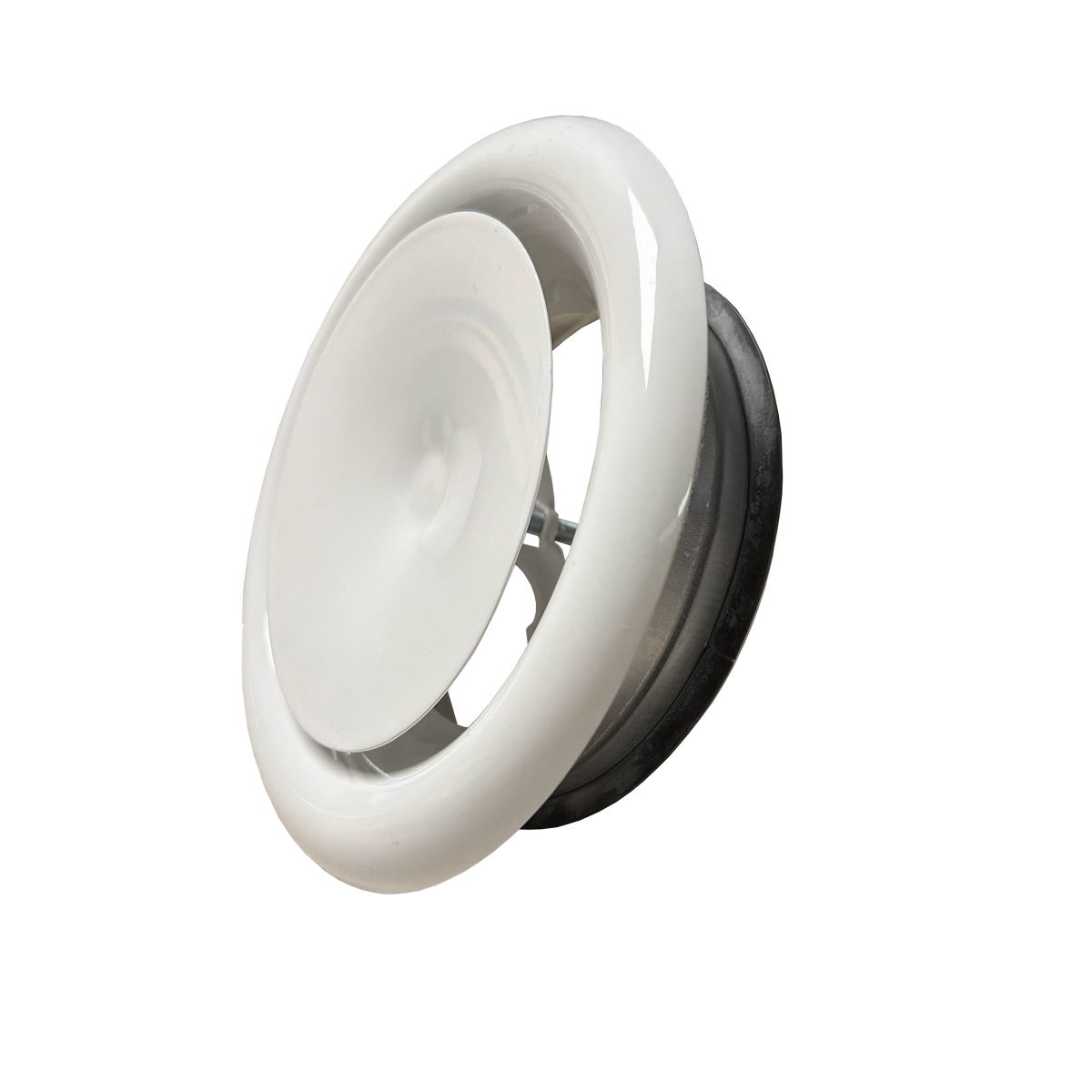

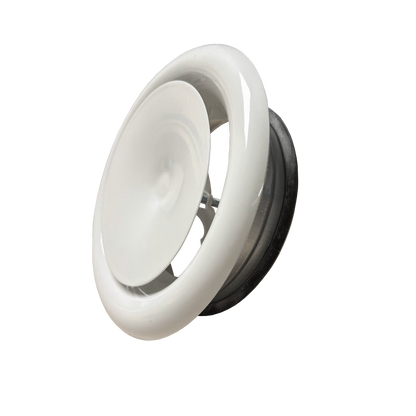

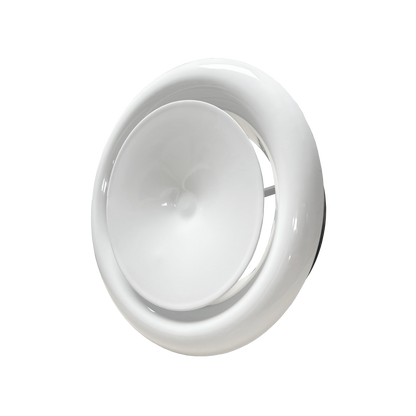

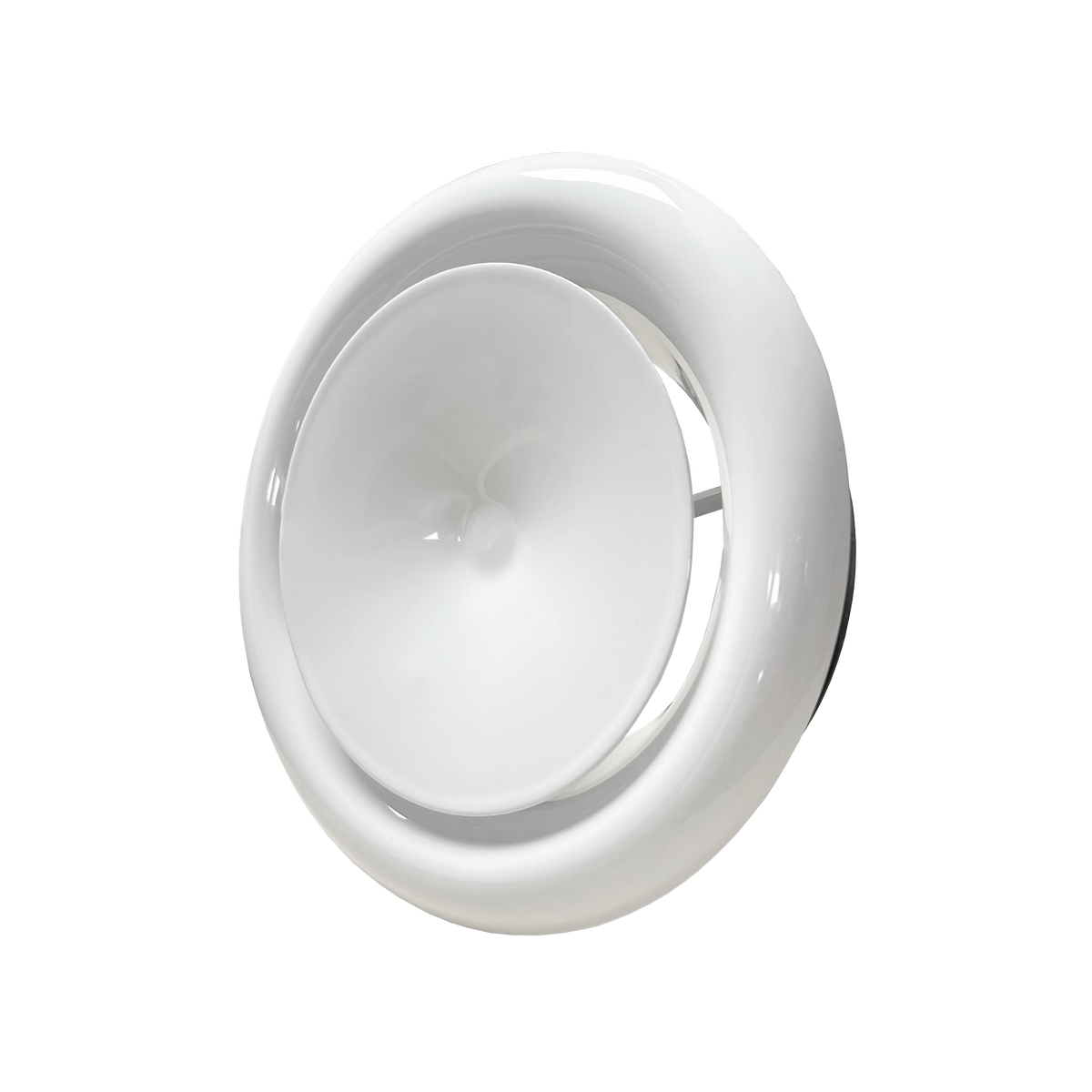

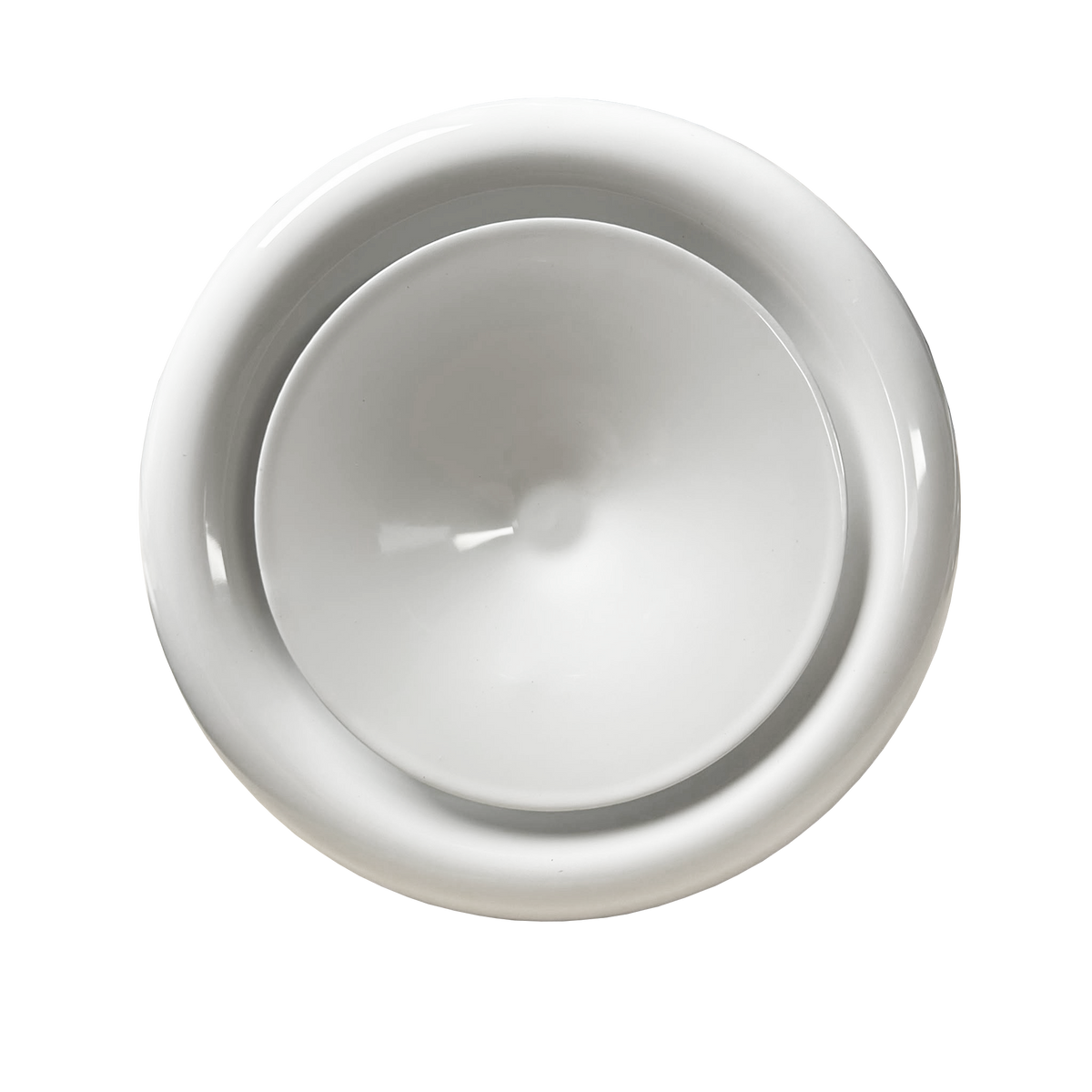

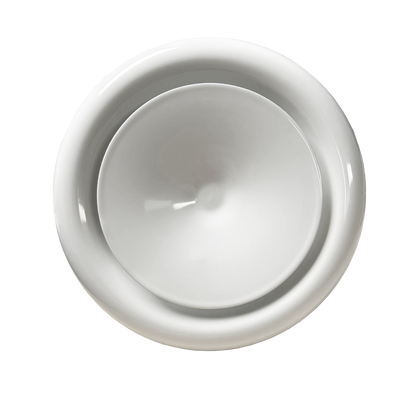

Quiet-Vent 125mm Metal Air Supply Valve - with Mounting Collar & sealing ring

SKU : QV-125-MSVS-9016

Overview

The Quiet-Vent 125mm Metal Air Supply Valve is a durable and discreet terminal designed for introducing fresh air into domestic and light commercial ventilation systems. Its adjustable central disc allows the airflow opening to be regulated during system commissioning and balancing.

£3.73 GBP Excl. VAT: £3.11 GBP

In Stock

For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.

Any questions? Reach out to our team

View full details

Description

Product Part Number

QV-125-MSVS-9016

Product Overview

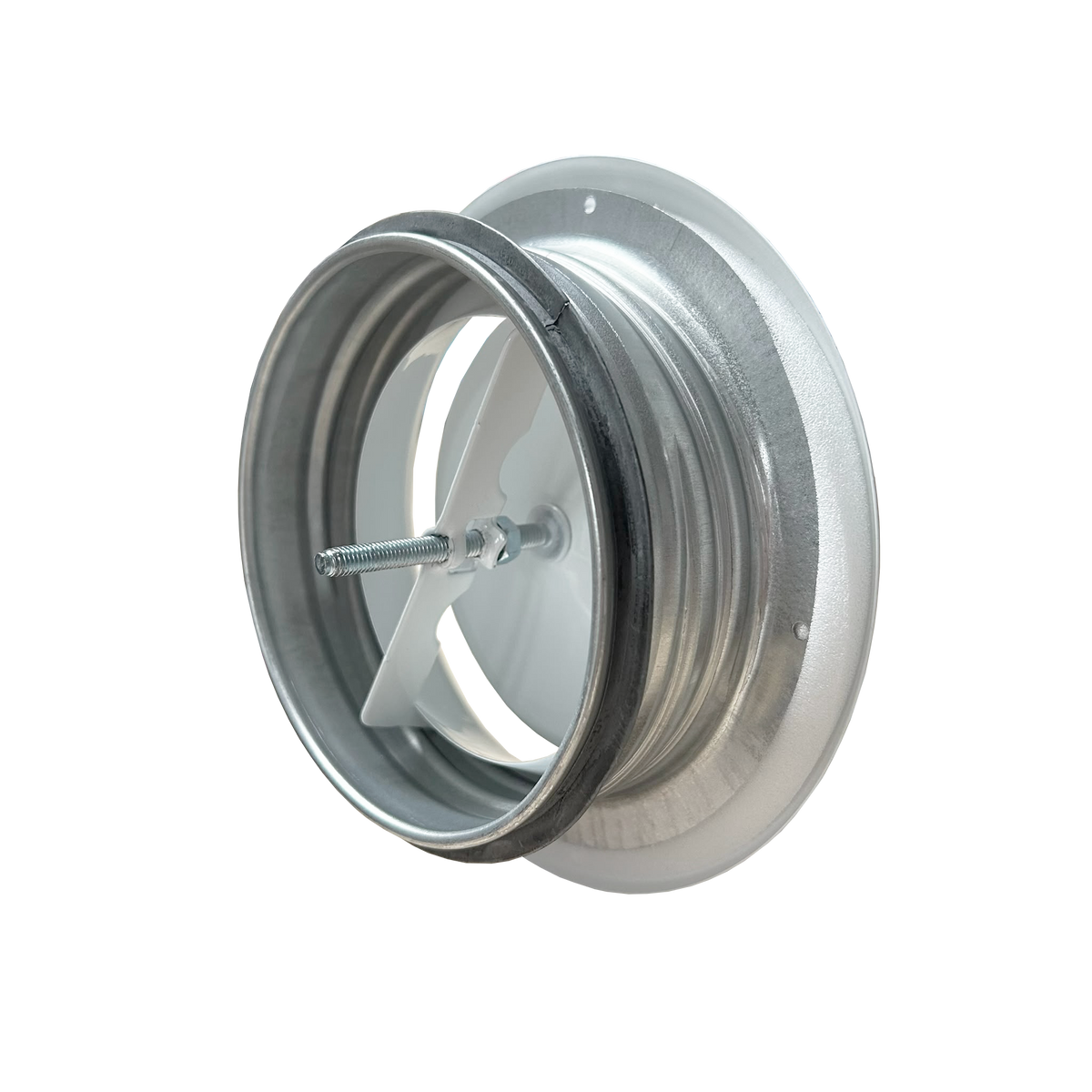

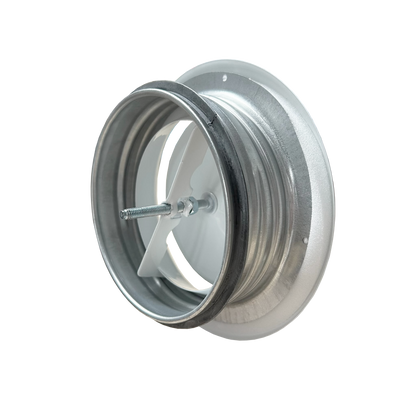

Manufactured from sheet steel with a white RAL 9016 finish, the valve provides a neat appearance for wall or ceiling installations. It is supplied with a metal mounting collar and sealing ring to provide a secure connection to circular ducting and help reduce unwanted air leakage around the connection.

Key Features

Designed for supply-air applications
125mm circular duct connection
Adjustable central disc for airflow regulation
Locking nut retains the selected airflow setting
Supplied with a metal mounting collar
Includes a sealing ring
Helps provide a secure and airtight duct connection
Durable sheet-steel construction
White RAL 9016 finish
Suitable for wall or ceiling installation
Smooth, easy-to-clean surface
Suitable for domestic and light commercial ventilation systems

Technical Specification

Specification	Details
Product code	QV-125-MSVS-9016
Product type	Adjustable metal air supply valve
Application	Supply ventilation systems
Nominal connection size	125mm
Material	Sheet steel
Finish	White coated finish
Colour	RAL 9016
Airflow adjustment	Rotating central control disc
Setting retention	Locking nut
Installation	Wall or ceiling
Duct connection	Circular
Mounting collar	Included
Sealing ring	Included
Sealing-ring material	Cellular plastic
Maintenance	Smooth, wipe-clean surface
Suitable systems	Domestic and light commercial ventilation systems

Frequently Asked Questions

What are internal air valves used for?

Internal air valves are used as the room-side ventilation terminal in a property. They can supply fresh air into living spaces and bedrooms or extract stale air from wet rooms such as bathrooms, kitchens and utility rooms.
What is the difference between a supply valve and an extract valve?

A supply valve delivers fresh air into a room, while an extract valve removes stale or humid air from a room. The correct type depends on the room and the ventilation system design.
Are discreet ceiling air valves available?

Yes, discreet ceiling air valves are available for projects where a more minimal finish is preferred. These can be useful in modern interiors where the visible ventilation finish is important.
Do air valves need to be adjusted or balanced?

Yes, air valves may need to be adjusted during system commissioning to achieve the correct airflow rates, helping the ventilation system perform as intended.
Can internal air valves be adjusted after installation without removal?

Many ventilation valves allow airflow adjustment at the valve face or centre cone. The exact adjustment method depends on the valve model.
