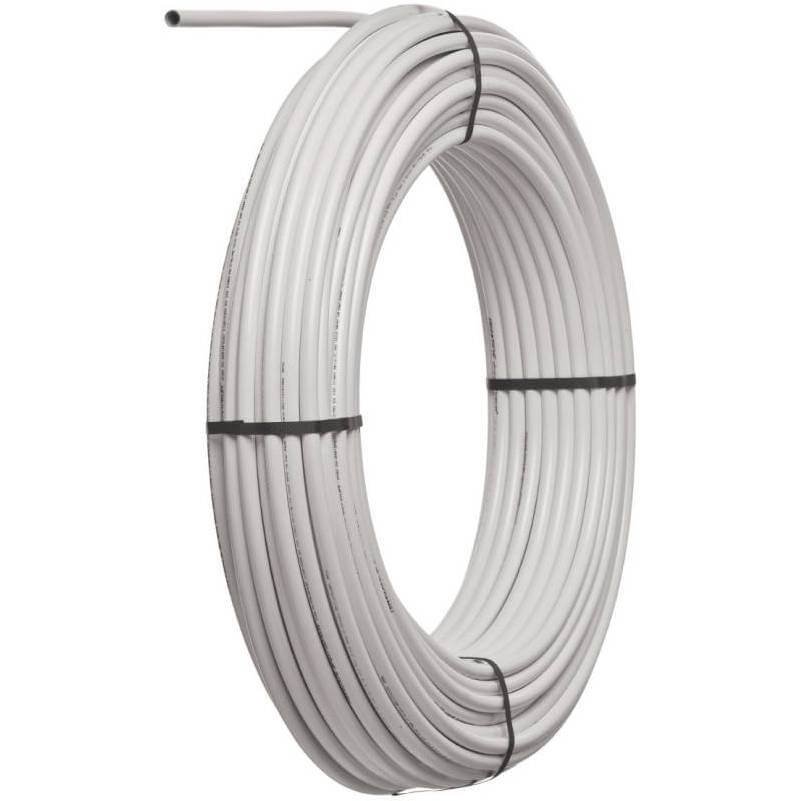

Profitherm AL multi layer pipe 16x2mm coils of 100 metres
Profitherm AL multi layer pipe 16x2mm coils of 100 metres
SKU : 73516400
Overview
The Profitherm AL multilayer pipe is a high-performance composite pipe designed for underfloor heating (UFH) and low-temperature heating applications. It features a five-layer construction combining the flexibility of polyethylene with the strength and stability of an aluminium core.In Stock
Couldn't load pickup availability
For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
Description
Product Part Number
73516400
Product Overview
The Profitherm AL multilayer pipe is a high-performance composite pipe designed for underfloor heating (UFH) and low-temperature heating applications. It features a five-layer construction combining the flexibility of polyethylene with the strength and stability of an aluminium core.
Manufactured in accordance with EN ISO 22391, both the inner and outer layers are produced from raised temperature resistant polyethylene (PE-RT), ensuring excellent thermal stability and long-term durability. The aluminium layer is butt-welded and fully encapsulated between adhesive layers, providing complete 100% oxygen impermeability and protecting heating system components from corrosion.
The aluminium core significantly reduces thermal expansion, allowing the pipe to retain its shape during installation and operation, while still remaining flexible enough for easy laying in UFH systems.
Key Features & Benefits
- Multilayer Construction: PE-RT / adhesive / aluminium / adhesive / PE-RT
- 100% Oxygen Barrier: Aluminium core prevents oxygen diffusion, eliminating corrosion risk
- Dimensional Stability: Aluminium layer reduces expansion and pipe memory
- Flexible & Easy to Install: Maintains shape while allowing smooth bending
- High Temperature Resistance: Suitable for underfloor heating and low-temperature heating systems
- Standardised Dimensions: Compatible with standard UFH fittings and manifolds
Technical Specification
| Feature | Specification |
|---|---|
| Pipe Type | Multilayer composite pipe |
| Construction | PE-RT / Adhesive / Aluminium (butt-welded) / Adhesive / PE-RT |
| Outside Diameter | 16 mm |
| Wall Thickness | 2 mm |
| Coil Length | 100 m |
| Material | PE-RT with aluminium core |
| Manufacturing Standard | EN ISO 22391 |
| Oxygen Resistance | 100% oxygen impermeable (aluminium core) |
| Maximum Operating Temperature | 70 °C |
| Maximum Operating Pressure | 6 bar |
| Application | Underfloor heating and low-temperature heating systems |
