Panasonic Aquarea Air Smart fan coil wall-mounted
Panasonic Aquarea Air Smart fan coil wall-mounted
SKU : P-FMM10DC-QNE
Overview
The Aquarea Air Smart fan coil delivers both heating and cooling in a slim, compact unit. When paired with an Aquarea Heat Pump, it ensures maximum energy efficiency and comfort.In Stock
Couldn't load pickup availability
For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
Description
Product Part Number

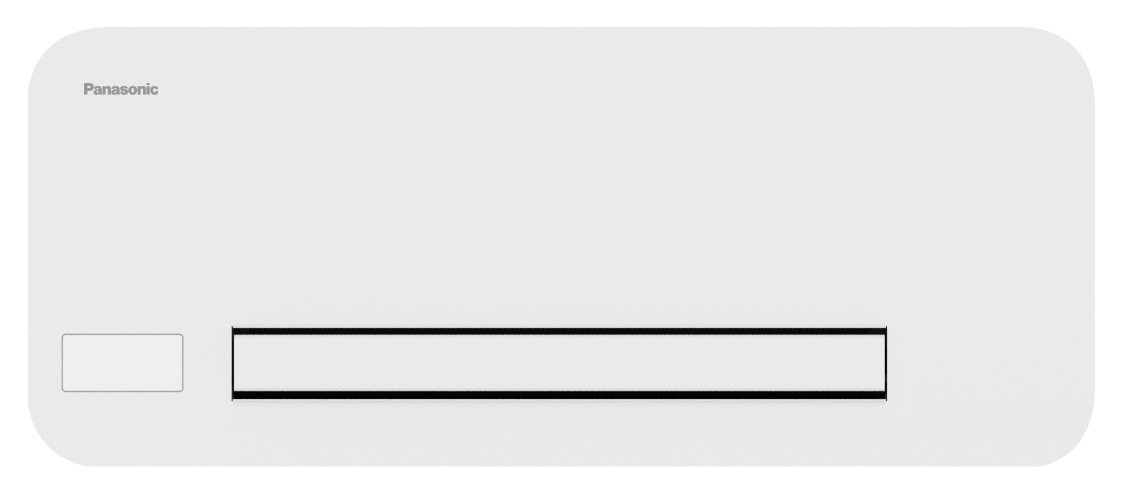

Aquarea Air Smart Fan Coil 1.45kW heat 1.24kW Cool - P-FMM10DC-QNE

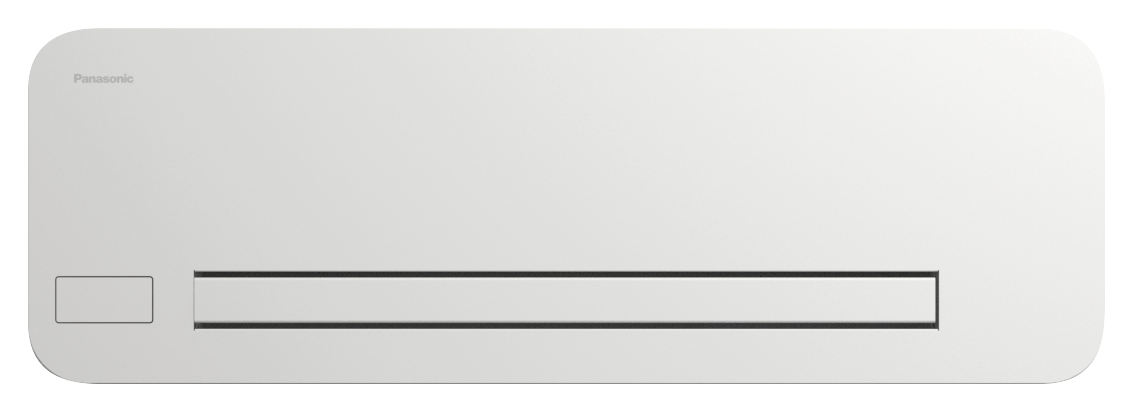

Aquarea Air Smart Fan Coil 1.93kW heat 1.61kW Cool - P-FMM15DC-QNE
Aquarea Air Smart Fan Coil 2.28kW heat 1.94kW Cool - P-FMM20DC-QNE

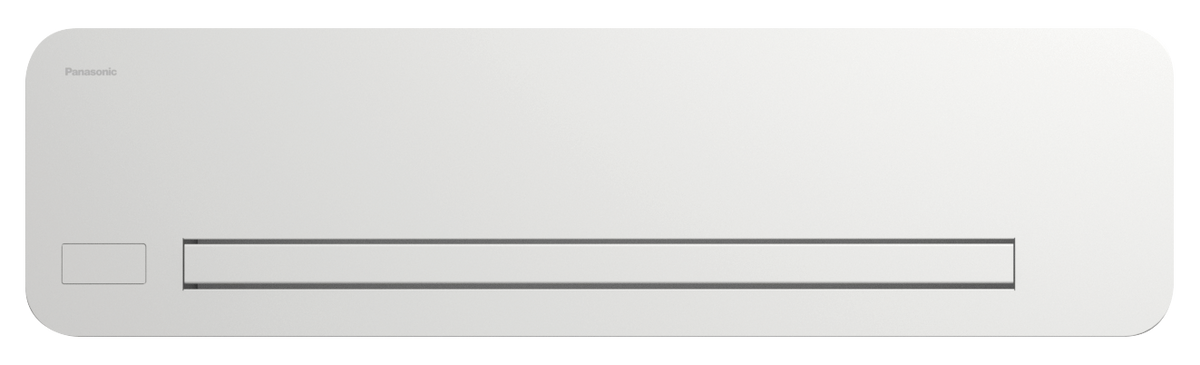

Aquarea Air Smart Fan Coil 4.44kW heat 3.94kW Cool - P-FMM40DC-QNE
Product Overview
The Aquarea Air Smart fan coil delivers both heating and cooling in a slim, compact unit. When paired with an Aquarea Heat Pump, it ensures maximum energy efficiency and comfort.
Key Features
- Ultra-slim chassis: only 128 mm
- Color: RAL 9003
- DC inverter technology for optimised comfort and energy savings
- Self-modulating air flow with PI logic for smooth operation
- Continuously modulated fan speed (not stepped) → reduced noise and draft
- Flexible installation: left or right water connections
- Control options: on-board, wall-mounted, or via PCB (0–10V analog input)
- Compatible with 2-way or 3-way valve accessories
Technical Specifications
| Dimension | P-FMM10 | P-FMM40 |
|---|---|---|
| Height | 335 mm | 335 mm |
| Width | 815 mm | 1,215 mm |
| Depth | 128 mm | 215 mm |
| Net weight | 14 kg | 24 kg |
Model Information
| Model | P-FMM10 | P-FMM40 |
|---|---|---|
| Cooling capacity (kW) | Min: 0.49 / Med: 0.88 / Max: 1.24 | Min: 1.32 / Med: 2.66 / Max: 3.94 |
| Sensible capacity (kW) | Min: 0.37 / Med: 0.70 / Max: 0.98 | Min: 1.08 / Med: 2.05 / Max: 2.92 |
| Water flow cooling (l/h) | Min: 84 / Med: 150.8 / Max: 212.4 | Min: 226.4 / Med: 455.3 / Max: 674.3 |
| Pressure drop cooling (kPa) | Min: 4.8 / Med: 10.5 / Max: 11.7 | Min: 1.8 / Med: 6.0 / Max: 12.1 |
| Heating capacity (kW) | Min: 0.54 / Med: 0.98 / Max: 1.45 | Min: 1.63 / Med: 3.04 / Max: 4.44 |
| Water flow heating (l/h) | Min: 97 / Med: 176.3 / Max: 264.5 | Min: 296.4 / Med: 547.0 / Max: 800.9 |
| Pressure drop heating (kPa) | Min: 5.1 / Med: 12.0 / Max: 16.3 | Min: 2.3 / Med: 6.9 / Max: 14.1 |
Sound Performance
| Level | P-FMM10 | P-FMM40 |
|---|---|---|
| Sound power dB(A) | Min: 35 / Med: 46 / Max: 53 | Min: 38 / Med: 48 / Max: 62 |
| Sound pressure dB(A) (4) | Min: 25 / Med: 33 / Max: 40 | Min: 27 / Med: 37 / Max: 51 |
Ventilation
| Air Flow | P-FMM10 | P-FMM40 |
|---|---|---|
| Min | 84 m³/h | 230 m³/h |
| Med | 155 m³/h | 480 m³/h |
| Max | 228 m³/h | 788 m³/h |
