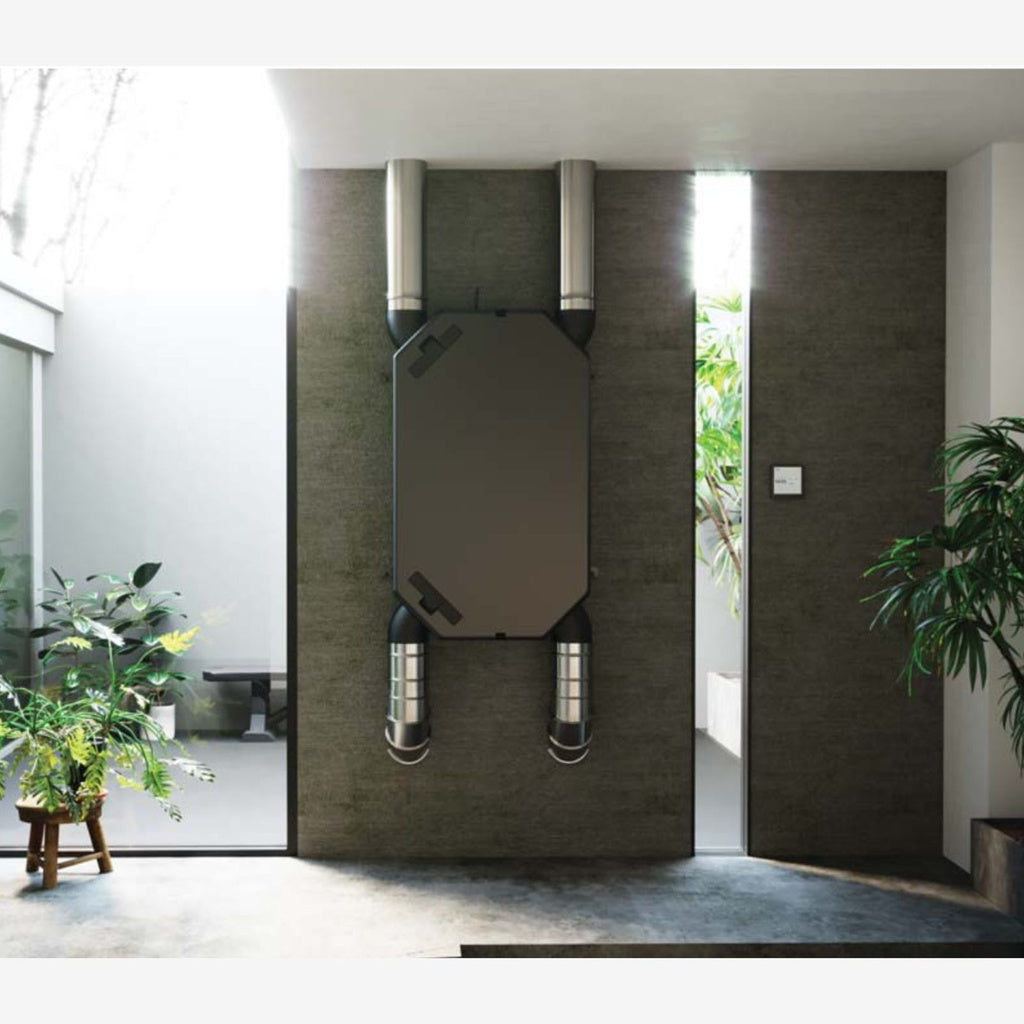

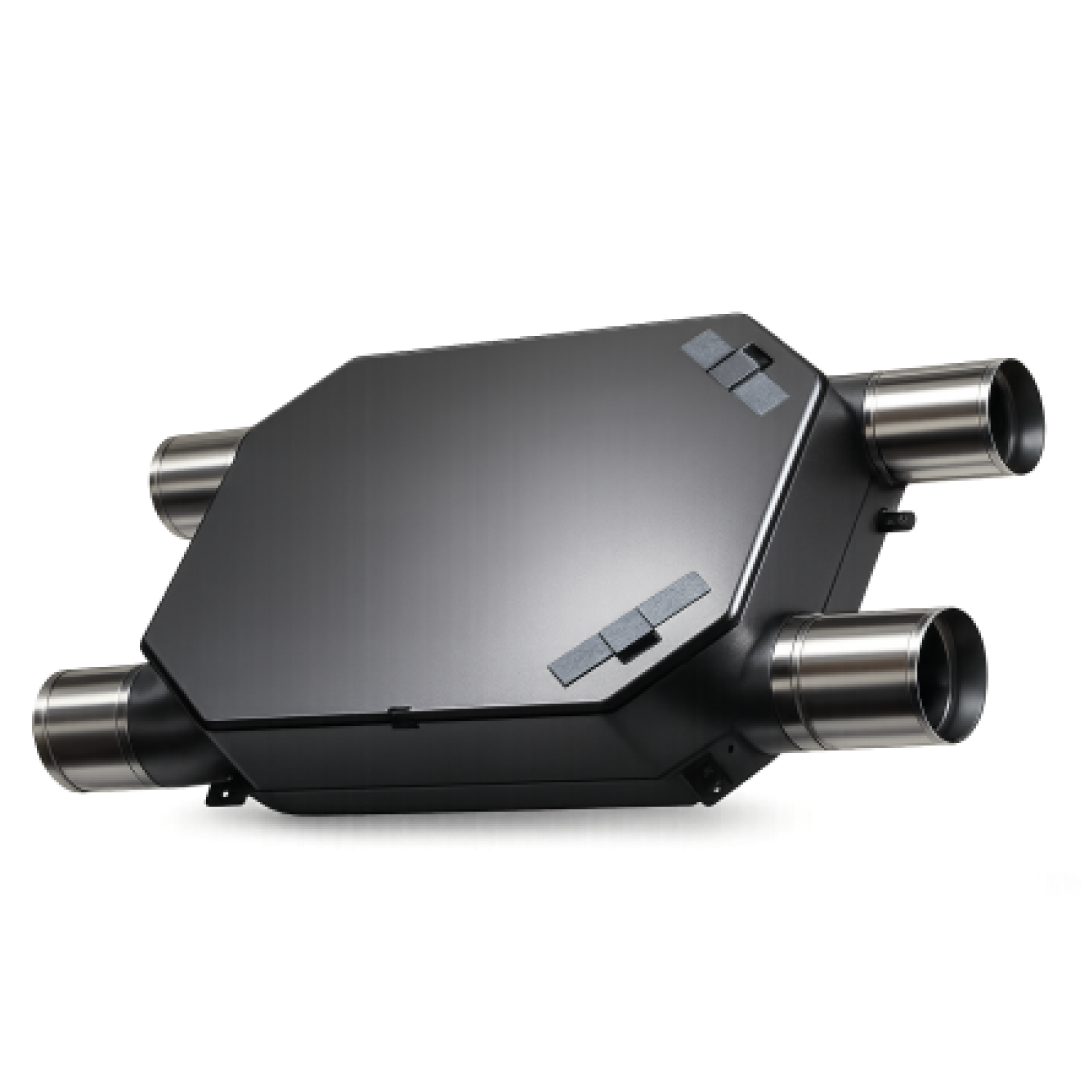

BSK Notus Slim ceiling mounted 400m3/hr unit with humidity sensor

BSK Notus Slim ceiling mounted 400m3/hr unit with humidity sensor

SKU : BSK-NOTUS-SLIM

Overview

The BSK Notus Slim heat recovery unit is a quality MVHR unit manufactured of the latest EPP construction and can installed either vertically on a wall or horizontally on a ceiling allowing for almost all site restrictions suitable for new houses up to 240m2 that has advanced Wi-Fi controllability and internal humidity sensor This unit has a (A+) energy rating
£848.66 GBP Excl. VAT: £707.22 GBP

In Stock
  • For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.

Download Files

View full details

Description

Product Part Number

BSK-NOTUS-SLIM

Product Overview

The BSK Notus Slim heat recovery unit is a quality MVHR unit manufactured of the latest EPP construction and can installed either vertically on a wall or horizontally on a ceiling allowing for almost all site restrictions suitable for new houses up to 240m2 that has advanced Wi-Fi controllability and internal humidity sensor

This unit has a (A+) energy rating

BPC Ventilation are the largest independent MVHR specialists and supply lifetime technical support on our top-quality systems.

Key Features

  • Interactive Wi-Fi Smart Control App
  • Internal humidity sensor
  • Optional touch screen controller
  • Wall or ceiling Orientation
  • Ultra-Light @ only 24Kg
  • Suitable for home sizes up to 240m2
  • Airflow rate @100Pa – 400 m3/h
  • EPP Super Quiet construction
  • Highly efficient EC fans
  • 100% summer bypass
  • Fully adjustable fan speeds
  • G4 filtration
  • ‘A+’ energy rating
  • High heat recovery efficiency of up to 90%.
  • Optional duct heaters

Controllability

The BSK Notus Slim has advanced controls that allow the user to easily adjust settings

BSK Notus Slim controllability

Wi-Fi Mobile App

The BSK Mobile App is available on iOS and Google Store with the following features

  • Monitor outdoor and indoor temperature and humidity
  • Change fan speeds
  • Control optional heaters
  • Schedule weekly and daily programs
  • Adjust all settings

BSK Notus touchscreen controller

Wall Touch screen controller (optional)

  • 4inch touchscreen
  • Full control of fan speeds
  • Temperature and humidity readings
  • Automatic air quality control with optional AQ sensor.
  • Extensive weekly schedule.
  • Automatic Boost modes

Automatic Boost modes

External Control

  • The BSK Notus have external connections allowing for hassle free setup
  • Ability to control via a web browser for remote monitoring and repair
  • Integration into a smart home management system. (BMS) via Modbus port
  • Expansion port for bespoke solutions
  • Optional wall controller
  • 0-volt dry boost connection
  • Optional Pre and Post heater connection

BMS Control

Implemented Modbus protocols enable simple connection into Building Management System as a result whole buildings engineering systems can be controlled at a single access point.

Connection and monitoring of multiple units by building managers can be enabled through the BSK Cloud Control Application

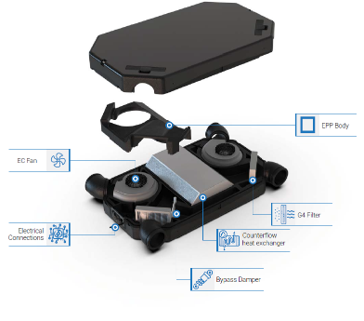

BSK Notus Slim construction

Construction

The BSK Notus is constructed of the latest EPP with a metal front cover

EPP (expanded polypropylene) with its lightweight, impact absorbing, and insulating properties make it a perfect body material for MVHR units

Motors

The fan motors are the latest backward curved low energy EC fans of (A) energy rating

Filtration

  • 2 x G4 filters are fitted to the unit that are easy to replace
  • Optional F7 to air supply

Summer By-Pass

The BSK range of units have a 100% summer by-Pass

If the indoor temperature Intake exceeds 25°C and the outdoor temperature is within comfort zones the summer by-pass is opened automatically to help provide a comfortable indoor temperature

Low Noise Levels

With airtight, aerodynamic and sound absorbing construction with perfectly balanced fans the noise levels are ultra quiet

Heat Exchanger

Highly efficient PVC counterflow heat exchanger with up to 90% heat recovery and an optional enthalpy heat exchanger is available

Frost Protection

Intelligent frost protection is standard on the BSK Notus units

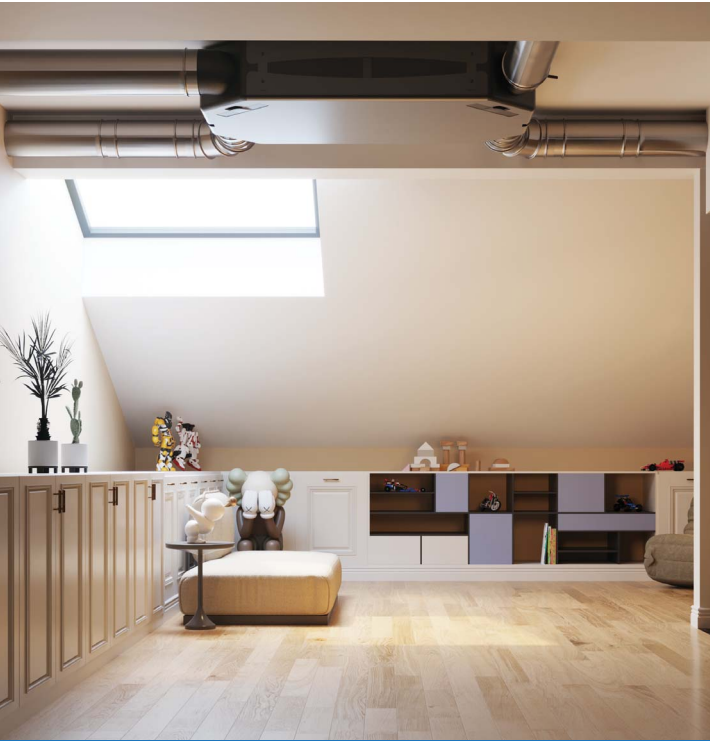

Orientation

The BSK Notus Slim can be wall mounted vertically or ceiling mounted with top or bottom Drain points

Mounting

The units are supplied with mounting brackets

Accessories

  • 1Gang Momentary Boost Switch
  • BSK NOTUS wall controller - black

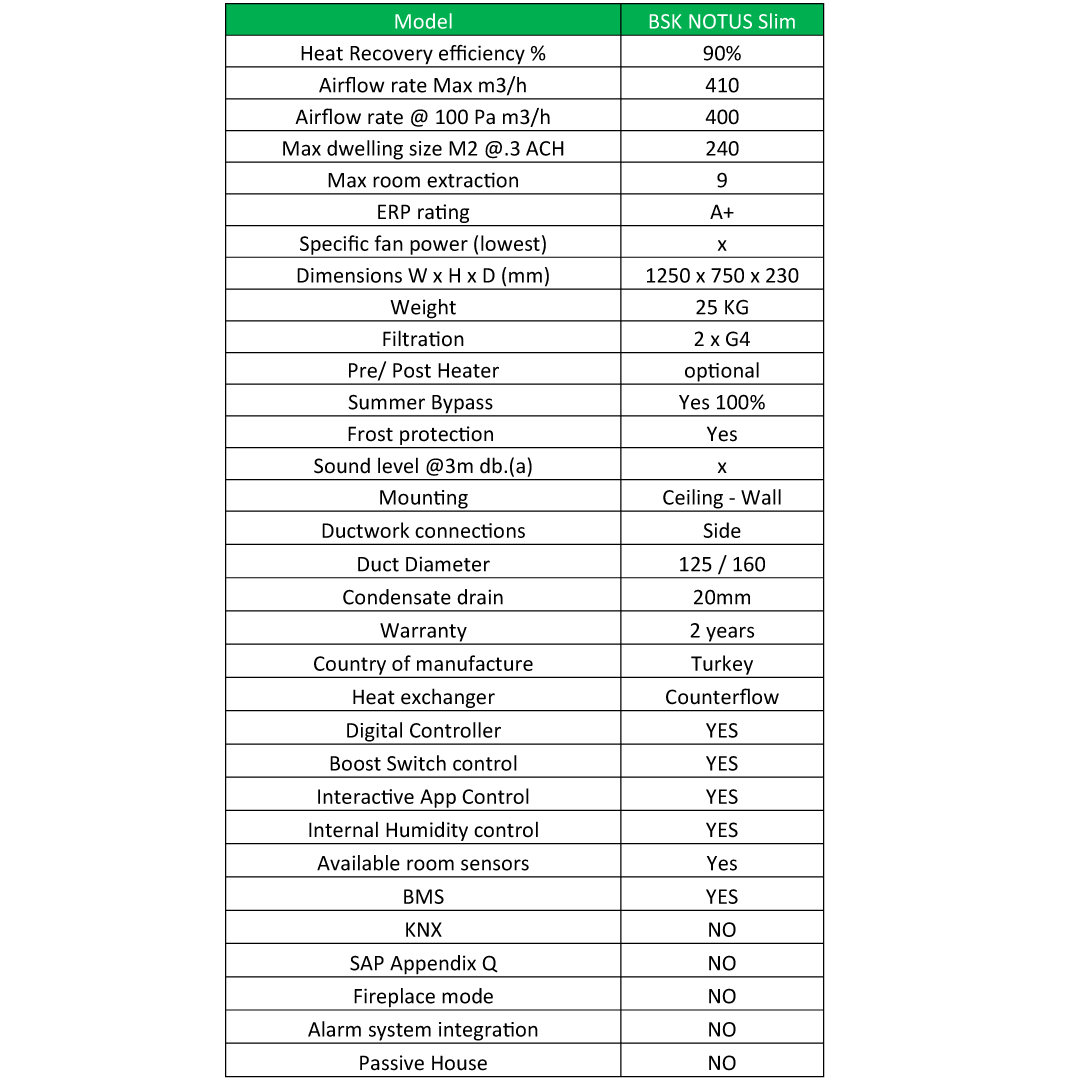

Technical Specification

BSK Notus Slim airflow

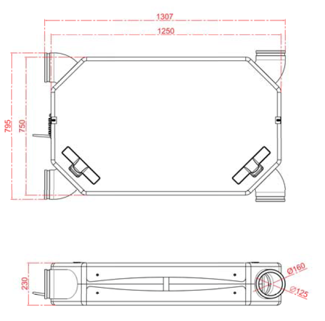

BSK Notus Slim dimensions

BSK Notus Slim performance

Frequently Asked Questions

  • What is an MVHR unit?

    An MVHR unit, or Mechanical Ventilation with Heat Recovery unit, is a ventilation system that extracts stale air from wet rooms while supplying fresh filtered air to habitable rooms. It recovers heat from the extracted air to help temper the incoming fresh air.

  • How do I choose the right MVHR unit?

    The right MVHR unit depends on the size of the property, number of rooms, required airflow rates, duct layout, installation location and project type. BPC Ventilation offers MVHR design support and technical advice to help ensure your system is correctly sized and suitable for your project.

  • How long does an MVHR system typically take to install?

    Installation time varies depending on the property size, ductwork layout and stage of construction. New-build installations are generally more straightforward than retrofits because duct routes can be planned before walls and ceilings are finished.

  • What size MVHR unit do I need for my home?

    The correct MVHR unit depends on the property size, required airflow rates, room layout and system resistance. BPC Ventilation offers a free design service to help select a suitable unit for your project.

  • How much does an MVHR system cost to buy and install?

    Costs vary depending on the MVHR unit, ductwork, controls and property layout. BPC Ventilation can provide a system quotation based on your plans, while installation costs should be obtained from your chosen installer.
