Airflow Airflex 10 Point Distribution Box 160 Spigot

Airflow Airflex 10 Point Distribution Box 160 Spigot

SKU : 90000266

Overview

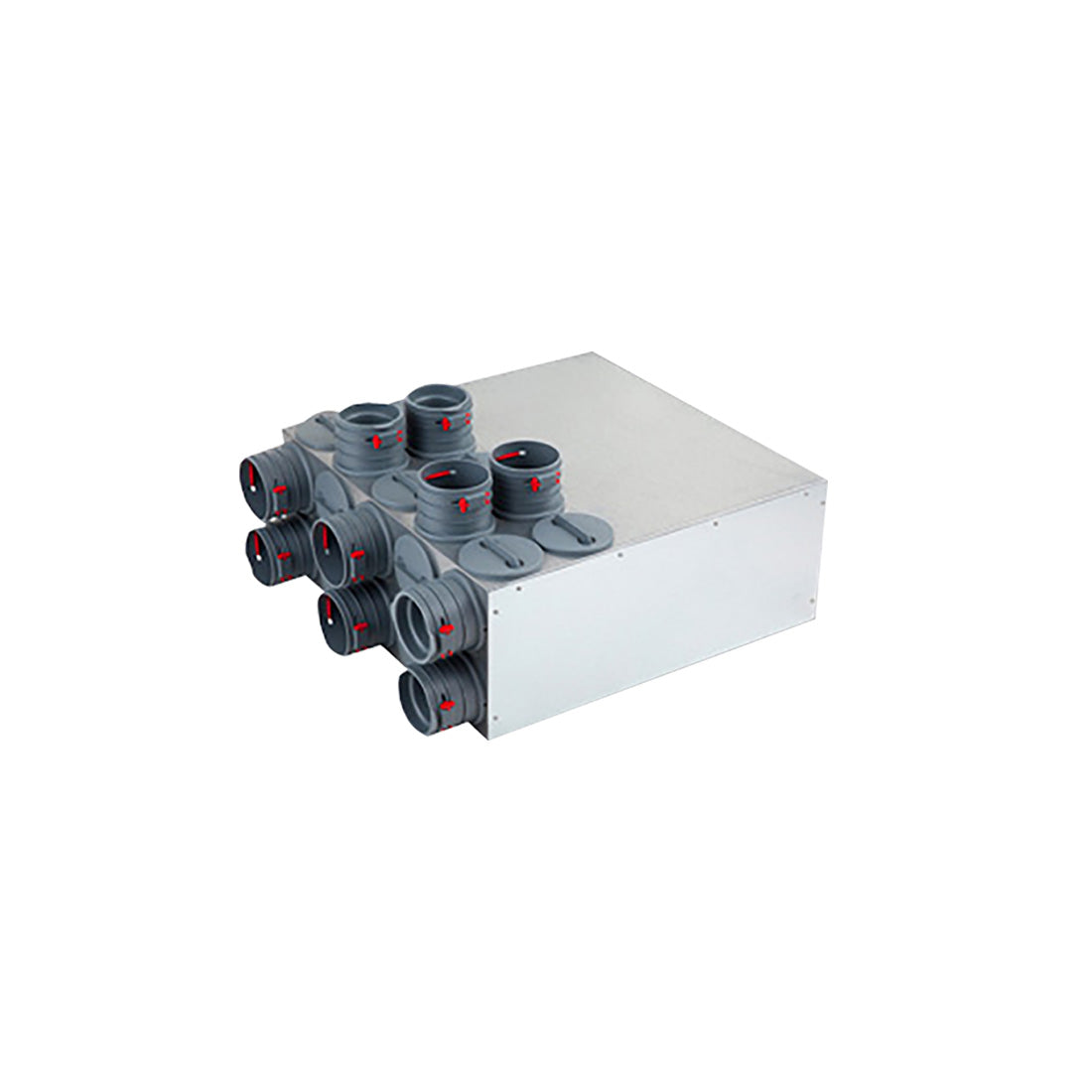

The Airflow 10-Point Distribution Box is a high-quality galvanised steel component designed for efficient ventilation systems. Featuring internal acoustic insulation, it ensures quieter operation while providing 10 connections for vertical or horizontal 75mm round pipes. The rear 160mm spigot makes this distribution box ideal for large-scale ventilation setups.
£285.61 GBP Excl. VAT: £238.01 GBP

In Stock
  • For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.

Download Files

View full details

Description

Airflow Airflex 10-Point Distribution Box 160 Spigot

Product Part Number: 90000266

The Airflow 10-Point Distribution Box is a high-quality galvanised steel component designed for efficient ventilation systems. Featuring internal acoustic insulation, it ensures quieter operation while providing 10 connections for vertical or horizontal 75mm round pipes. The rear 160mm spigot makes this distribution box ideal for large-scale ventilation setups.

Key Features

High-quality galvanised steel construction for durability
Internal acoustic insulation for reduced noise
Rear 160mm spigot for secure connection
10 vertical or horizontal 75mm round pipe connections for flexibility

Specifications

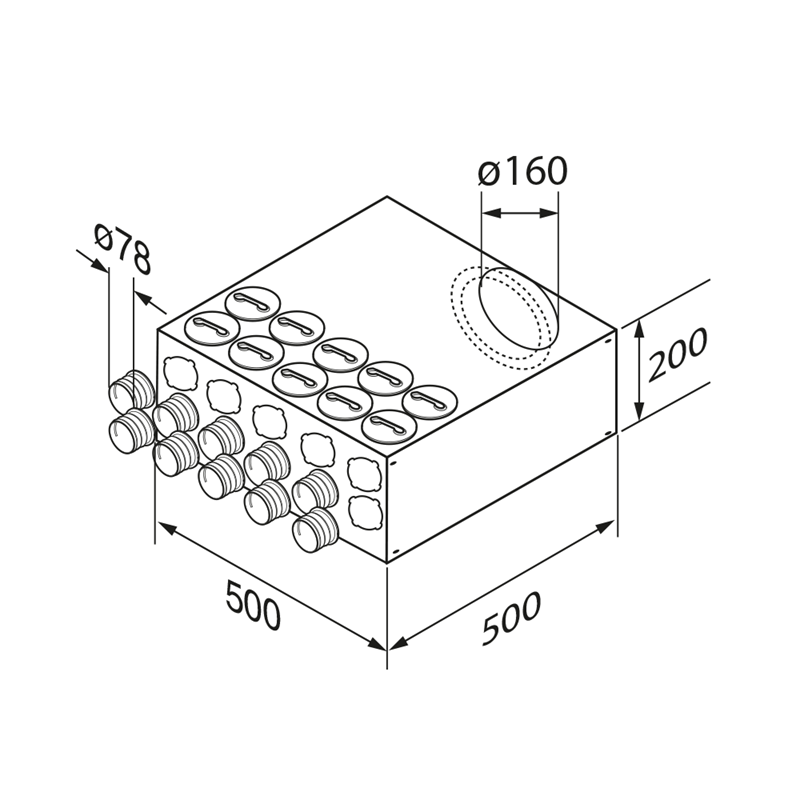

  • Dimensions:
    • Width: 500mm
    • Length: 500mm
    • Height: 200mm
  • Connections: 10 x 75mm round pipe connections
  • Spigot Size: 160mm

Video

Frequently Asked Questions

  • What is semi rigid radial ductwork?

    Semi rigid radial ductwork is a flexible but structured ducting system used to move air between a ventilation unit and individual rooms. It is commonly used in MVHR, MEV and other domestic ventilation systems.

  • What is radial ductwork used for?

    Radial ductwork is used to create individual duct runs from a manifold or distribution box to different rooms. This can help simplify the duct layout and support balanced airflow across the property.

  • What fittings are needed for semi rigid ductwork?

    A semi rigid ductwork system may require manifolds, plenums, connectors, bends, sealing rings, clips, blanking caps and other accessories depending on the layout and installation.
