Vent Axia Sentinel Kinetic FH Heat Recovery Right Hand Unit - 408167
Vent Axia Sentinel Kinetic FH Heat Recovery Right Hand Unit - 408167
SKU : 408167R
Overview
The Vent Axia Kinetic FH is an efficient Mechanical Ventilation with Heat Recovery (MVHR) unit designed to provide a high level of indoor air quality and comfort. With 90% heat recovery efficiency, this system delivers fresh, filtered air to your home while recovering heat from the stale air being extracted, making it an excellent choice for energy-efficient living. Ideal for homes up to 200m², this unit provides effective ventilation, reducing the need for additional heating.In Stock
Couldn't load pickup availability
For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
- Order before 5pm, Dispatched Tomorrow
Download Files
Description
Vent Axia Kinetic FH – MVHR System
Product Part Number:
- RHS - 208167
- LHS - 408169
💨 Description
The Vent Axia Kinetic FH is an efficient Mechanical Ventilation with Heat Recovery (MVHR) unit designed to provide a high level of indoor air quality and comfort. With 90% heat recovery efficiency, this system delivers fresh, filtered air to your home while recovering heat from the stale air being extracted, making it an excellent choice for energy-efficient living. Ideal for homes up to 200m², this unit provides effective ventilation, reducing the need for additional heating.
Featuring a digital controller, boost switch, and humidity control, the Kinetic FH is designed for easy use and installation, making it a perfect solution for maintaining a balanced ventilation system in new builds or major renovations.
🌟 Key Features:
- Heat Recovery Efficiency: 90% for energy-efficient air circulation.
- Airflow Rate: Max 340m³/h; 310m³/h at 100Pa – Ideal for homes up to 200m².

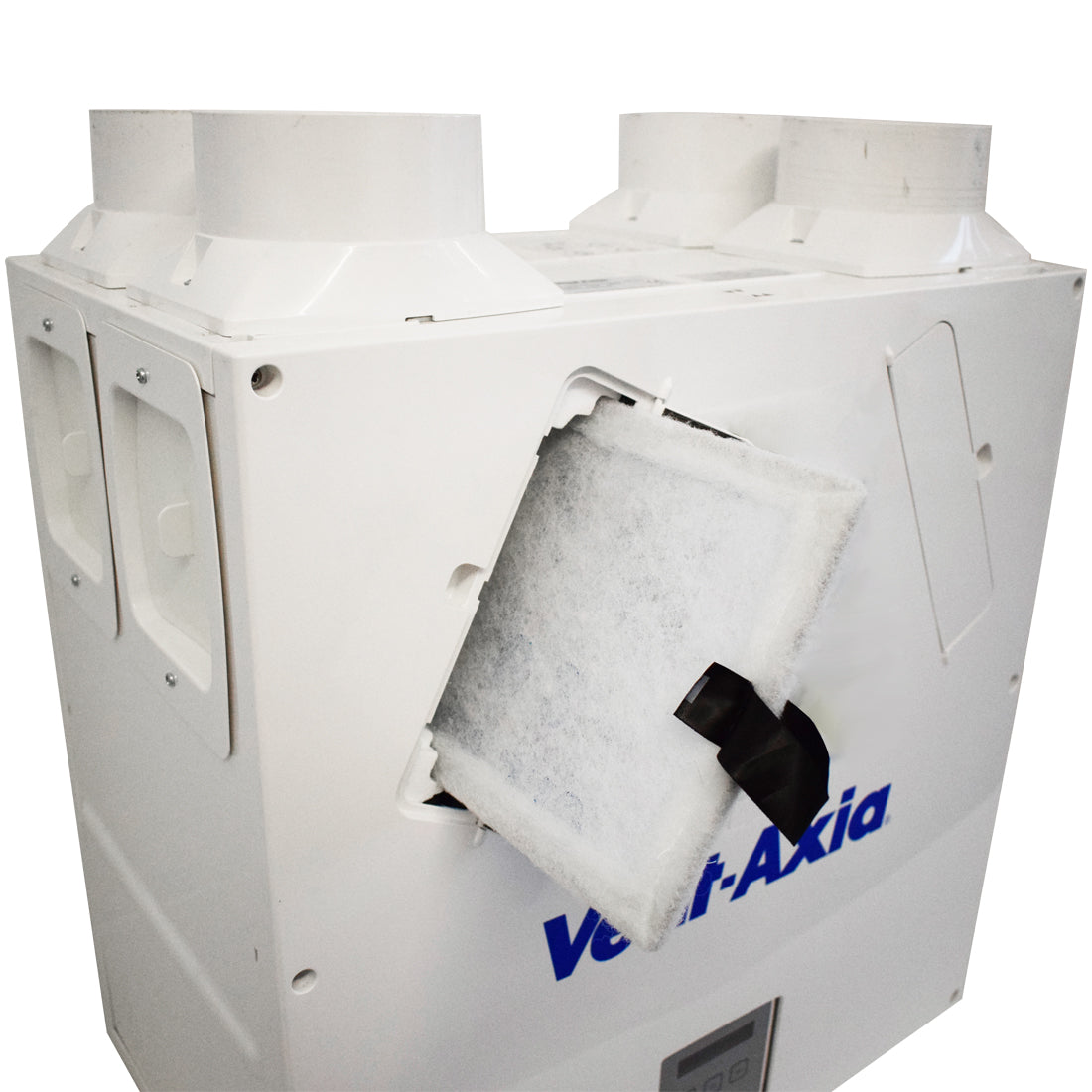

- Filtration: Comes with 2 x G4 filters, with an optional upgrade to 1 x M5 for improved filtration.
- Summer Bypass: Provides a mechanism to bypass heat recovery during warmer months.
- Frost Protection: Ensures reliable operation even in colder temperatures.
- Boost Switch Control: Convenient momentary boost switch for enhanced airflow.
- BMS Integration: Compatible with KNX BMS systems.
- Humidity Control: Includes both internal and optional external humidity sensors.
- Condensate Drain: Efficient moisture management.
- Sound Level: Ranges from 20 to 47 dB(A), ensuring quiet operation.
- SAP Appendix Q: Compliant for improved energy performance in UK homes.
- 5-Year Warranty: Confidence in long-lasting reliability.
📐 Technical Specifications:
| Parameter | Specification |
|---|---|
| Airflow Rate Max | 340m³/h |
| Airflow Rate @ 100Pa | 310m³/h |
| Max Dwelling Size | 200m² |
| Max Room Extraction | Kitchen + 5 extraction points |
| Specific Fan Power (lowest) | 0.51 |
| Dimensions (W x H x D) | 555 x 550 x 350 mm |
| Weight | 18kg |
| Filtration | 2 x G4 filters (optional 1 x M5) |
| Summer Bypass | Yes |
| Frost Protection | Yes |
| Sound Level @ 3m | 20-47 dB(A) |
| Mounting | Wall or floor mounted |
| Ductwork Connections | Top or side |
| Duct Diameter | 4 x 125mm |
| Condensate Drain | Yes |
| BMS | Yes - KNX |
| Fireplace Mode | No |
| Alarm System Integration | Yes |
| Passive House | No |
| ERP Rating | A |
| Warranty | 5 years |
| Country of Manufacture | UK |
| Heat Exchanger | PVC Counterflow |
| Available Room Sensors | Humidity, Timer, PIR |
| SAP Appendix Q | Yes |
⚙️ What's in the Box?
- 1 x Vent Axia Kinetic FH MVHR Unit
- 2 x G4 filters (optional 1 x M5)
- Digital Controller
- Mounting Brackets
- User Manual
💡 Why Choose the Vent Axia Kinetic FH?
- Maximized Energy Efficiency: 90% heat recovery for reduced energy costs.
- Quiet Operation: With a noise level range of 20-47 dB(A), it ensures a quiet and comfortable living space.
- Long-lasting Performance: Backed by a 5-year warranty for peace of mind.
- Sustainable Comfort: Provides clean, fresh air with efficient heat recovery for healthier living spaces.
- Flexible Installation: Compatible with various mounting options and duct connections.
