Rytons Baffled Controllable LookRyt® AirCore® - Single (BRE Verified) - 6500mm2 Equ Area
Rytons Baffled Controllable LookRyt® AirCore® - Single (BRE Verified) - 6500mm2 Equ Area
SKU : AC7HPWH
Overview
The retro-fitted core ventilator provides continuous background ventilation for improved indoor air quality. Designed to introduce fresh outdoor air into a room, it effectively disperses moisture, odours, and airborne pollutants to help maintain a healthy living environment. The ventilator features an internal tube equipped with a series of baffles that reduce light and draughts.In Stock
Couldn't load pickup availability
For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
Description
Product Part Number

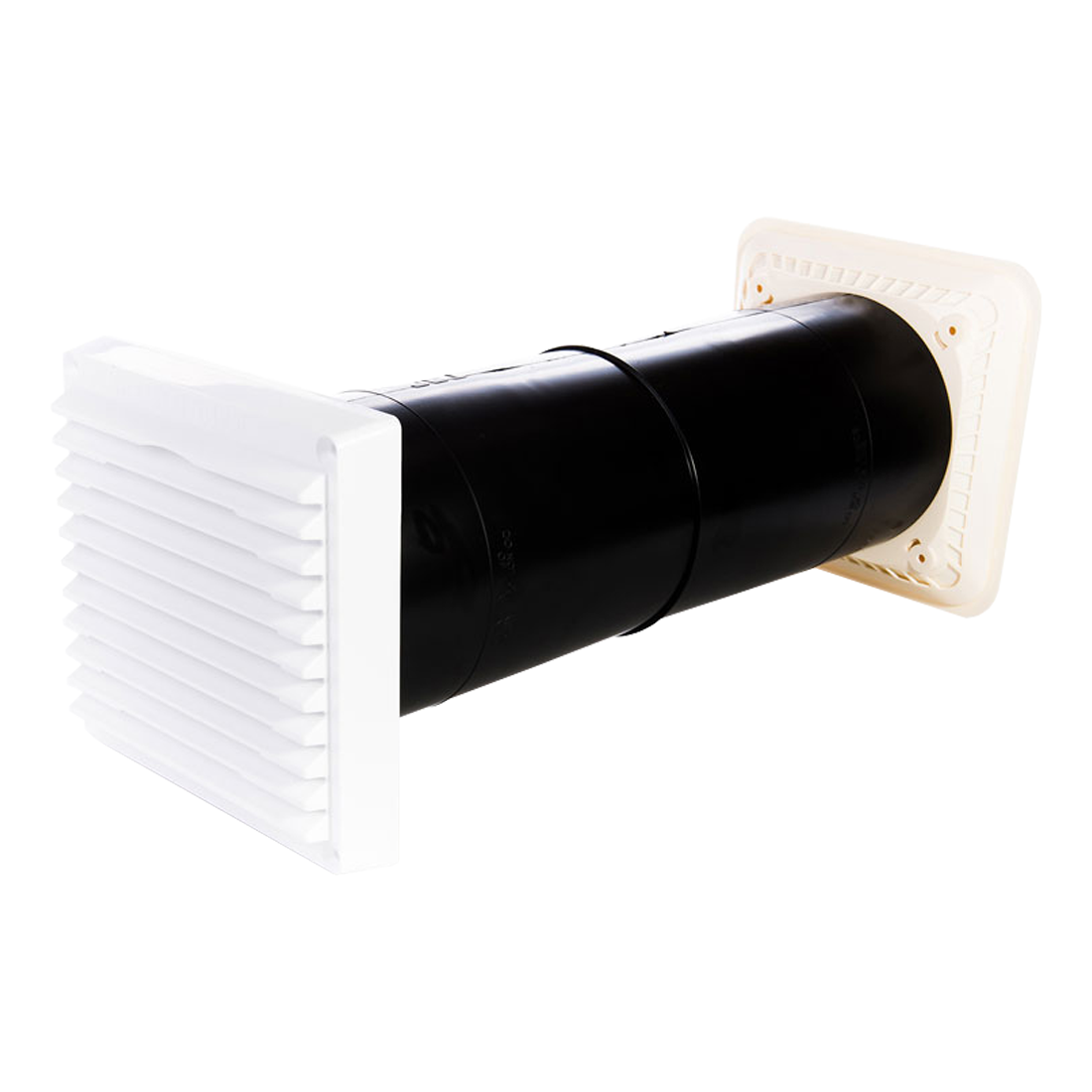

White Rytons Baffled Controllable LookRyt® AirCore® - AC7HPWH

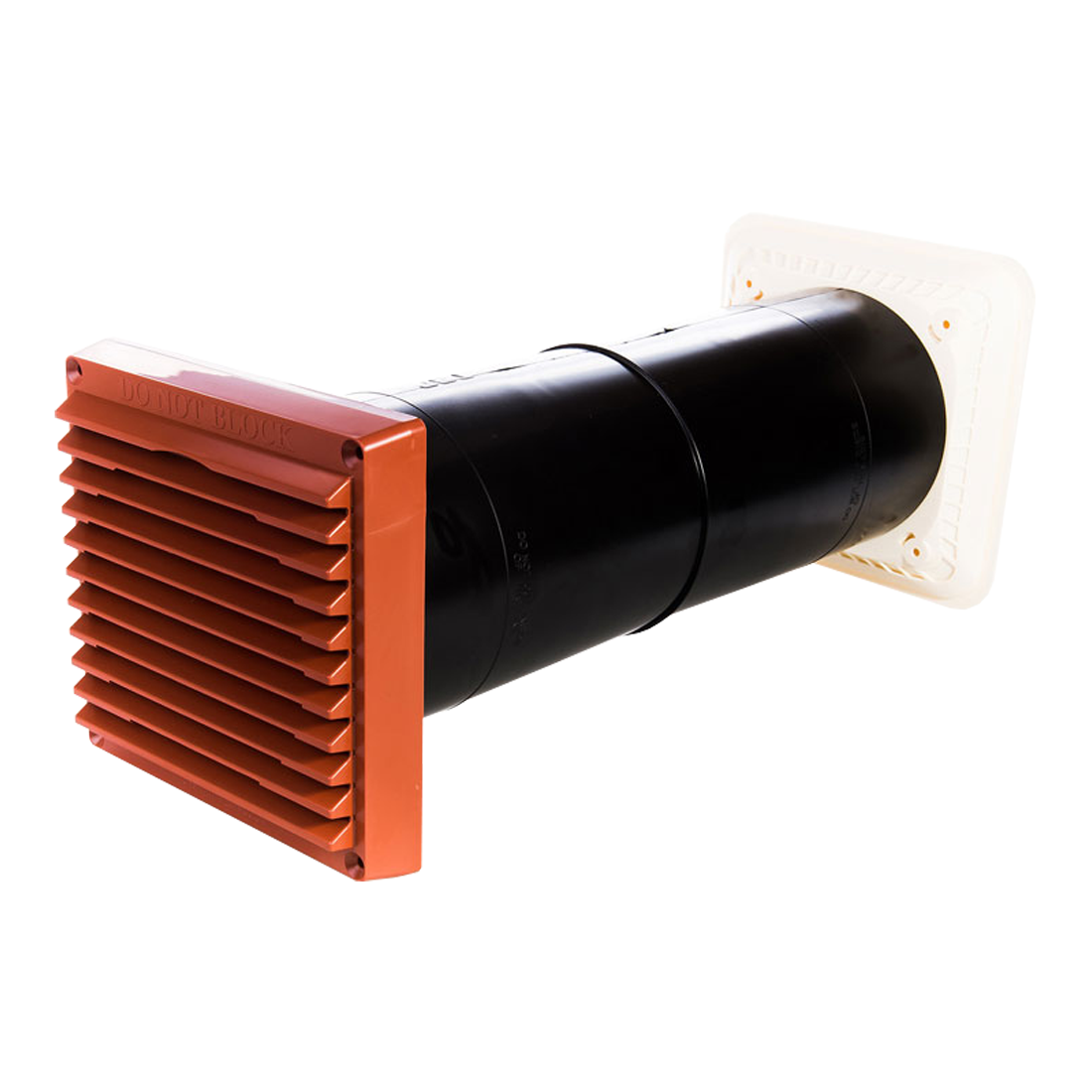

Terracotta Rytons Baffled Controllable LookRyt® AirCore® - AC7HPTC
Product Overview
The retro-fitted core ventilator provides continuous background ventilation for improved indoor air quality. Designed to introduce fresh outdoor air into a room, it effectively disperses moisture, odours, and airborne pollutants to help maintain a healthy living environment. The ventilator features an internal tube equipped with a series of baffles that reduce light and draughts.
A unique, manually adjustable draught control panel allows users to easily regulate airflow using a simple push, pull, or tilt action. For seamless integration with interior design, the internal panel can be painted or wallpapered to match room décor.

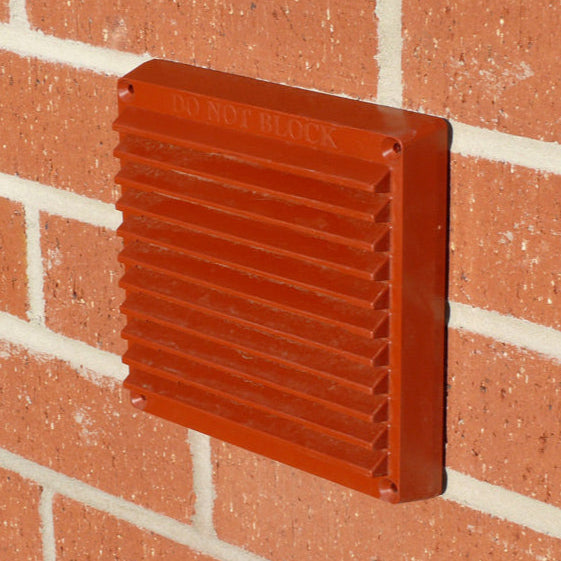

An external water baffle prevents moisture ingress through the cavity, while the UV-stabilised external grille helps resist weathering and discolouration caused by sunlight. The ventilator is designed for installation at a high level—typically 1.7 metres above floor level—across all dwelling types and storey heights.
Key Features
Draught and light-reducing baffle system
Adjustable airflow control
Paintable/wallpaperable internal panel for discreet finish
External water baffle for moisture protection
Suitable for retrofit applications
Technical Specifications
Available colours: White / Terracotta
Equivalent Area: 6,500mm² (65cm²) per set
Tested to BS EN 13141-1:2004 and independently verified by the BRE
Installation Height: Typically 1.7m above floor level
Material: Plastic (UV-stabilised external grille)
Dimensions
External Grille Dimensions: 166mm (L) × 160mm (H)
Tube Dimensions: 127mm (5") diameter × 358mm (L)
(Maximum 63mm may be trimmed from each end if required)
Internal LookRyt® Panel Dimensions: 172mm (L) × 172mm (H)
