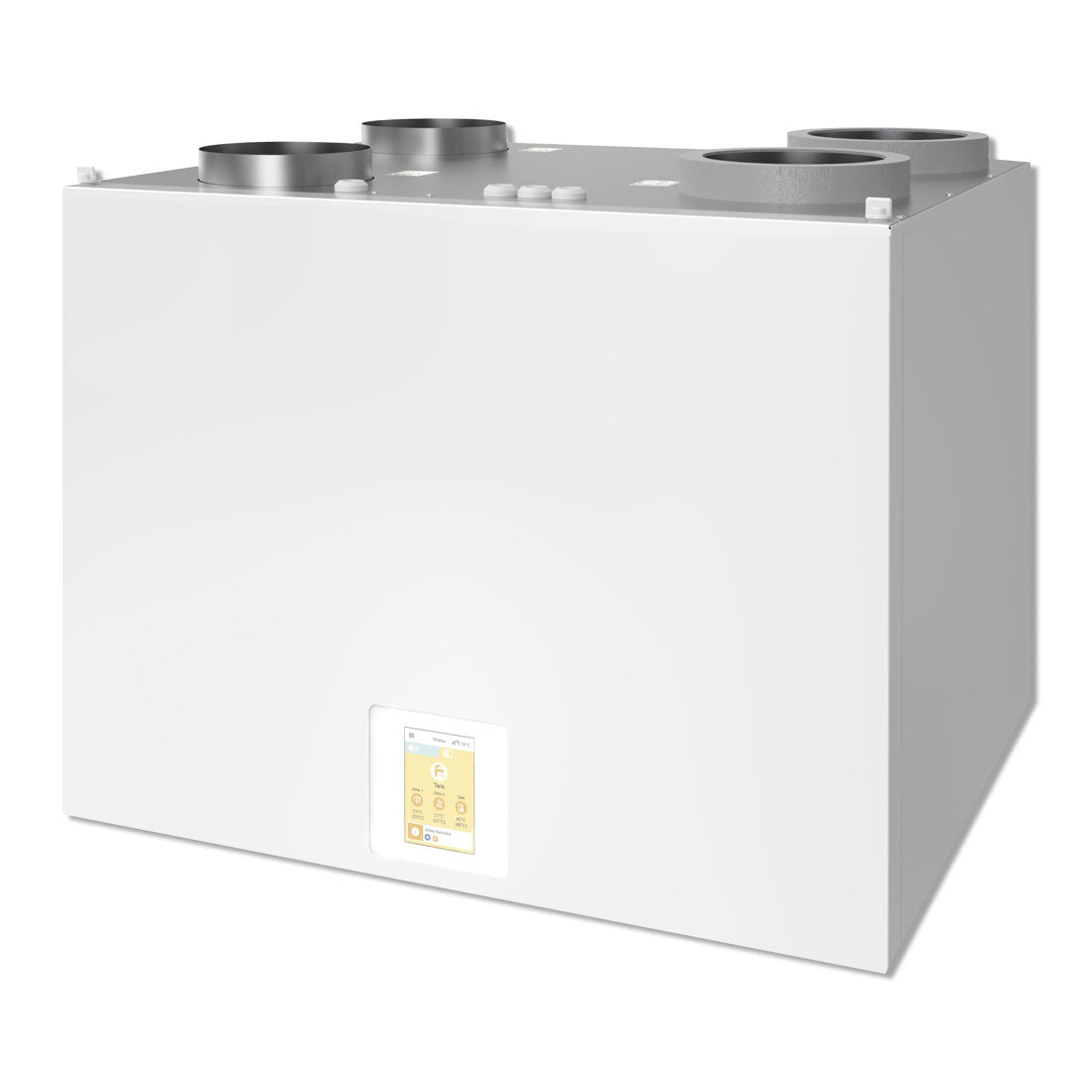

Panasonic Heat Recovery Ventilation Right Hand Unit - PAW-A2W-VENTA-R

Heat recovery ventilation unit is designed not only to provide a good indoor air quality, but it is also designed to recovery heat that would otherwise be lost throughout ventilation. These heat recovery ventilation systems are used in low energy home to assist in the retention of heat.

Technical Features

• Weight – 46kg
• Dimensions 500mm x 598mm x 450mm
• 125mm duct diameter
• 100% Summer Bypass
• Passive House Approved
• Provides up to 83% heat recovery efficiency

Control User-Friendly Interface

All settings and features accessible via a control panel, integrated into the front cover. The option for connecting one or more external control panels is available.

• Colour touch screen with a user-friendly interface
• Manual and auto mode or chose preferred settings for the pre-configured user modes
• If Aquarea H and J generations heat pumps are connected with PAW-A2W-VENTA, the heat pump control option appear on the home screen in a separate tab
