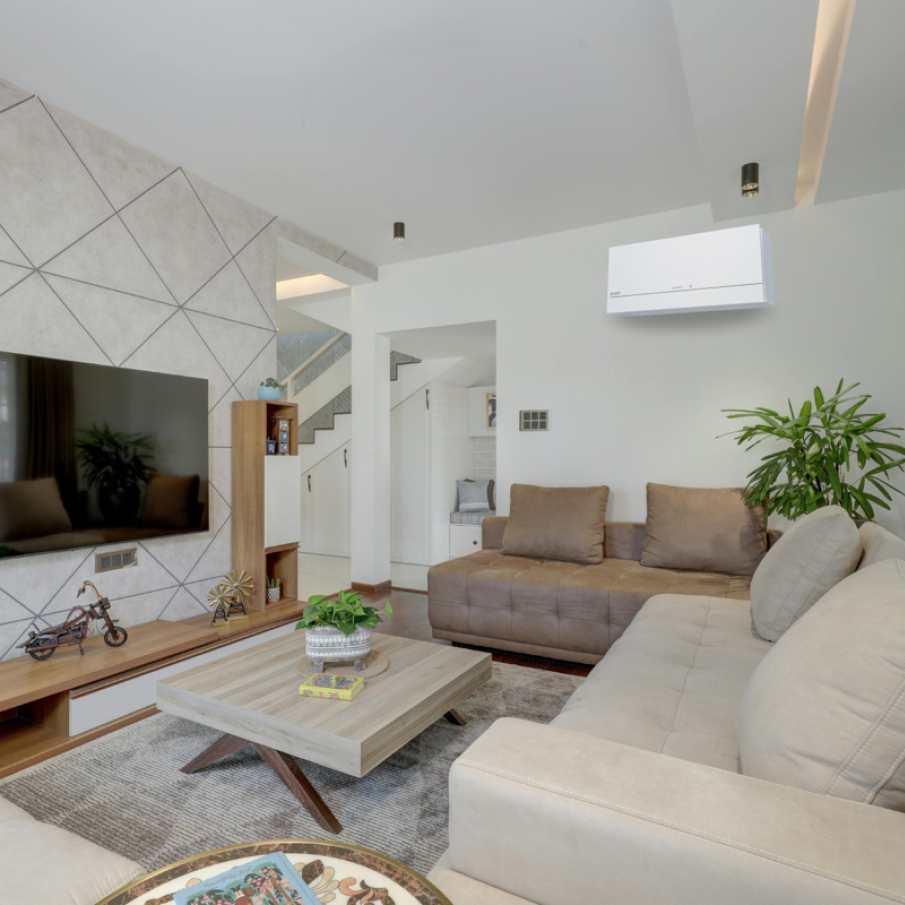

Lossnay VL-80 Wall Mounted Single Room MVHR unit (wall switch model - switch not included)
Lossnay VL-80 Wall Mounted Single Room MVHR unit (wall switch model - switch not included)
SKU : VL-80EU5-E (712582-IE)
Overview
The Mitsubishi Electric Lossnay VL-80EU5-E is a compact, wall-mounted total heat exchanger designed to deliver efficient, balanced ventilation for individual rooms. Part of Mitsubishi Electric’s trusted Lossnay energy-efficient ventilation range, it is ideal for modern, well-insulated homes where effective ventilation is essential to maintain indoor air quality without excessive heat loss.In Stock
Couldn't load pickup availability
For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
Download Files
Description
Product Part Number
VL-80EU5-E (712582-IE)
Product Overview
The Mitsubishi Electric Lossnay VL-80EU5-E is a compact, wall-mounted total heat exchanger designed to deliver efficient, balanced ventilation for individual rooms. Part of Mitsubishi Electric’s trusted Lossnay energy-efficient ventilation range, it is ideal for modern, well-insulated homes where effective ventilation is essential to maintain indoor air quality without excessive heat loss.
The unit operates using simultaneous supply and extract ventilation, continuously introducing fresh outdoor air while removing stale indoor air. Its advanced Lossnay heat exchanger core recovers both sensible and latent heat, helping to maintain a comfortable internal environment while significantly reducing heating energy demand.
With up to 70% heat recovery efficiency, low power consumption, and excellent sound attenuation, the VL-80EU5-E provides a quiet, cost-effective solution for improving air quality in living spaces such as bedrooms, living rooms, home offices, and apartments. The compact design and simple installation process make it well suited for retrofit or new-build applications.
Key Features & Benefits
- Effective fresh air ventilation for single rooms
- Improved indoor air quality and comfort
- High-efficiency heat recovery (up to 70%)
- Low running costs and reduced energy loss
- Quiet operation with good sound attenuation
- Simple wall-mounted installation
- Low power consumption
- Standard air filtration
- Auto-restart function after power interruption
Technical Specification
| Specification | Details |
|---|---|
| Product Type | Total Heat Exchanger |
| Mounting | Wall-mounted |
| Electrical Supply | 230V, 50Hz |
| Phase | Single |
| Power Consumption | Low: 15.5 W / High: 28 W |
| Airflow Rate | Low: 49 m³/h / High: 80 m³/h |
| Sound Pressure Level | Low: 26 dBA / High: 37 dBA |
| Temperature Exchange Efficiency | Low: 70% / High: 62% |
| Heat Recovery Type | Sensible and latent heat |
| Dimensions (W × D × H) | 620 × 200 × 265 mm |
| Weight | 8.8 kg |
| Duct Connections | 2 × Ø75 mm (outside) |
| Wall Thickness Compatibility | 50–300 mm (standard) / 300–550 mm (extended) |
| Fuse Rating (BS88 – HRC) | 3 A |
| Mains Cable | 3 cores |
| Filters | Standard supply and exhaust filters |
