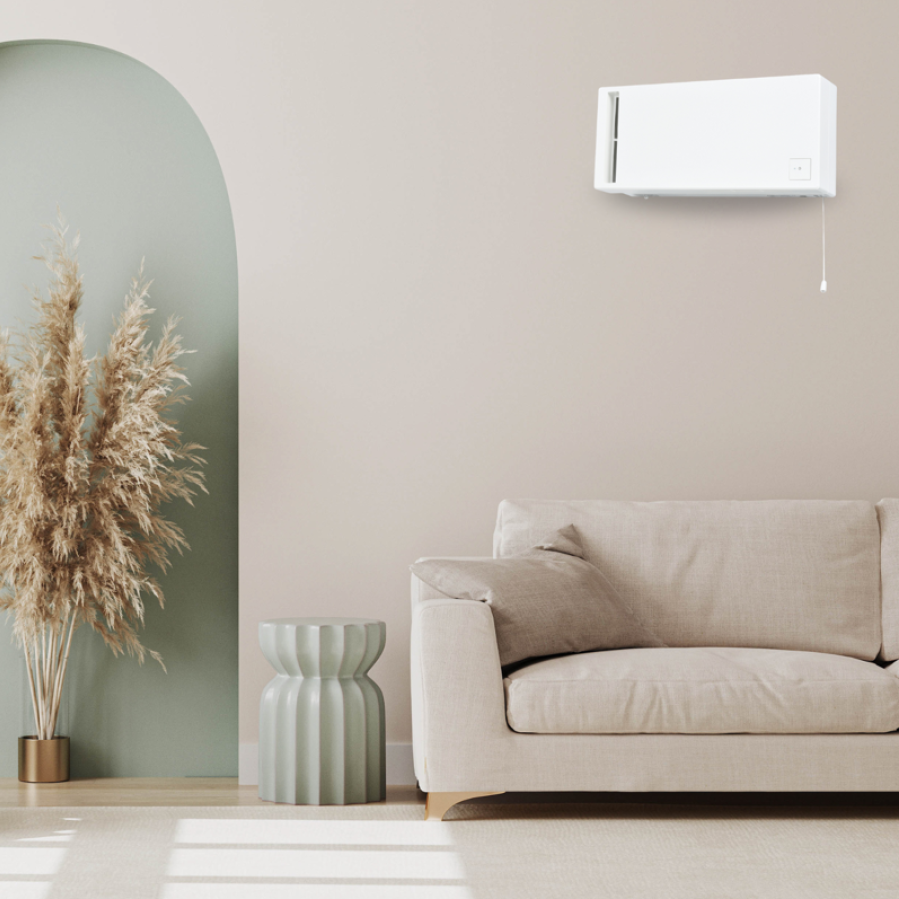

Lossnay VL-50 Wall Mounted Single Room MVHR unit (Pull Cord model)
Lossnay VL-50 Wall Mounted Single Room MVHR unit (Pull Cord model)
SKU : VL-50S2-E (302486-IE)
Overview
The Mitsubishi Electric Lossnay VL-50S2-E is a compact, high-efficiency total heat exchanger designed to provide balanced ventilation for individual rooms. As part of Mitsubishi Electric’s Lossnay residential ventilation range, it is ideally suited to modern, airtight homes that require continuous fresh air supply without compromising energy efficiency.In Stock
Couldn't load pickup availability
For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
Download Files
Description
Product Part Number
VL-50S2-E (302486-IE)
Product Overview
The Mitsubishi Electric Lossnay VL-50S2-E is a compact, high-efficiency total heat exchanger designed to provide balanced ventilation for individual rooms. As part of Mitsubishi Electric’s Lossnay residential ventilation range, it is ideally suited to modern, airtight homes that require continuous fresh air supply without compromising energy efficiency.
The unit operates using simultaneous supply and extract ventilation, introducing fresh outdoor air while removing stale indoor air in a controlled and energy-efficient manner. Its advanced heat exchanger core recovers both sensible and latent heat, helping to maintain a comfortable indoor temperature while significantly reducing heat losses.
With up to 85% heat recovery efficiency, ultra-low power consumption, and very quiet operation, the VL-50S2-E is an excellent solution for bedrooms, living spaces, home offices, and apartments. Its flexible design allows for both vertical and horizontal installation, making it suitable for a wide range of wall configurations and retrofit applications.
Key Features & Benefits
- Effective fresh air ventilation for single rooms
- Improved indoor air quality and occupant comfort
- High-efficiency heat recovery (up to 85%)
- Extremely low power consumption
- Quiet operation with excellent sound attenuation
- Simple wall-mounted installation
- Can be installed vertically or horizontally
- Standard air filtration
- Auto-restart function after power interruption
Technical Specification
| Specification | Details |
|---|---|
| Product Type | Total Heat Exchanger |
| Mounting | Wall-mounted (vertical or horizontal) |
| Electrical Supply | 230V, 50Hz |
| Phase | Single |
| Power Consumption | Low: 4.5 W / High: 20 W |
| Airflow Rate | Low: 16 m³/h / High: 52.5 m³/h |
| Sound Pressure Level | Low: 15 dBA / High: 37 dBA |
| Temperature Exchange Efficiency | Low: 85% / High: 69% |
| Heat Recovery Type | Sensible and latent heat |
| Dimensions (W × D × H) | 522 × 168 × 245 mm |
| Weight | 6.2 kg |
| Duct Connection | Ø114 mm |
| Wall Thickness Compatibility | 50–650 mm |
| Fuse Rating (BS88 – HRC) | 3 A |
| Mains Cable | 3 cores |
| Filters | Standard supply and exhaust filters |
Frequently Asked Questions
-
What is a single room MVHR unit?
-
Where can single room MVHR units be used?
-
Do single room MVHR units need ductwork?
