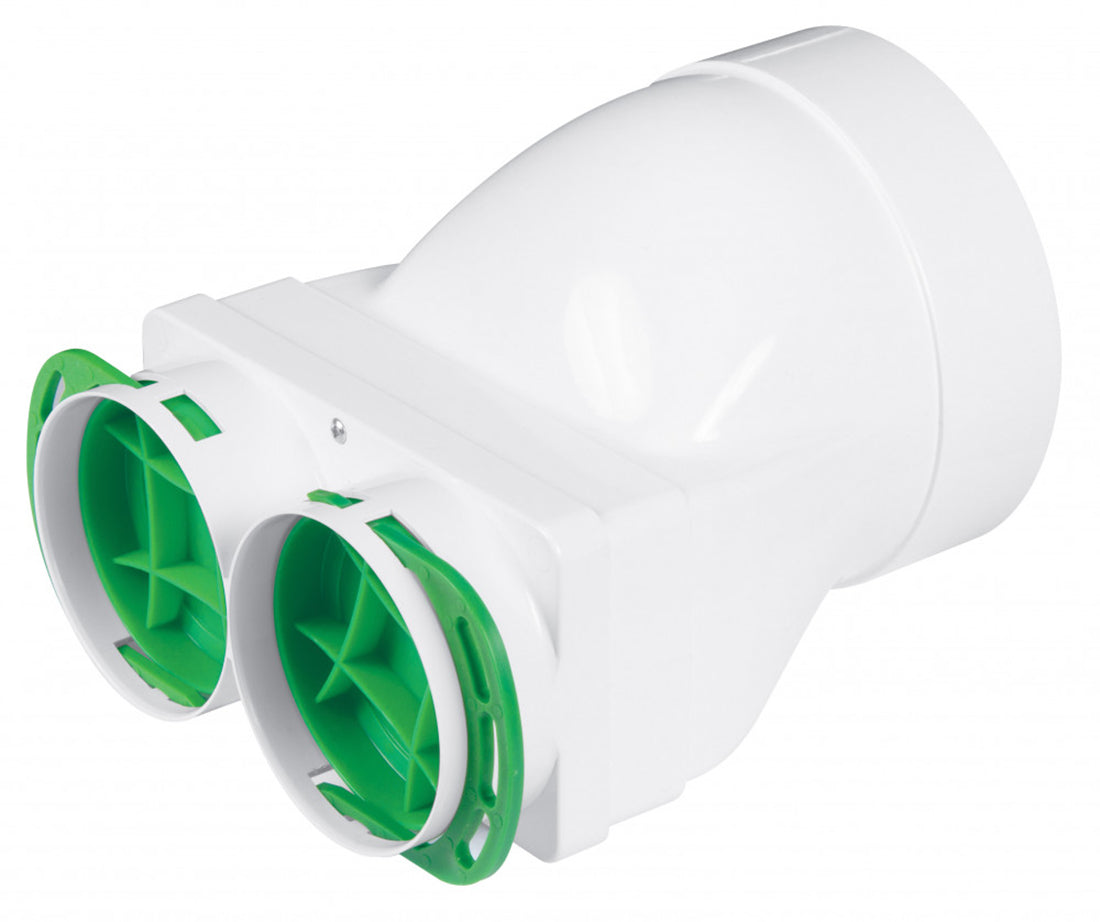

Quiet-Vent 125mm to 2x75mm straight connector

SKU : QVPLEN75AW

Overview

The Quiet-Vent 125mm to 2x75mm Straight Connector is a versatile and ultra-lightweight connector designed for ceiling or wall installation. It enables the connection of two 75mm ducts to a single 125mm duct, making it ideal for both supply and extract valve connections. This connector uses female connectors with a gasket for airtight sealing and can be mounted on various surfaces and planes, ensuring flexibility in installation.

£15.53 GBP Excl. VAT: £12.94 GBP

In Stock

For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.

Any questions? Reach out to our team

View full details

Description

Quiet-Vent 125mm to 2x75mm Straight Connector

Product Part Number

125mm to 2x75mm Straight Connector - QVPLEN75AW

Product Overview

The Quiet-Vent 125mm to 2x75mm Straight Connector is a versatile and ultra-lightweight connector designed for ceiling or wall installation. It enables the connection of two 75mm ducts to a single 125mm duct, making it ideal for both supply and extract valve connections. This connector uses female connectors with a gasket for airtight sealing and can be mounted on various surfaces and planes, ensuring flexibility in installation.

Key Features

Ultra-lightweight Design – Easy to handle and install, especially for ceiling or wall applications
Dual 75mm Connections – Connects two 75mm ducts to a single 125mm duct
Airtight Sealing – Uses female connectors with a gasket to ensure airtightness
Versatile Mounting – Can be mounted on different surfaces and planes for flexible installation
Ideal for Supply and Extract Valves – Perfect for systems requiring both intake and exhaust ducts

Frequently Asked Questions

What is semi rigid radial ductwork?

Semi rigid radial ductwork is a flexible but structured ducting system used to move air between a ventilation unit and individual rooms. It is commonly used in MVHR, MEV and other domestic ventilation systems.
What is radial ductwork used for?

Radial ductwork is used to create individual duct runs from a manifold or distribution box to different rooms. This can help simplify the duct layout and support balanced airflow across the property.
What fittings are needed for semi rigid ductwork?

A semi rigid ductwork system may require manifolds, plenums, connectors, bends, sealing rings, clips, blanking caps and other accessories depending on the layout and installation.
What size radial ducting do I need for my system?

The required duct size depends on the airflow needed at each valve and the overall system design. Radial ductwork should be sized as part of the complete MVHR design rather than selected by room size alone.
Is radial or rigid ducting better for a new build?

Both can work effectively when correctly designed. Radial ducting is popular in new builds because individual flexible runs can make routing and system balancing more straightforward.
