Vent Matika EKA NV duct heater
Vent Matika EKA NV duct heater
SKU : EKA NV 100-0.6-1f PTC/PS
Overview
The Vent Matika EKA NV range of electric duct heaters are Used in ventilation systems as heaters for comfort, or preheaters, to protect the ventilation unit from frost. The EKA NV is controlled by a duct temperature sensor and unit mounted set point controllerIn Stock
Couldn't load pickup availability
For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
- Order before 5pm Mon-Thurs, Dispatched Next day
Download Files
Description
Vent Matika EKA NV Duct Heater
The Vent Matika EKA NV range of electric duct heaters is designed for ventilation systems, providing:
Comfort heating 🔥
Pre-heating to protect ventilation units from frost ❄️
Control System: The EKA NV model is controlled via a duct temperature sensor and a unit-mounted setpoint controller 🎛️.
Why Choose BPC Ventilation?
BPC Ventilation is the largest independent MVHR specialist, offering:
✔️ Lifetime technical support 📞
✔️ High-quality ventilation systems 🏆
🔑 Key Features – Vent Matika EKA NV Heater
Controlled via unit-mounted setpoint controller 🎛️
Internal temperature regulator 🌡️
Dual overheating protection 🚨
Pre-heater or post-heater functionality 🔄

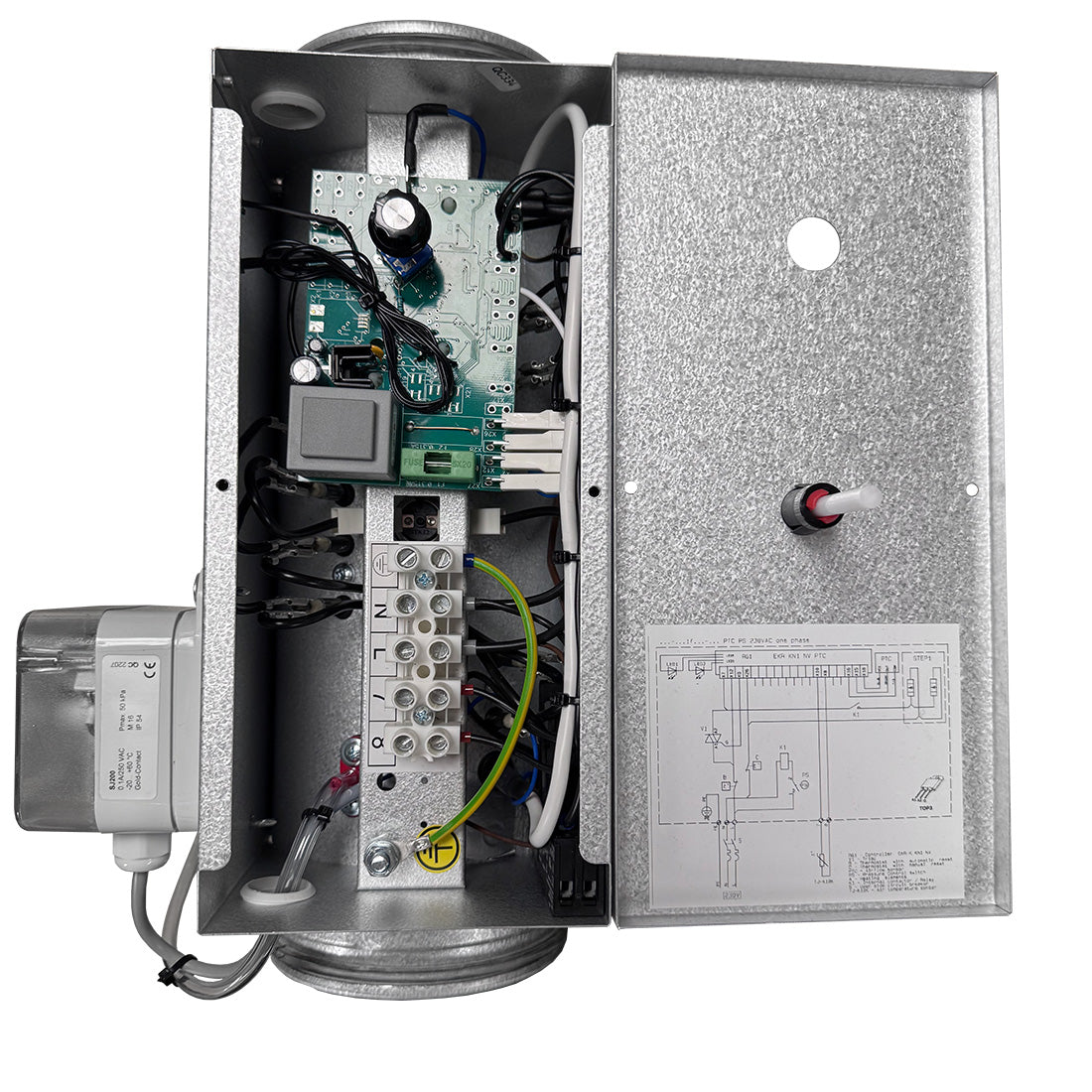

Easy-to-use screw terminals 🔧
Rubber-sealed ductwork connections 🔩
Flexible mounting: Horizontal or Vertical ⬆️⬇️
Stainless steel heating element 🌟
Aluzinc casing for durability 🏗️
Certified: CE, RoHS & REACH 🏅
🎛️ Control Options

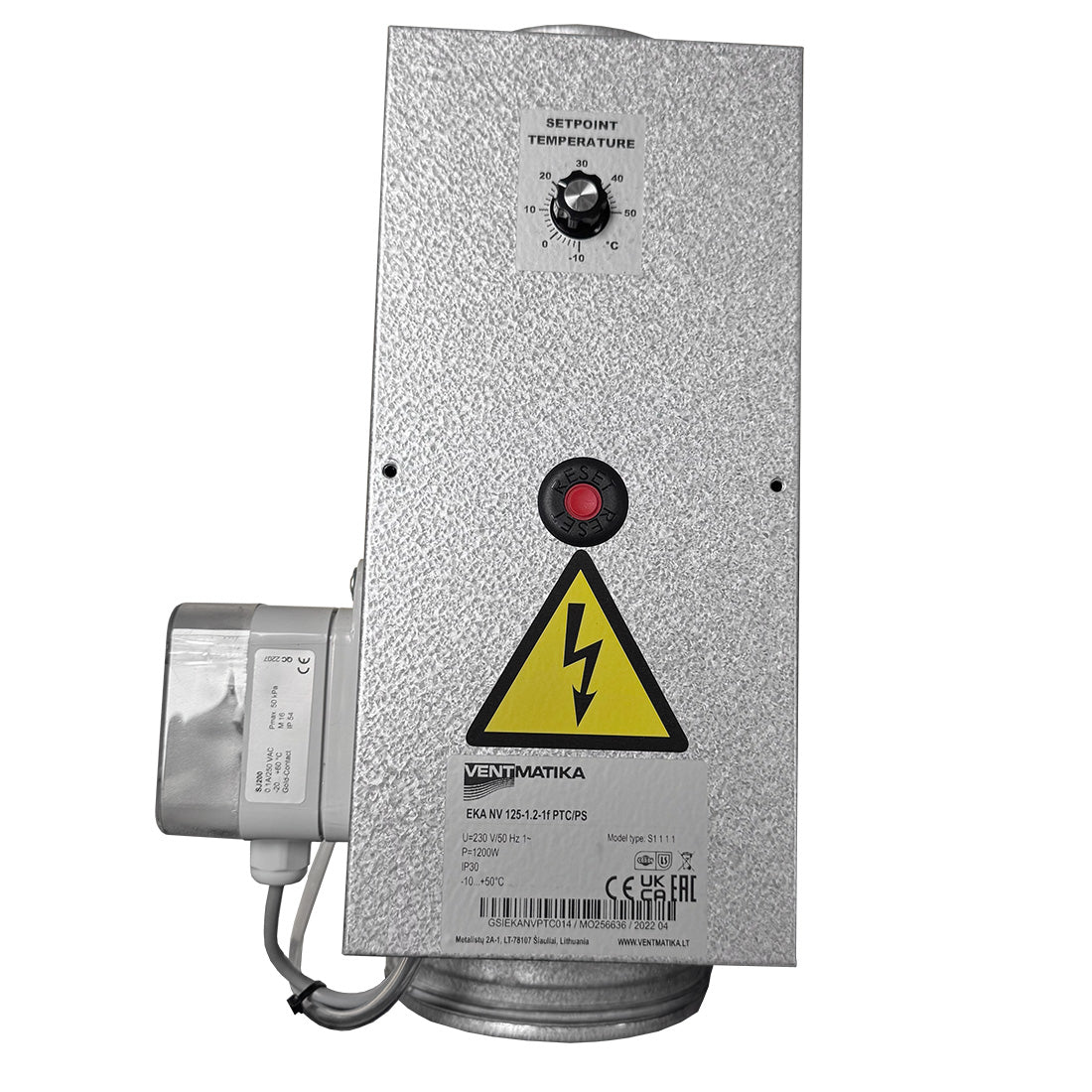

The EKA NV model features a duct-mounted temperature sensor, controlled via the setpoint potentiometer located on the top of the heater casing.
How it Works:
✅ Heater operation is regulated by the duct sensor
✅ Supply air temperature is limited to +15°C…+40°C 🌡️
 |
 |
🔥 Overheating Protection
🛡️ Built-in safety thermostats prevent overheating:
🔸 Automatic Reset: Turns off at 50°C, restarts when below 50°C
🔸 Manual Safety Reset: Turns off at 100°C – requires manual intervention
🛠️ If overheating occurs, identify the cause, fix it, and press the RESET button on the heater’s cover.
🏗️ Construction & Mounting
Material: Aluzinc-coated steel – high-temperature resistant ♨️
Installation:
✅ Indoors only – away from moisture 🚫💧
✅ Mounting:
- Horizontally with the electrical box facing up or sideways
- Vertically (only if airflow is upwards)
Max Output Temperature: 50°C 🌡️
Installation
Dimensions
📏 Available Models & Dimensions
💡 These models are kept in stock, but other sizes and power outputs are available upon request. Contact our team for pricing & availability!
| Model | Diameter | Power Output | Code |
|---|---|---|---|
| 🔹 EKA-NV-100-0.6 | 100mm | 0.6 kW | EKA-NV-100-0.6 |
| 🔹 EKA-NV-125-1.2 | 125mm | 1.2 kW | EKA-NV-125-1.2 |
| 🔹 EKA-NV-160-1.2 | 160mm | 1.2 kW | EKA-NV-160-1.2 |
| 🔹 EKA-NV-160-2.4 | 160mm | 2.4 kW | EKA-NV-160-2.4 |
| 🔹 EKA-NV-200-3.0 | 200mm | 3.0 kW | EKA-NV-200-3.0 |
| 🔹 EKA-NV-250-3.0 | 250mm | 3.0 kW | EKA-NV-250-3.0 |
📞 Need a custom size? Contact us for options!

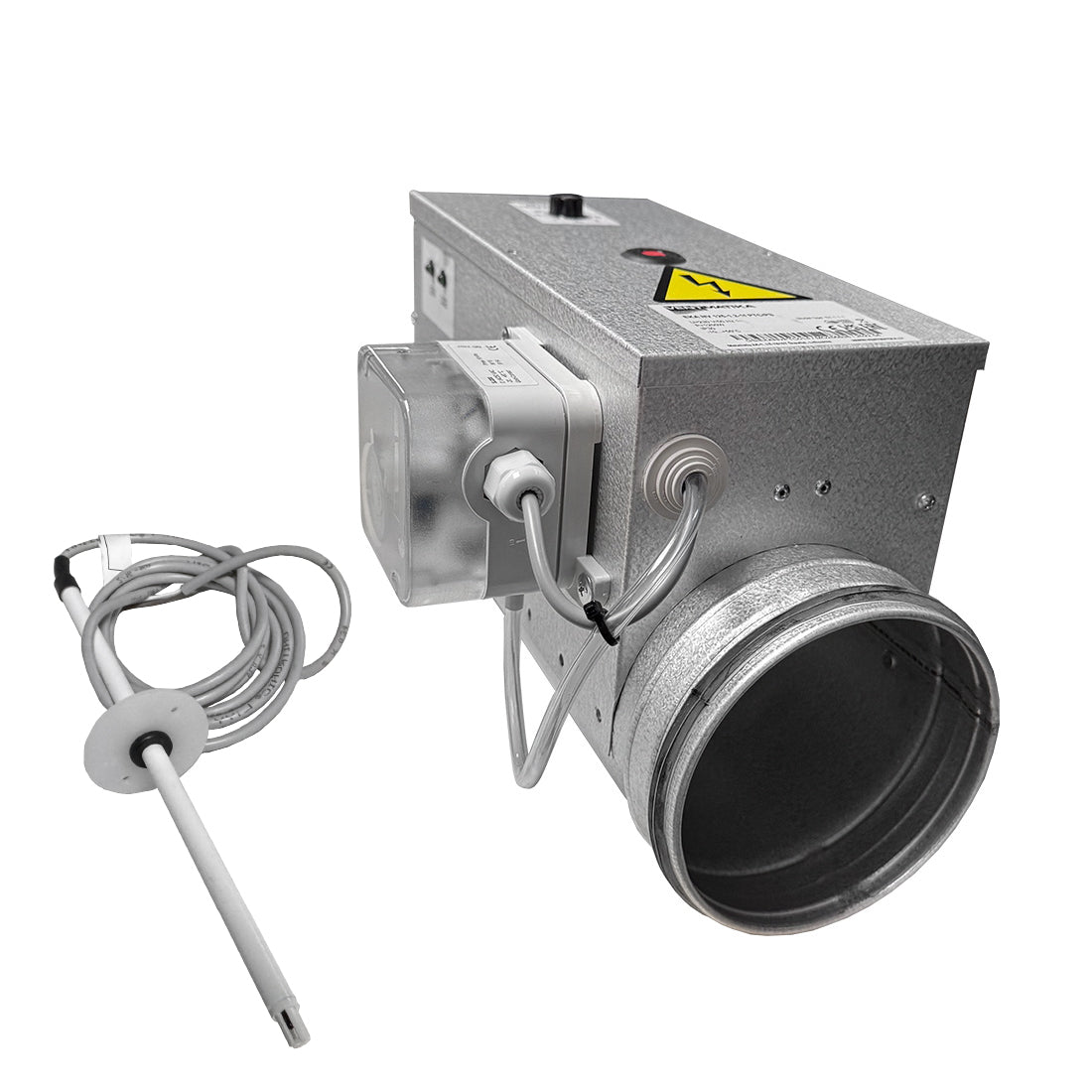

🛒 Optional Accessories
Enhance the performance of your EKA NV heater with these add-ons:
PTC Airflow Sensor – Ensures heater operation only if airflow velocity ≥ 1.5m/s 🌬️

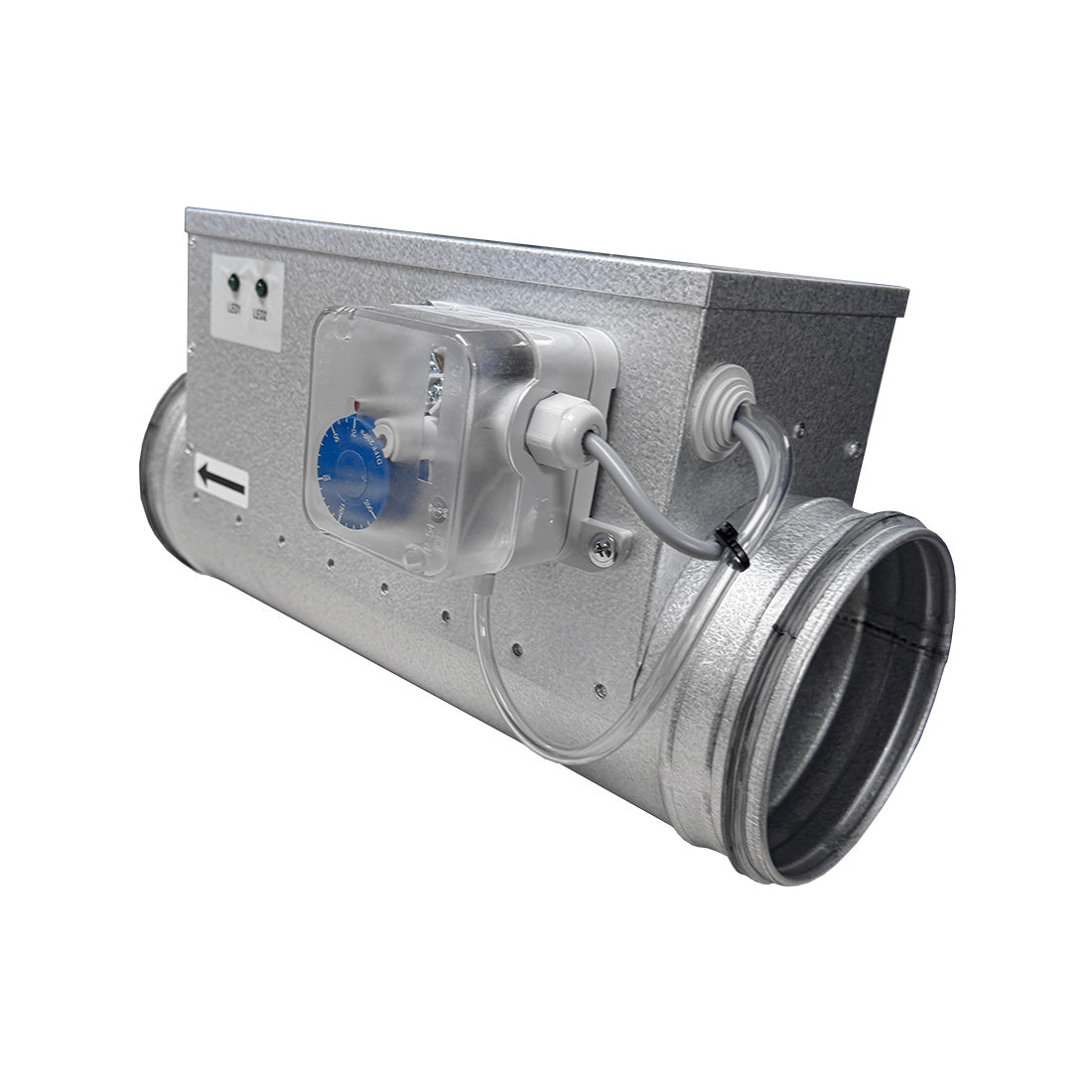

PS Differential Pressure Switch – Mechanical protection to prevent heating under low airflow 🚨
PTC/PS Sensor – Combines minimum airflow detection & pressure switch for safety
PTC/K Sensor – Includes airflow detection & overheating protection contactor
2NTC Sensors – Dual sensors for accurate air temperature measurement 🌡️
PTC/2NTC Sensor – Combines airflow detection & dual temperature sensors
📌 Note: Due to airflow requirements, PTC or PS options may not be suitable for some domestic MVHR/MEV systems. Contact us for advice!
