Mitsubishi 12 Room Complete MVHR Kit
Mitsubishi 12 Room Complete MVHR Kit
SKU : KIT-MITSU-MVHR-12
Overview
Complete 12-room MVHR kit for homes around 230 m², built around the Mitsubishi Lossnay VL-500 (R) Residential MVHR - RIGHT. Up to 90% heat recovery efficiency. Key features: Unit-mounted digital controller; 100% automatic summer bypass. Includes the MVHR unit, matched ducting, valves, distribution components and installation essentials.
For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
Description
Complete 12 Room MVHR Kit for Homes Around 230 m²
Mitsubishi 12 Room Complete MVHR Kit is a ready-to-buy whole-house mechanical ventilation with heat recovery package built around the Mitsubishi Lossnay VL-500 (R) Residential MVHR - RIGHT (VL-500CZPVU-R-E). It is designed for homeowners, self-builders and installers looking for a matched MVHR system for a typical 12-room property of approximately 230 m².
An MVHR system continuously removes stale, humid air from kitchens, bathrooms and other wet rooms while supplying fresh filtered air to bedrooms and living spaces. The heat exchanger transfers warmth from the outgoing air to the incoming fresh air, helping improve indoor air quality while reducing avoidable heat loss.
Key features and benefits
- Designed as a complete MVHR package for a typical 12-room home of around 230 m²
- Up to 90% heat recovery efficiency
- Unit-mounted digital controller
- 100% automatic summer bypass
- Optional Wi-Fi and additional demand-control sensors
- Replaceable G3 filtration with optional upgraded supply filtration
- Matched radial ducting, room valves, distribution components and installation essentials included
About the Mitsubishi Lossnay VL-500 (R) Residential MVHR - RIGHT
Residential Mitsubishi Lossnay MVHR with straightforward controls and dependable heat recovery. Up to 90% heat recovery efficiency. This complete package pairs the unit with matching ductwork, valves, distribution components and installation essentials so you can order the core whole-house ventilation system together.
Unit configuration
- Right-hand unit configuration
What's included in this MVHR kit?

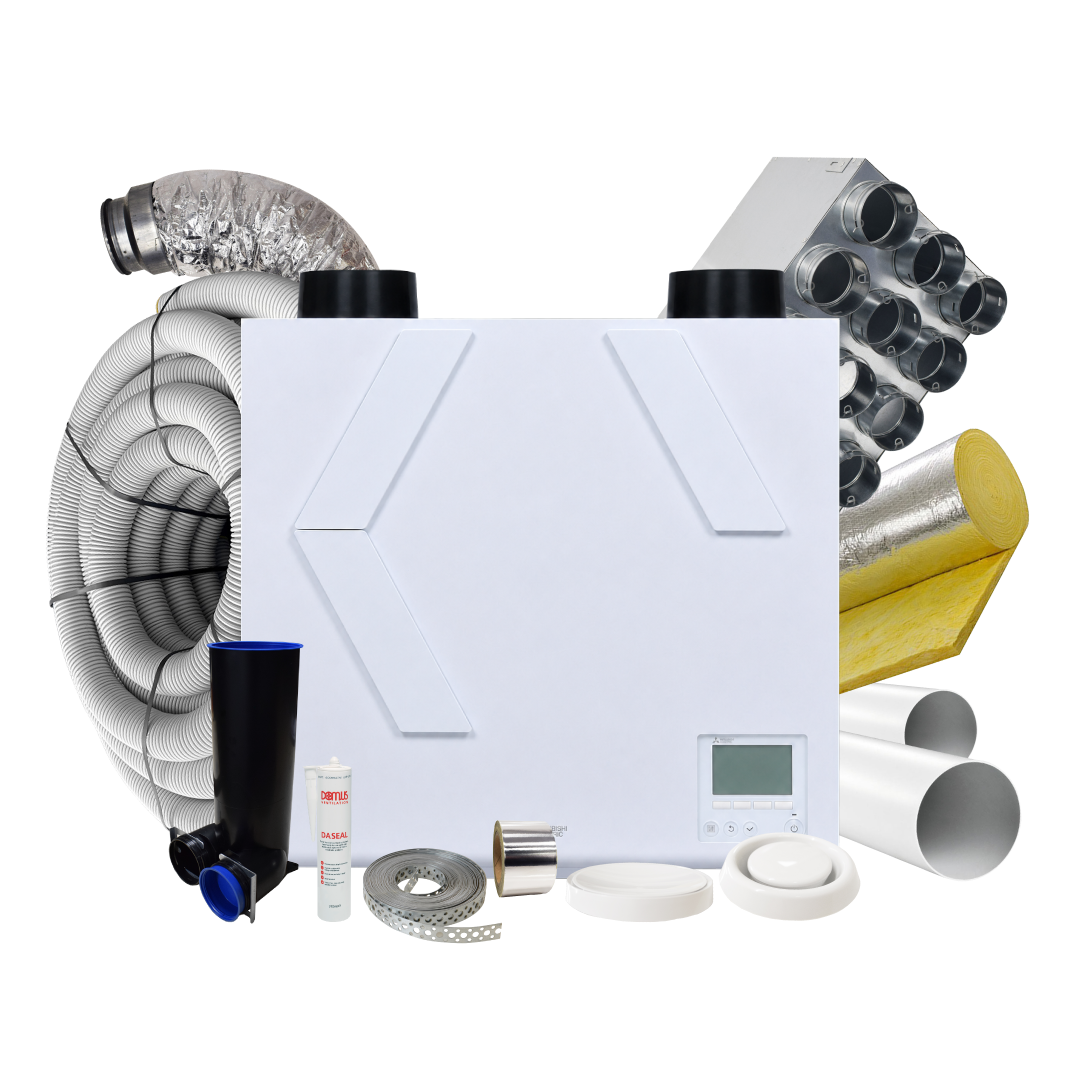

The package includes the selected MVHR unit plus matched supply and extract valves, radial ducting, manifolds or distribution boxes, main duct components and key installation consumables for this kit size.
| SKU | Item | Qty |
|---|---|---|
| QV-125AVP-S | 125mm - Quiet-Vent supply air valve PVC (white) | 7 |
| QV-125AVP-E | 125mm - Quiet-Vent extract air valve PVC (white) | 6 |
| QV-P180M-2 | QV - 180mm - Metal Pipework x 2 meter | 4 |
| QV-C180MM | QV- 180mm - Metal Male Coupling | 3 |
| QV-B90180M | QV-180mm - Metal B90º Vent Pressed Bend with seals | 10 |
| QV180F-SILENCER | Quiet-Vent 180mm x 500mm - Flexi insulated sound attenuator with adaptors | 2 |
| INS25 | QV 25mm - 1m Foil Back Glass Fibre Insulation (1.2m x 1 m) | 7 |
| QV-SSC180WM | 180mm Wall Cowl | 2 |
| CRC170-185 | 180mm Flexible Connector | 4 |
| BS50 | Builders Strap Roll (10m /12*0.8cm) | 2 |
| ST75 | 75mm - Roll Silver Foil Tape (45 meters, 30 Microns) | 2 |
| SE380 | Metal Sealant | 1 |
| QV75P-HP | QV 75mm - 50 Metre Antibacterial Radial pipe (use QV rings) | 5 |
| QV75-PLEN | Quiet-Vent 75mm Plenum | 13 |
| QV-75SR | Quiet-Vent 75mm - Standard Sealing Ring (pack of 10) | 6 |
| QV75-15180RE | Quiet-Vent 15 Pt Rear Entry Distribution box -180 spigot (75mm) with 4 x blanking caps | 2 |
| VL-500CZPVU-R-E | Mitsubishi Lossnay VL-500 (R) Residential MVHR - RIGHT (180mm 590m3/h @100Pa) | 1 |
| P-09HSD-E | Mitsubishi Duct Mount P&P Humidity Sensor for VL-250/350/500 Range | 1 |
Is this complete MVHR kit right for my home?
This kit is intended as a practical starting point for a typical 12-room home around 230 m². Every property is different, and final requirements can change with occupancy, room use, duct routes and the building layout. If your project is unusual or you want confirmation before ordering, send BPC your plans for a ventilation design check.
Why choose a complete BPC MVHR kit?
Buying the unit and matched system components together reduces the risk of missing key installation parts and gives self-builders, homeowners and installers one convenient whole-house MVHR package. The kit remains fully itemised in the basket, making the individual components clear for ordering, fulfilment and future maintenance.
