Product Part Number
EBB-100NT
Product Overview

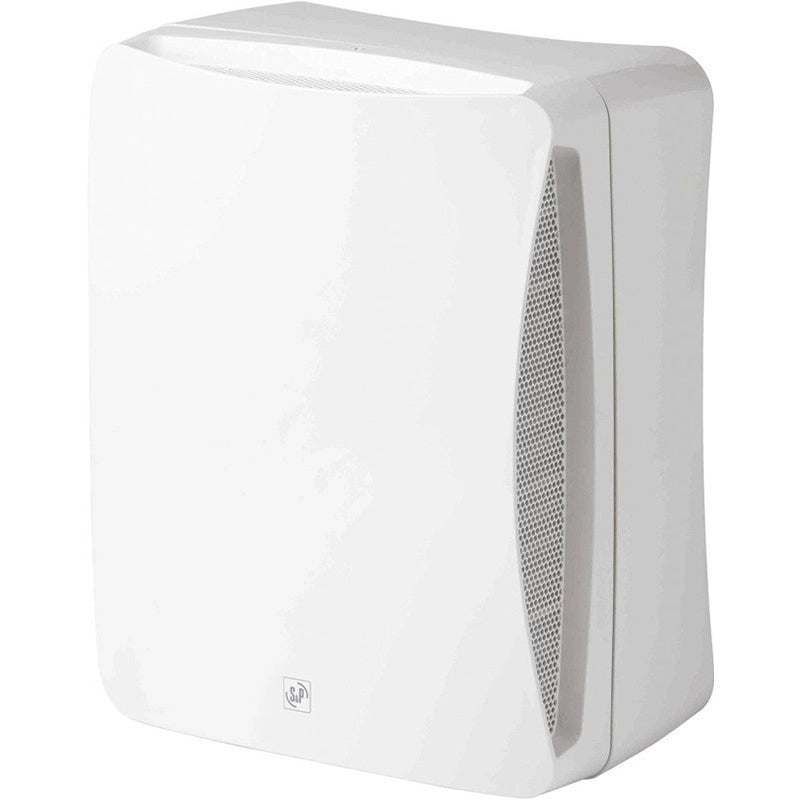

The S&P EBB-100NT is a two-speed centrifugal extract fan designed for bathrooms, toilets, utility rooms and other domestic or light-commercial spaces where longer or more restrictive duct runs create higher system resistance.
Its forward-curved centrifugal impeller provides effective airflow against higher static pressure, making it more suitable for demanding ducted installations than a standard axial bathroom fan. The unit can be surface mounted or recessed to suit the available installation space.
The fan delivers up to 110m³/h at high speed and 70m³/h at low speed. An integrated timer allows the fan to continue running at low speed after the connected switch has been turned off, helping clear remaining moisture, stale air and odours from the room.
Four timer settings are available: an automatic proportional mode or fixed run-on periods of 2, 15 or 30 minutes. In automatic mode, the run-on period is calculated according to how long the fan was operating, up to a maximum of 30 minutes.
The EBB-100NT includes automatic back-draught shutters for both the 80mm and 100mm outlet options, helping prevent outside air from entering and reducing heat loss while the fan is switched off. Two metal filters help prevent dust and dirt from entering the fan.
Technical Specification
Manufacturer: Soler & Palau
Fan Type: Centrifugal extract fan
Application: Bathrooms, toilets, utility rooms and light-commercial spaces
Installation: Suitable for surface-mounted or recessed installation
Operating Speeds: 2 speed
High-Speed Airflow: 110m³/h
High-Speed Airflow: Approximately 30.6l/s
Low-Speed Airflow: 70m³/h
Low-Speed Airflow: Approximately 19.4l/s
Listed Rated Airflow: 31l/s
High-Speed Motor Speed: 1,500rpm
Low-Speed Motor Speed: 1,040rpm
High-Speed Power Consumption: 29W
Low-Speed Power Consumption: 15W
Supply Voltage: 230V
Frequency: 50Hz
High-Speed Sound Pressure Level: 44dB(A) at 1.5 metres
Low-Speed Sound Pressure Level: 34dB(A) at 1.5 metres
Impeller Type: Forward-curved centrifugal impeller
Timer: Yes
Timer Operation: Run-on operation at low speed
Timer Settings: Automatic proportional, 2 minutes, 15 minutes or 30 minutes
Maximum Automatic Run-On Time: 30 minutes
Duct Connection: 80mm or 100mm diameter
Back-Draught Shutter: Automatic back-draught shutter
Filters: Two metal filters
Humidity Sensor: No
Motor Protection: Thermal overload protection
Electrical Insulation: Class II
IP Rating: IP44
Maximum Air Temperature: 40°C
Body Material: Polypropylene
Impeller Material: Polypropylene
Colour: White
Front Width: 211mm
Front Height: 268mm
Overall Depth with 100mm Outlet: 147mm
Overall Depth with 80mm Outlet: 139mm
Main Body Depth: 127mm
Outlet Diameter: 98mm or 79mm
Weight: Approximately 1.8kg
