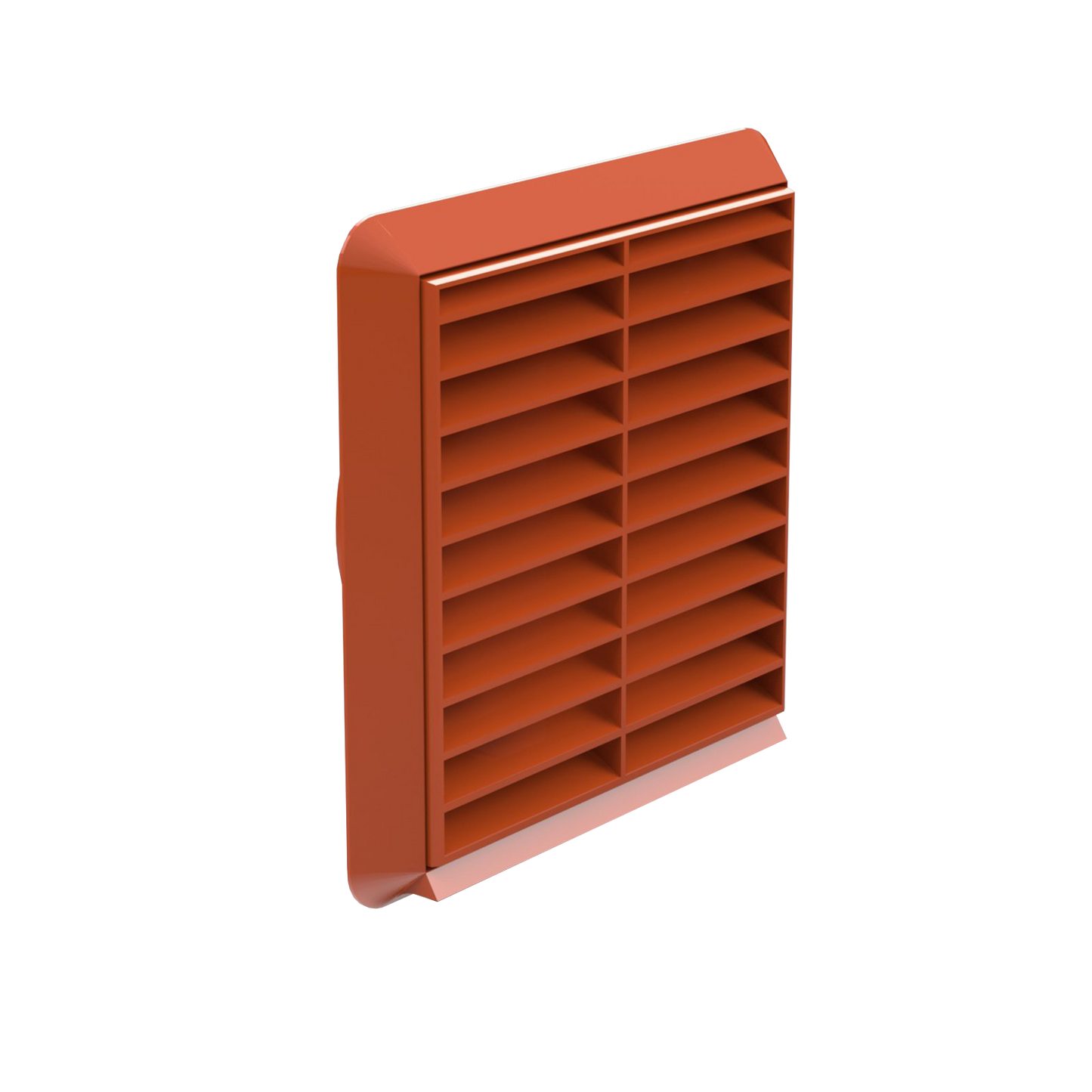

100mm - PVC Louvred Grill Round Spigot

SKU : GPVC100W

Overview

The 100mm PVC Exterior Louvred Grille provides a neat and durable termination point for 100mm round ventilation ducting. Designed for external ventilation applications, the grille features fixed louvres to help protect the duct opening while allowing air to pass through the ventilation system. The round rear spigot allows for straightforward connection to compatible 100mm round ducting.

£3.93 GBP Excl. VAT: £3.28 GBP

For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.

Any questions? Reach out to our team

View full details

Description

Product Part Number

GPVC100W - White PVC Louvred Grill
GPVC100Black - Black PVC Louvred Grill
GPVC100Terracotta - Terracotta PVC Louvred Grill

Product Overview

The 100mm PVC Exterior Louvred Grille provides a neat and durable termination point for 100mm round ventilation ducting.

Designed for external ventilation applications, the grille features fixed louvres to help protect the duct opening while allowing air to pass through the ventilation system. The round rear spigot allows for straightforward connection to compatible 100mm round ducting.

Manufactured from lightweight polypropylene, the grille is suitable for a wide range of residential and light commercial ventilation installations and is available in White, Black and Terracotta to complement different external finishes.

Technical Specification

Specification	Details
Product Type	Exterior Louvred Grille
System Size	100mm
Spigot Type	Round
Duct Connection	100mm
Material	Polypropylene
Available Colours	White, Black, Terracotta
White Colour Code	RAL 9003
Terracotta Colour Code	RAL 2001
Black Colour Code	N/A
Weight	0.08 kg
Application	External ventilation termination
Louvre Type	Fixed louvres
Flyscreen	No

Frequently Asked Questions

What are external air valves used for?

External air valves, grilles and terminals are used as the outside connection point for ventilation ductwork, they allow air to enter or leave the property while helping protect the duct opening.
What is the difference between an internal and external air valve?

Internal air valves are fitted inside the property, usually on ceilings or walls. External air valves or terminals are fitted outside the property, such as on an external wall, roof or soffit.
Do external air valves need insect mesh?

Some external grilles and cowls include insect mesh to help reduce the risk of insects entering the duct.
