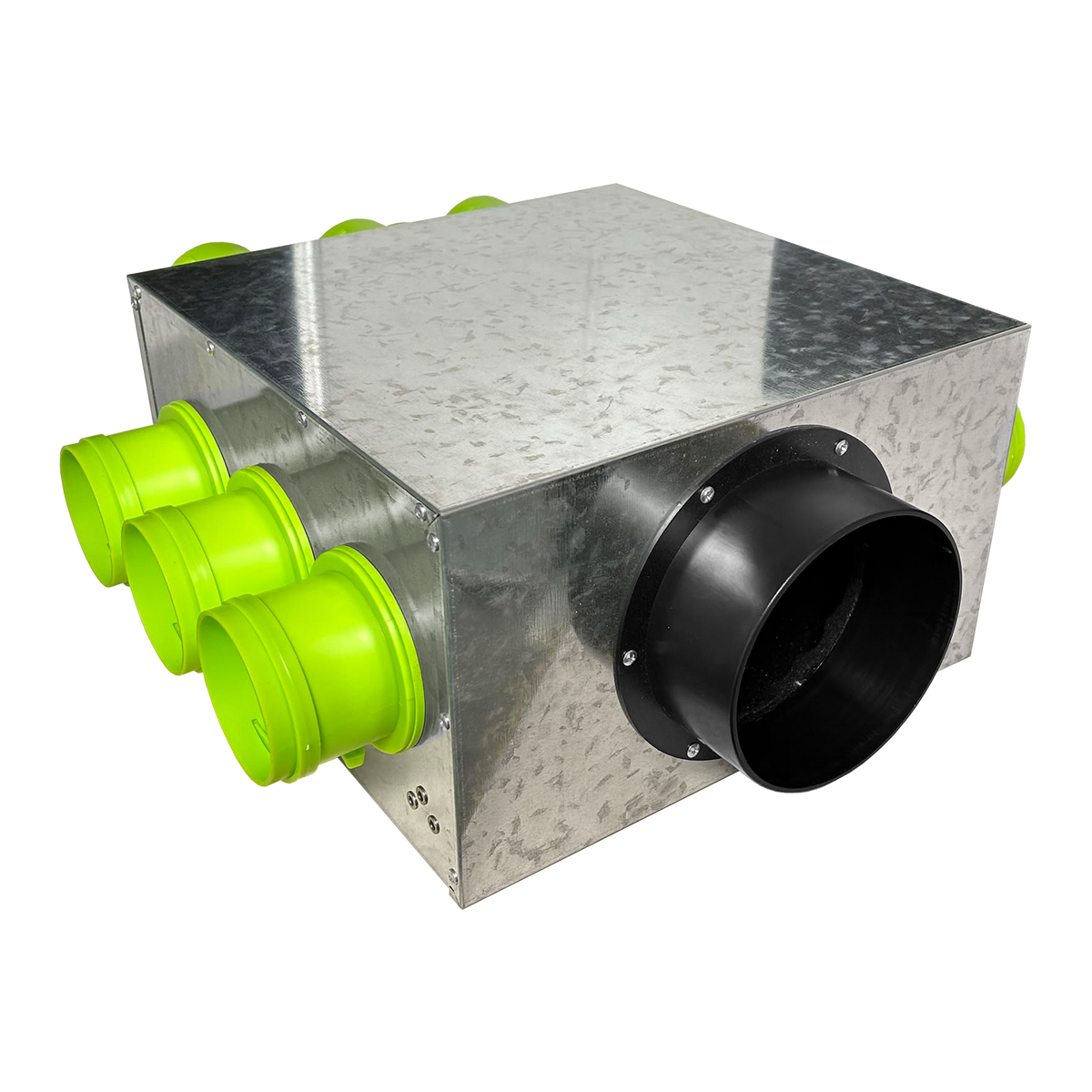

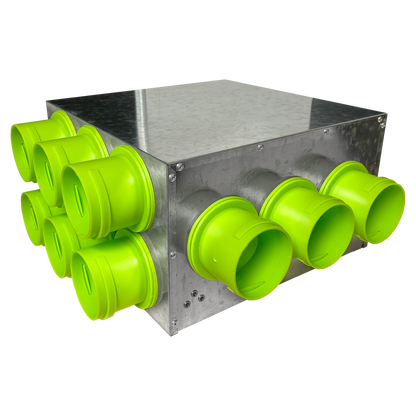

VS 150 - 12 pt rear entry insulated box

Product Part Number

P42

Product Overview

The VS 150 – 12 Port Rear Entry Insulated Box is a compact air distribution box designed for use with 75mm radial ducting systems in residential and light commercial ventilation installations.

Featuring a 150mm main duct connection and 12 x 75mm radial connections, the box provides a central distribution point for directing airflow between the main ventilation duct and individual room duct runs. It is suitable for use within MVHR and other mechanical ventilation systems where multiple semi-rigid duct runs need to be connected neatly and efficiently.

The box is manufactured from galvanised steel and includes internal acoustic insulation to help reduce airborne and breakout noise through the distribution system. Its compact 350 x 350 x 205mm construction makes it suitable for installation within ceiling voids, service areas and other restricted spaces.

Key Features

• 12-port air distribution box
• Designed for 75mm radial ducting
• 150mm main duct connection
• Rear-entry configuration
• Internally insulated for improved acoustic performance
• Galvanised steel construction
• Compact design for ceiling and service void installations
• Suitable for MVHR and mechanical ventilation systems
• Provides a neat central connection point for multiple radial duct runs

Technical Specification

Product: VS 150 – 12 Port Rear Entry Insulated Box
Main Connection Diameter: 150mm
Radial Connections: 12
Radial Connection Diameter: 75mm
Entry Type: Rear Entry
Width (A): 350mm
Length (B): 350mm
Height (C): 205mm
Main Connection (D): Ø150mm
Radial Connection (E): Ø75mm
Body Material: Galvanised Steel
Insulation: Internal Acoustic / Soundproof Insulation
Duct Type: Semi-Rigid Radial Ducting
Suitable Duct Size: 75mm
Application: Air Distribution
Suitable Systems: MVHR / Mechanical Ventilation Systems
Installation Location: Ceiling Voids, Service Voids and Similar Concealed Spaces
