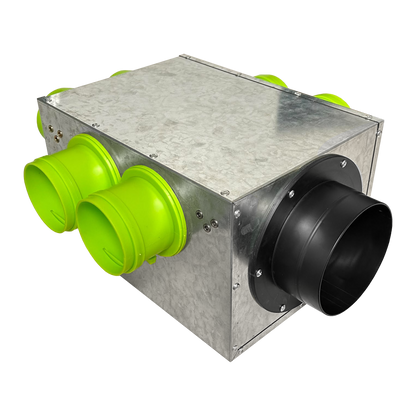

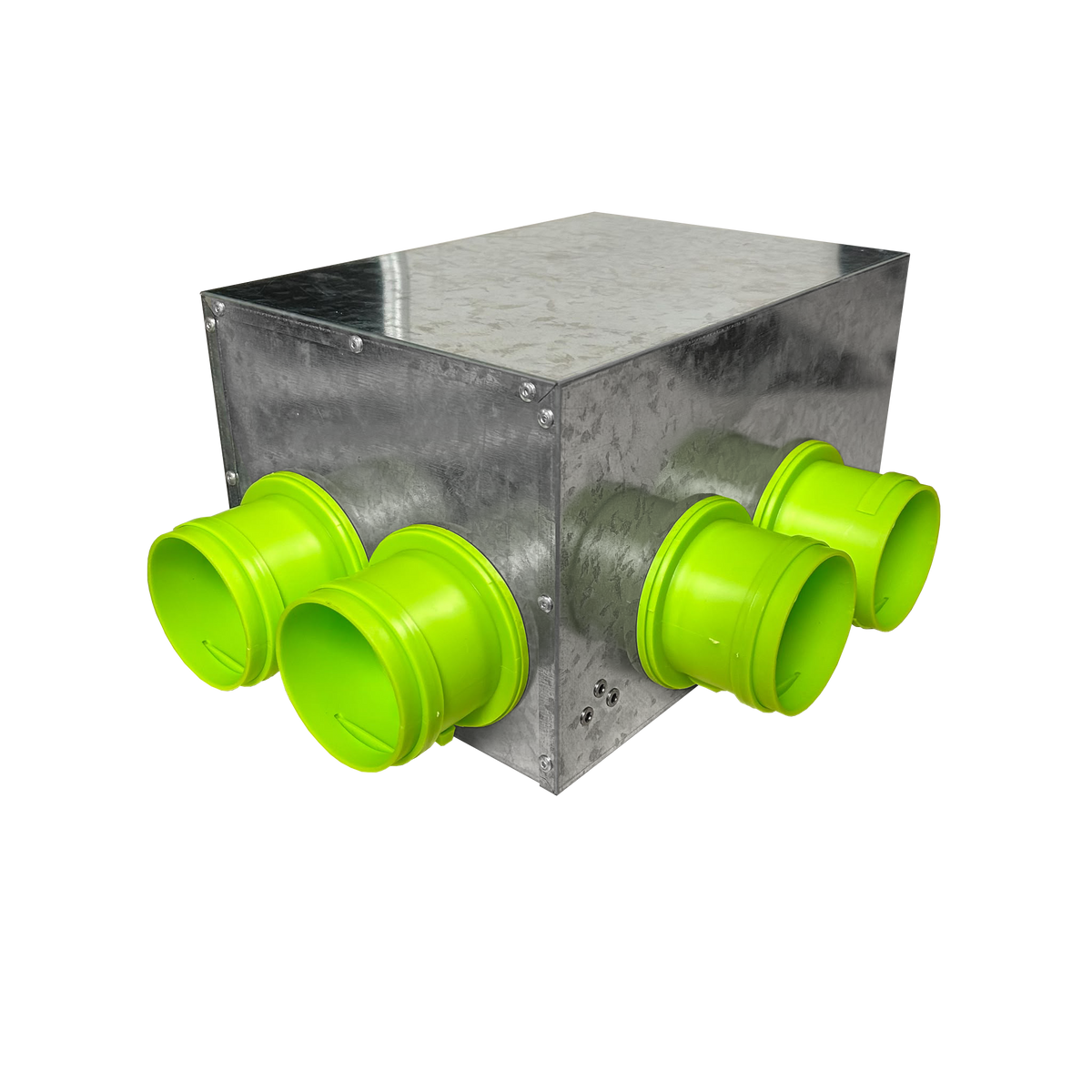

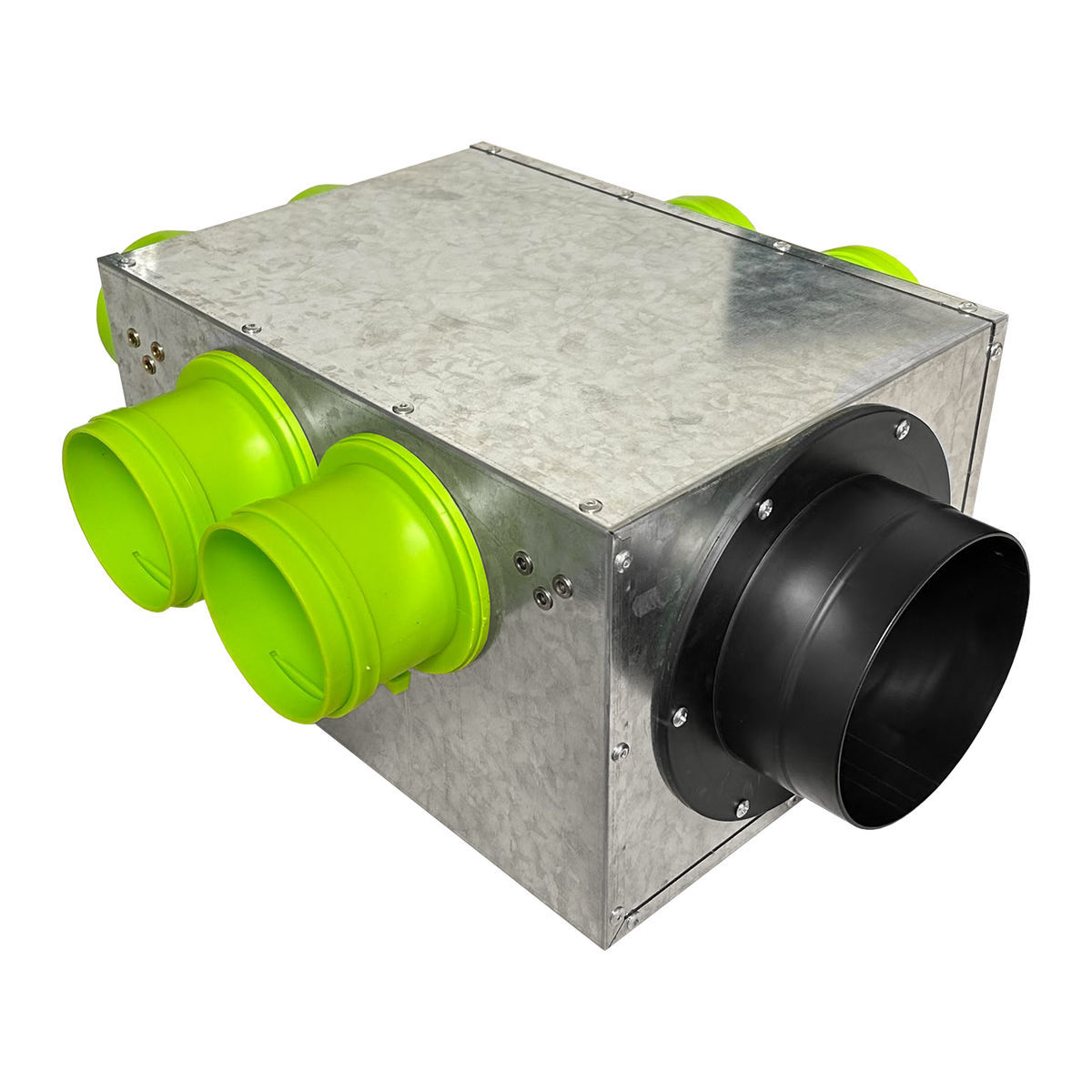

VS 125 - 6 pt rear entry insulated box

Product Part Number

P39A

Product Overview

The VS 125 – 6 Port Rear Entry Insulated Box is a compact air distribution box designed for use with 75mm radial ducting systems in residential and light commercial ventilation installations.

Featuring 6 x 75mm radial duct connections, the box provides a central distribution point between the main ventilation ductwork and individual room duct runs. It is ideal for MVHR and other mechanical ventilation systems, helping create a neat and organised radial duct installation.

Manufactured from galvanised steel with internal acoustic insulation, the distribution box is designed to help reduce noise transmission through the ventilation system. Its compact 320 x 230 x 195mm construction makes it particularly suitable for installation within ceiling voids, service spaces and other areas where installation space is limited.

Key Features

• 6-port air distribution box
• Designed for 75mm radial ducting
• Rear-entry main duct connection
• Internally insulated for improved acoustic performance
• Galvanised steel construction
• Compact design for restricted installation spaces
• Suitable for MVHR and mechanical ventilation systems
• Provides a central connection point for multiple radial duct runs
• Suitable for ceiling voids and service areas

Technical Specification

Product: VS 125 – 6 Port Rear Entry Insulated Box
Radial Connections: 6
Radial Connection Diameter: 75mm
Entry Type: Rear Entry
Width (A): 320mm
Depth (B): 230mm
Height (C): 195mm
Main Connection (D): Ø125mm
Radial Connection (E): Ø75mm
Body Material: Galvanised Steel
Insulation: Internal Acoustic / Soundproof Insulation
Duct Type: Semi-Rigid Radial Ducting
Suitable Duct Size: 75mm
Application: Air Distribution
Suitable Systems: MVHR / Mechanical Ventilation Systems
Installation Location: Ceiling Voids, Service Voids and Similar Concealed Spaces
