Zehnder Caladair Silvertop 52 First Eco Commercial MVHR Unit
Zehnder Caladair Silvertop 52 First Eco Commercial MVHR Unit
SKU : KCDF028787
Overview
SILVERTOP™, self-regulating energy recovery unit, high efficiency >90% (EN308), for offices and industrial applications in ventilation and energy recovery.In Stock
Couldn't load pickup availability
For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
Download Files
Description

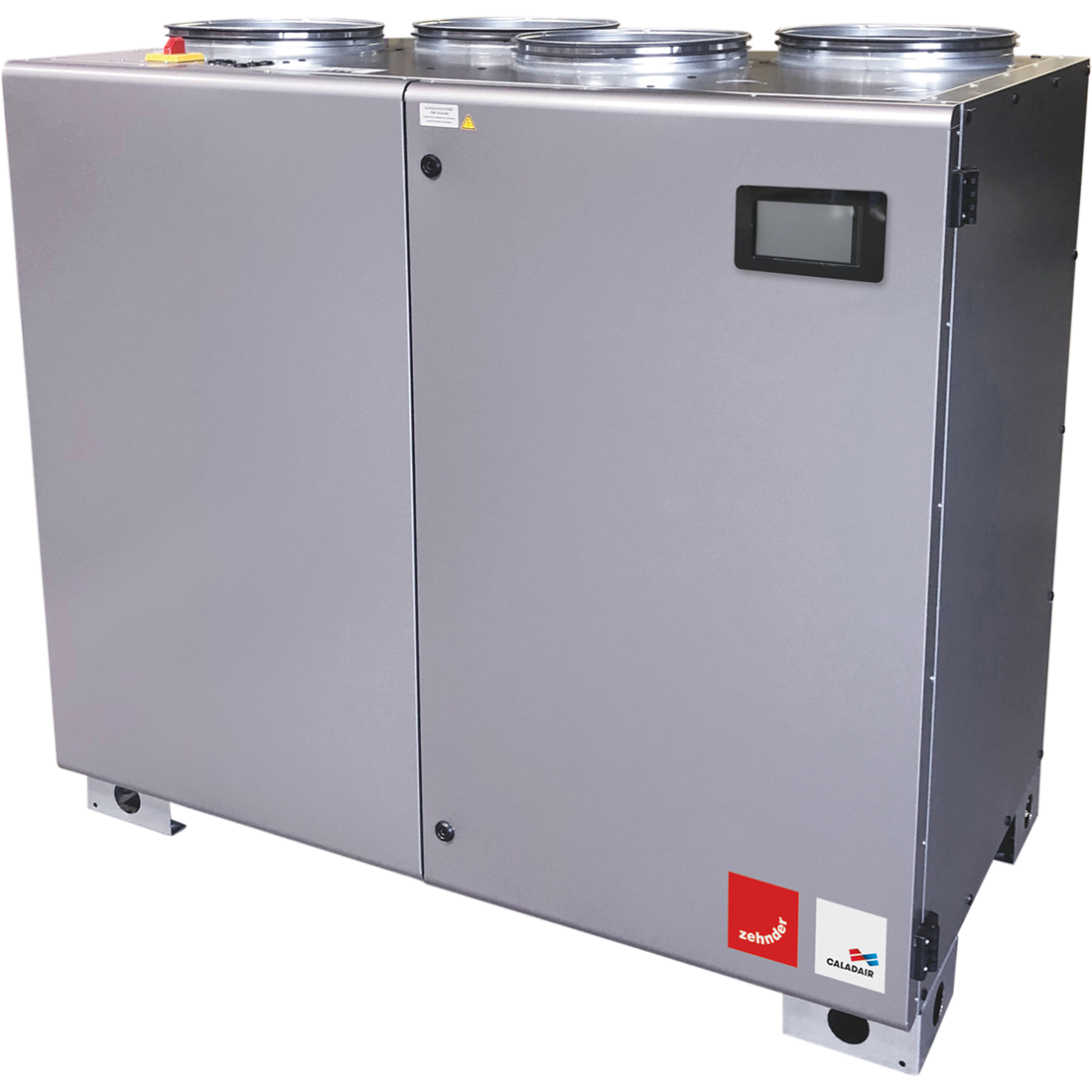

Zehnder Caladair Silvertop 52 First Eco Commercial MVHR Unit
Product Part Number: CAL11
Product Description
The Zehnder Caladair Silvertop 52 First Eco is a high-performance MVHR (Mechanical Ventilation with Heat Recovery) unit designed for commercial use. It provides efficient energy recovery, exceptional air quality, and long-lasting performance.
Additional Zoning Options
Optional extras are available for enhanced control over the zoning of your Caladair Commercial Units. Zones can be managed with the following solutions:
- PIR Sensor – Detects occupancy and increases airflow automatically
- CO₂ Sensor – Monitors CO₂ levels and boosts airflow when needed
- Wall Switch – Manually increases airflow with a simple switch press
- Light Activation – Boosts airflow when the light is turned on
-
BMS Control – Adjusts airflow and zones via Building Management System (BMS)
The electric duct dampers are adjustable to provide different airflow rates when open or closed.
Need more details on extras? Contact us at 028 2827 5150 for more information!
Heating & Cooling Options
Choose from a range of heating and cooling accessories:
- Electric Preheater – Prevents frost damage to the unit
- Electric Post Heater – Increases room temperature
- Water Heater – Can be used as either a preheater or post heater
Energy Exchanger
This unit features a highly efficient counter-flow plate energy exchanger, made of durable aluminum. It offers 90% or more heat recovery for optimal energy efficiency.
Motors
- Equipped with 2 x low-energy consumption EC motors for maximum efficiency
- Backward curved design for improved airflow and energy savings
- Includes heat & speed protection for added reliability
Installation
- Indoor Installation: Compact design with small footprint for easy installation in tight spaces
- Top Connections: Double-lip circular connectors (except size 52) for quick, airtight, and cost-efficient setup (no adapters required)
- Ductwork Recommendation: We suggest using Metal Spiral Ducting for superior strength and durability
Dimensions
| Model | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|
| Silvertop 52 | 2185 | 1520 | 1625 |
Accessories
We offer a full range of accessories including compatible ducting systems, controls, sensors, in-line silencers, and diffusers (for floor/wall/ceiling installations). Perfect for completing your setup!
Guarantee
Enjoy peace of mind with a 2-year parts guarantee.
Please Note:
- These units are built to order.
- For the lead time on the Caladair Neotime Commercial Units, please contact our sales team at 028 2827 5150 for more details.
