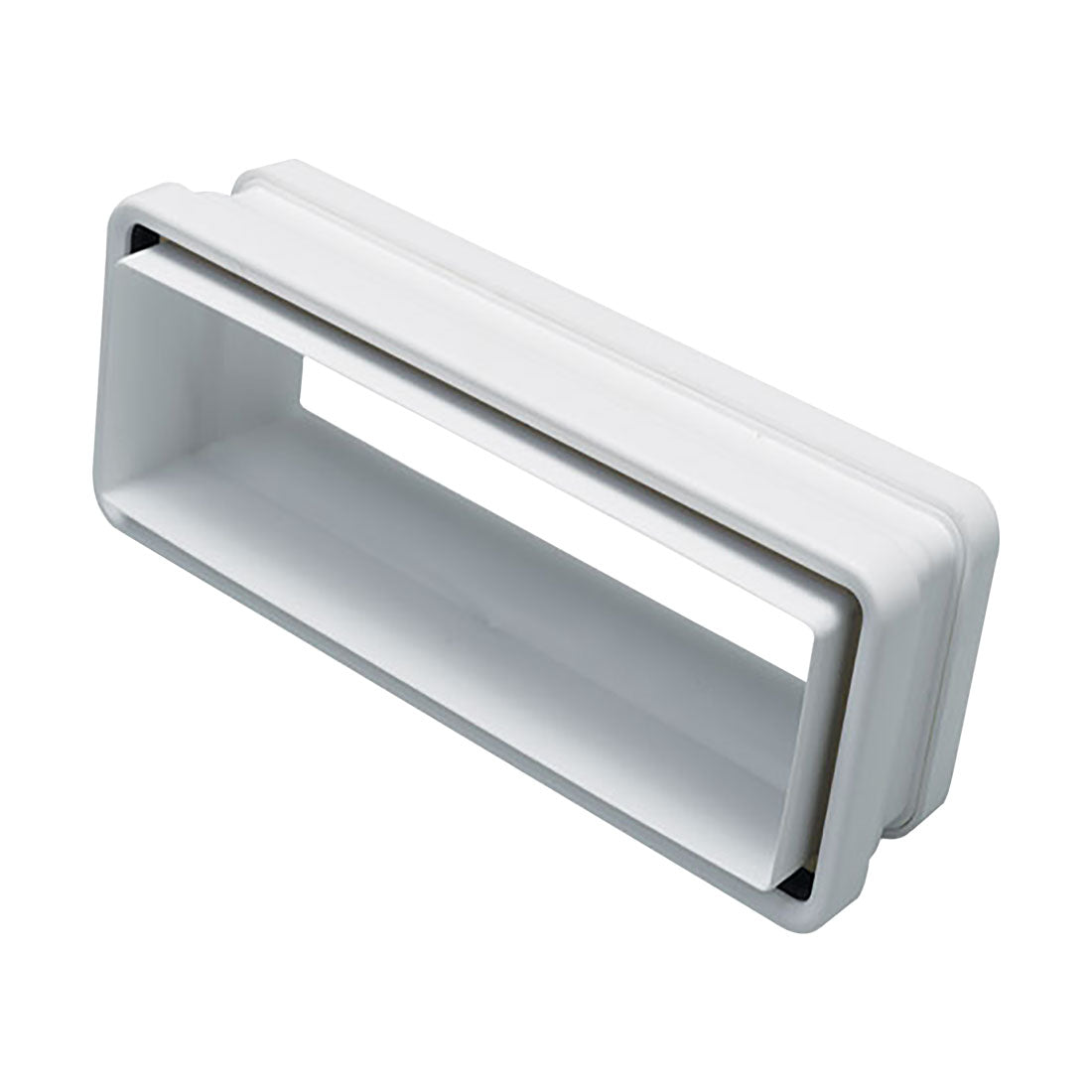

Rectangular Self Seal Coupling Duct to Fitting

Rectangular Self Seal Coupling Duct to Fitting

Product Part Number:

204x60mm Duct to Fitting Coupling - VSSC204DF
220x90mm Duct to Fitting Coupling - VSSC220DF

Used to connect:

• 204x60mm ducting to a 204x60mm fitting
• 220x90mm ducting to a 220x90mm fitting
  🔹 Zero air leakage
  🔹 No tape or sealant required
  🔹 Quick and easy to install
  🔹 Duct to duct fittings also available:
• 204x60mm - VSSC204DD
• 220x90mm - VSSC220DD

Our PVC ducting range is UK-manufactured with high-quality materials, providing durable products suitable for both domestic and commercial systems 🏠🏢
Perfect for ducting your ventilation system, kitchen extractor fan, bathroom fan, or in-line extract fans 🌬️
Ideal for long ductwork runs, used in:

• Whole house ventilation
• Passive stack vent
• Positive input
• Air conditioning
• HVAC
• Heat Recovery Systems

Performance:

Solid rigid ducting systems provide superior airflow performance compared to comparable sizes of rectangular or flexible PVC or aluminum ducts
Compliant with Part F Building Regulations 📜

Insulation of Ductwork:

Ducting in cold areas (e.g., loft spaces) should be insulated with 25mm thick insulation (thermal conductivity of 0.04W/(m.k) or less) to prevent condensation ❄️
If no loft space, insulated ducting is still required on intake and exhaust legs carrying cold air in warm spaces
Insulation can be achieved by wrapping PVC duct with a 25mm duct wrap that has a silver foil face or rockwool
Note: Bubble wrap is no longer acceptable in building control regulations 🚫

Available Sizes:

204x60mm ducting to 204x60mm fitting
220x90mm ducting to 220x90mm fitting

Note: For larger ductwork, we recommend using Metal Spiral ducting and fittings for superior strength 🔩
