Quiet-Vent 75mm 12 Point Adjustable Top Entry Distribution box 150mm spigot

Quiet-Vent 75mm 12 Point Adjustable Top Entry Distribution Box 150mm Spigot

Product Part Number

Quiet-Vent 75mm 12 Point Adjustable Top Entry Distribution Box - QV75-12150MTE

Product Overview

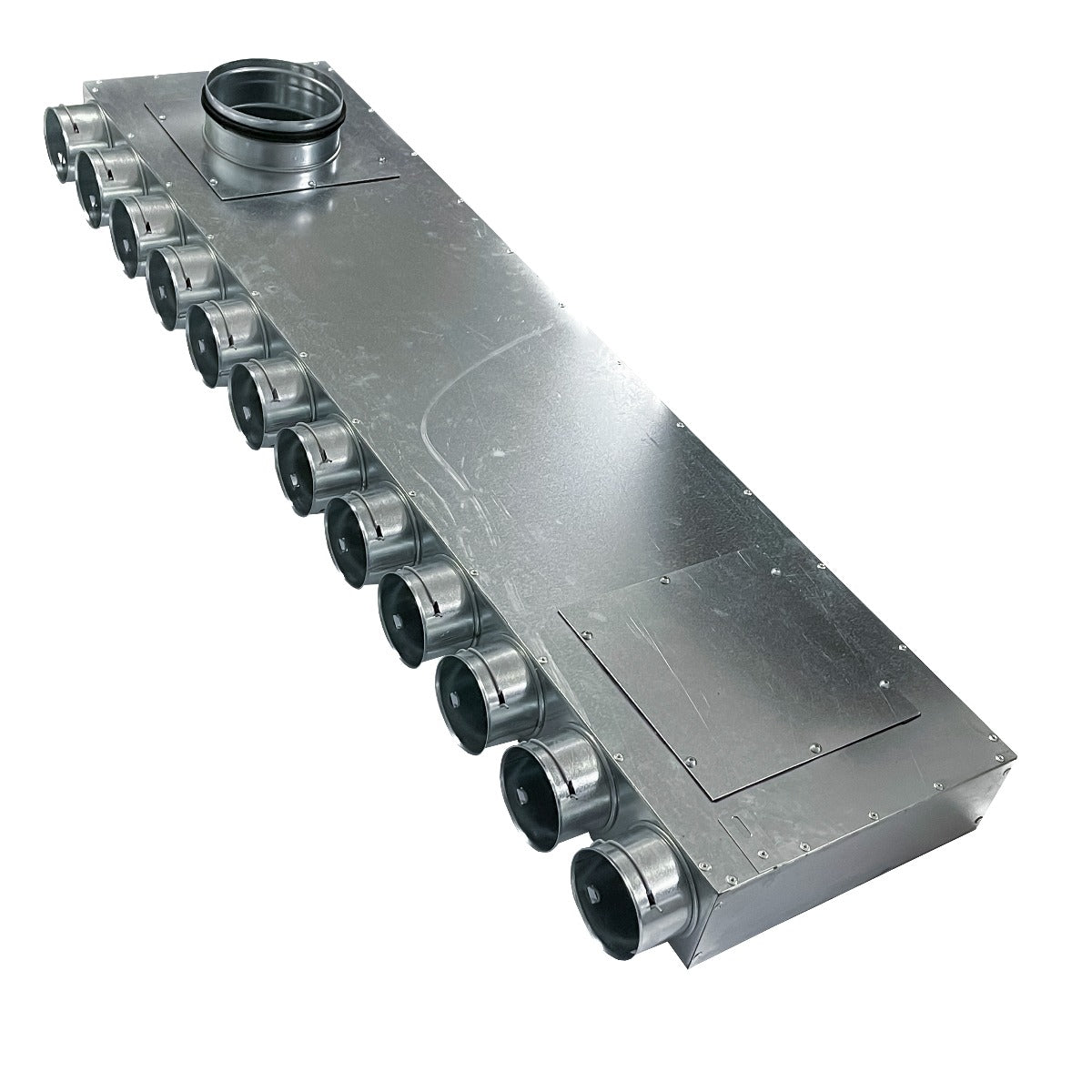

The Quiet-Vent 75mm 12 Point Adjustable Top Entry Distribution Box is designed for use in ventilation systems. It features a 150mm spigot and provides flexibility with adjustable points for connecting ductwork. This distribution box is ideal for installations in ceilings or floors, helping to distribute air effectively within a system.

Key Features

✔ 12 Adjustable Points – Allows for versatile connections in your ventilation system

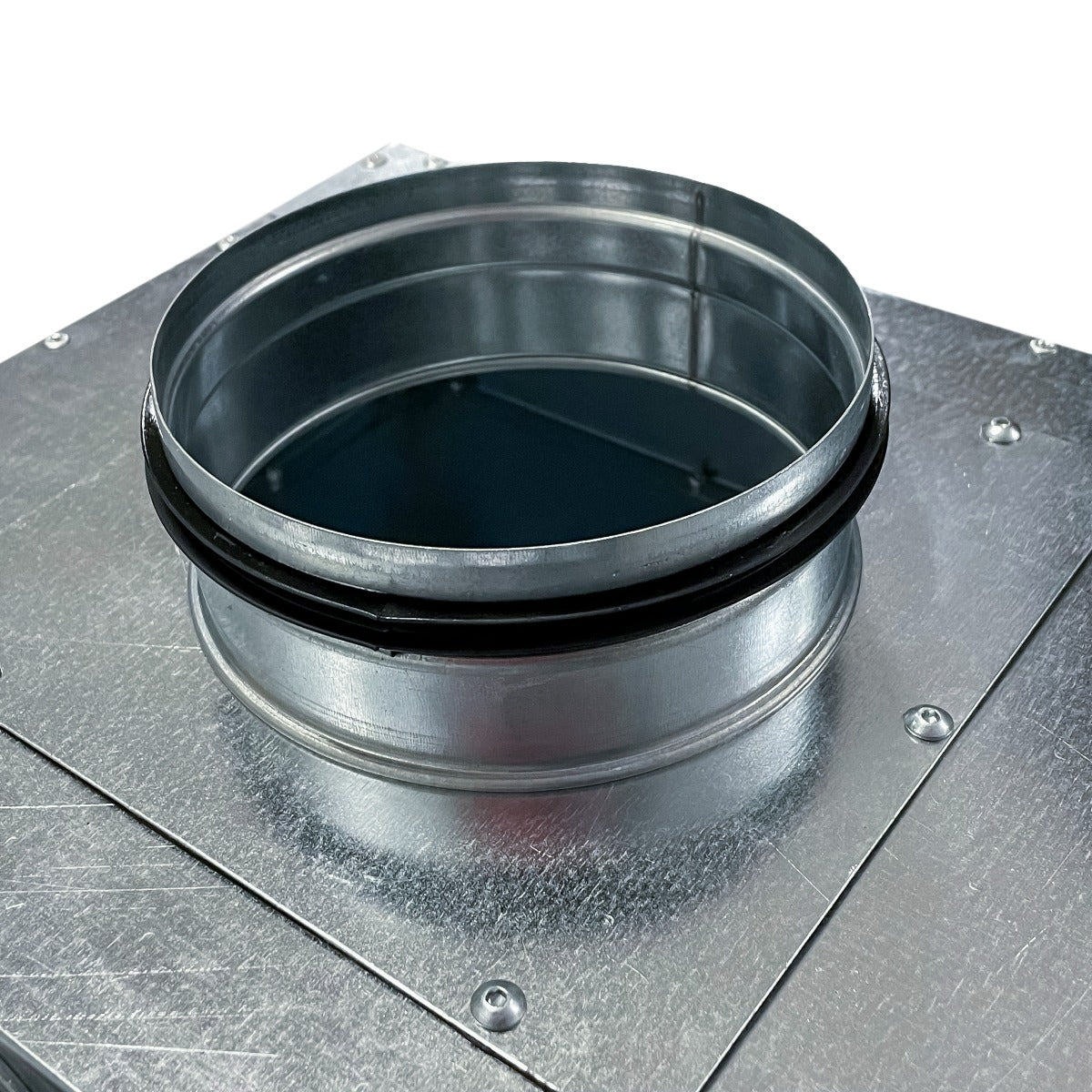

✔ 150mm Spigot – Compatible with systems requiring a 150mm spigot connection
✔ Sealing Rings Required – Ensures an airtight seal when used with the correct sealing rings
✔ Blanking Caps – All unused vents must be sealed with blanking caps

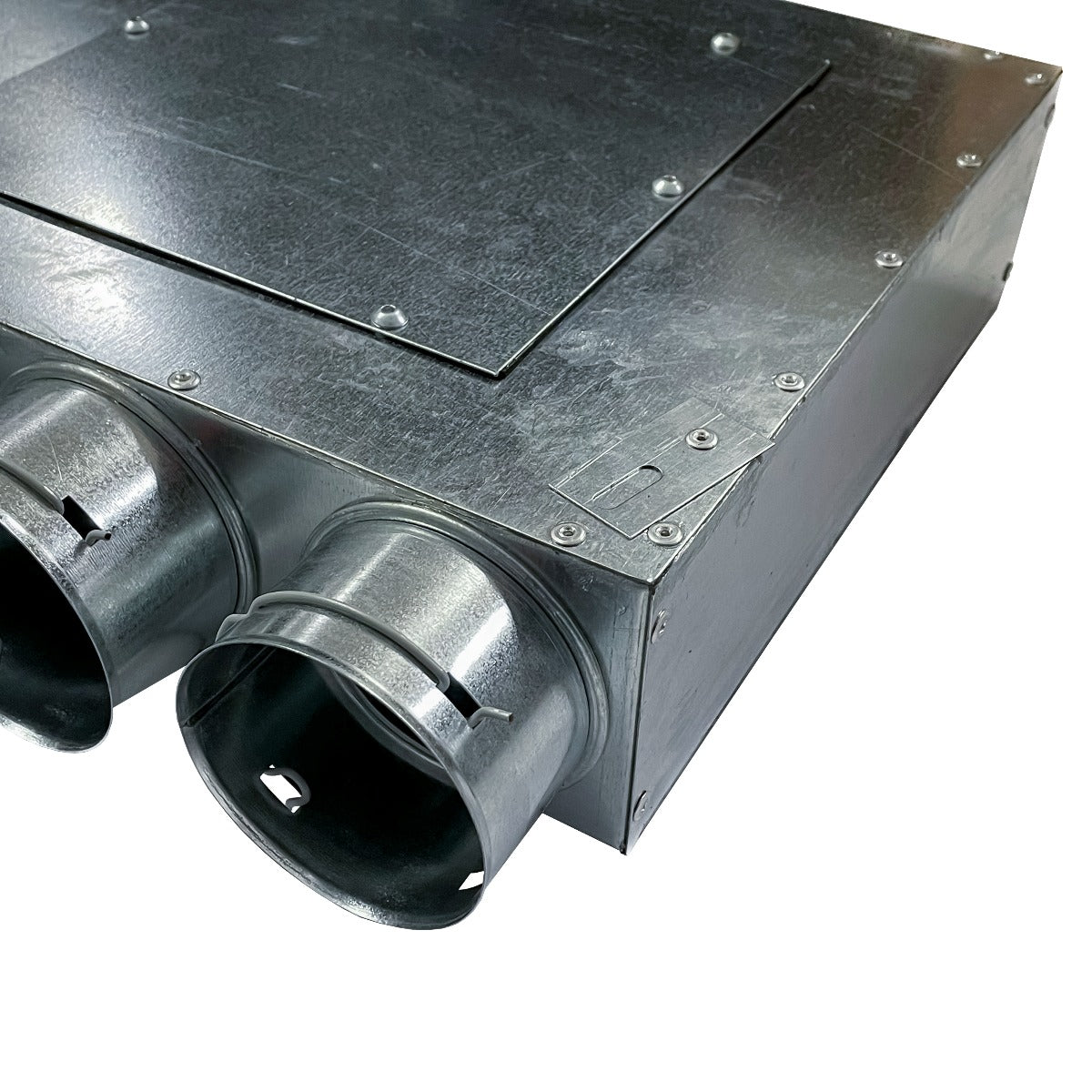

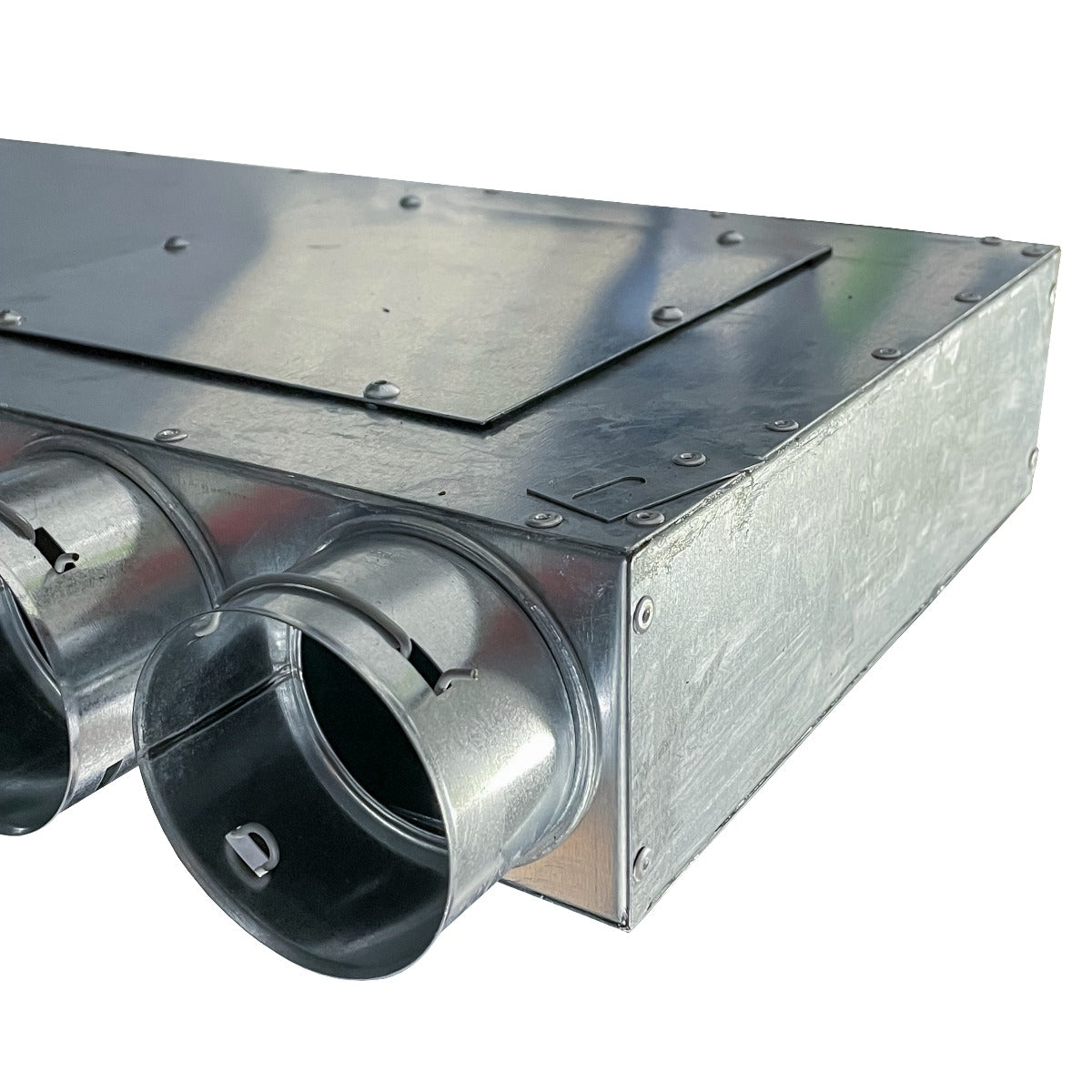

✔ Flexible Installation – Secure the distribution box to a ceiling or floor, and easily engage the clips with radial pipe

Dimensions

• Length (L): 1200mm
• Width (W): 300mm
• Height (H): 90mm

Installation & Maintenance

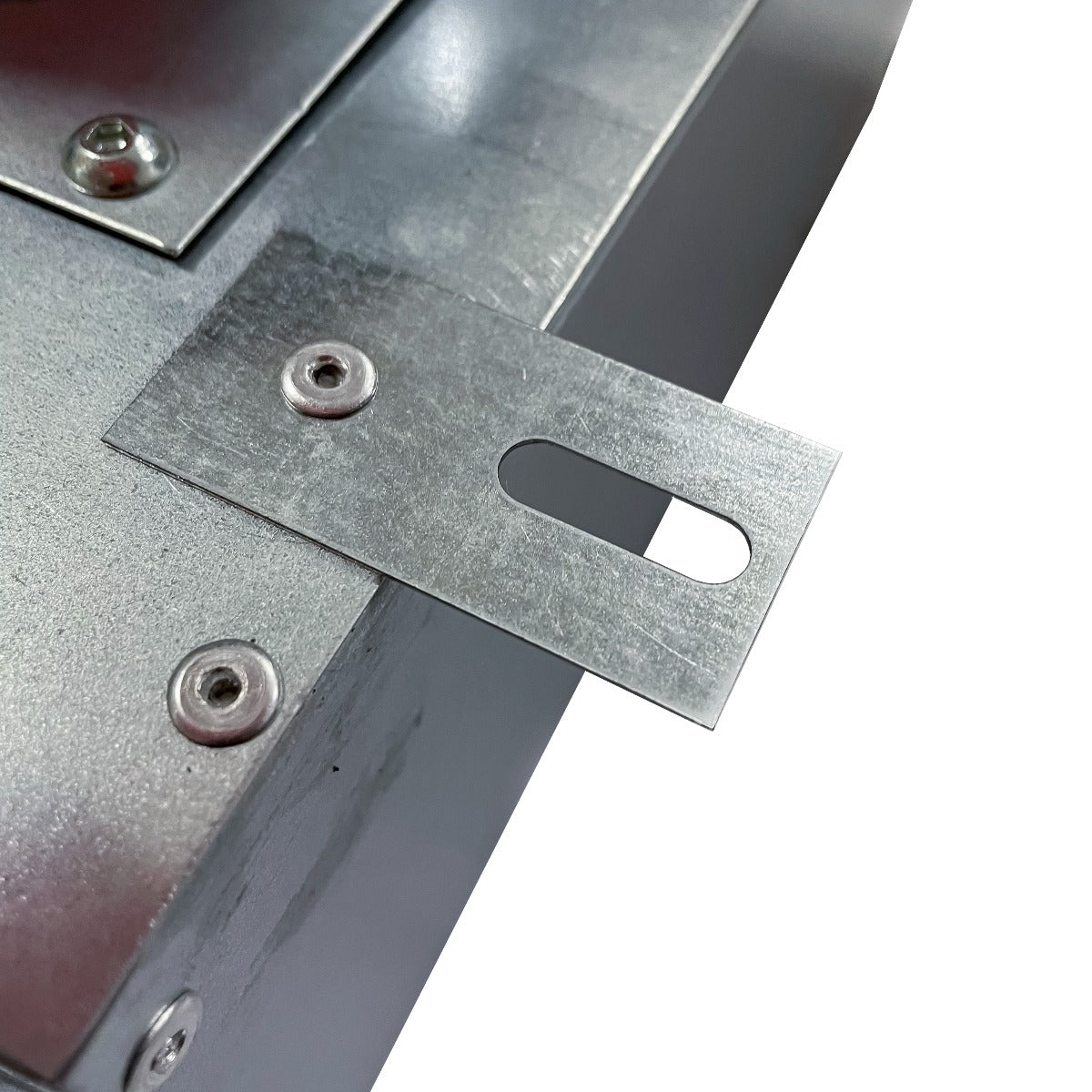

• Installation: Secure the distribution box to the ceiling or floor. Insert the radial pipe until the clips engage with the pipe, ensuring a secure fit.
• Sealing: Sealing rings are required for proper installation, and unused vents should be covered with blanking caps.
