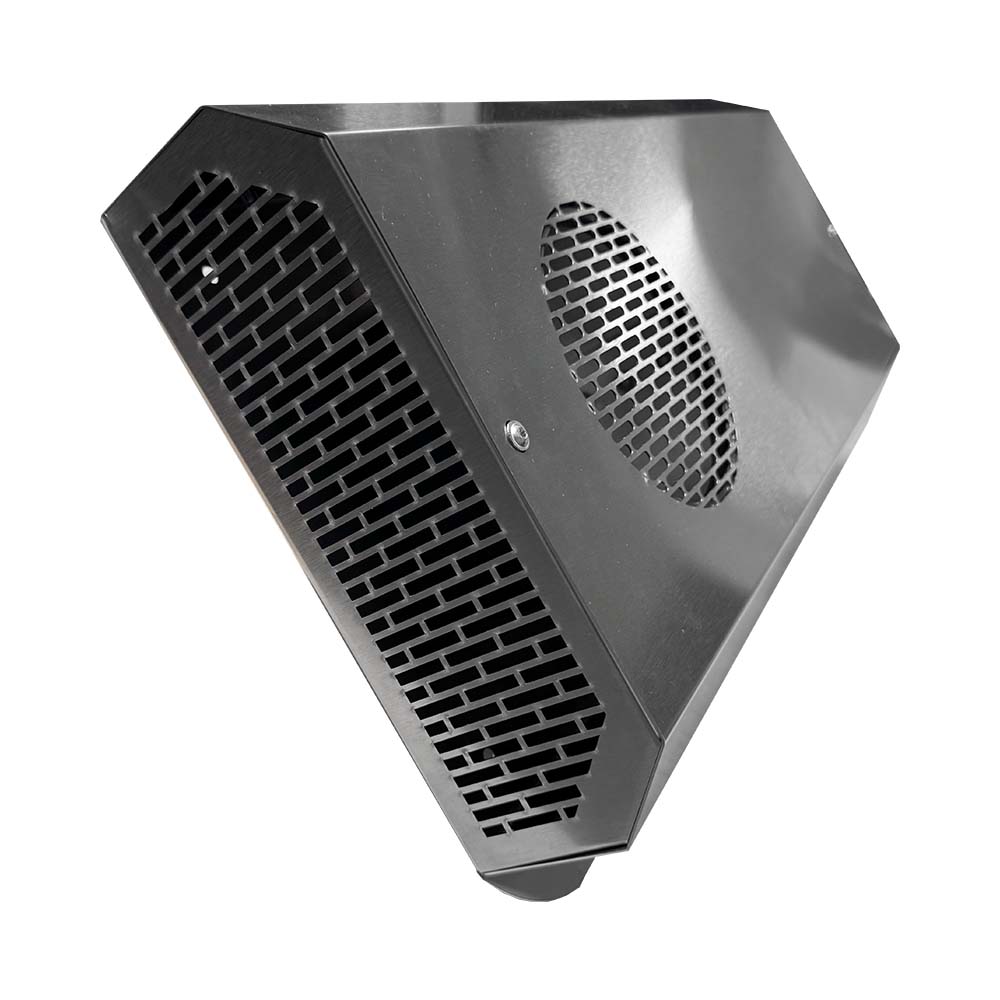

• Quiet-Vent 2 in 1 external wall grille combining air intake and exhaust ventilation in a single stainless steel outdoor unit

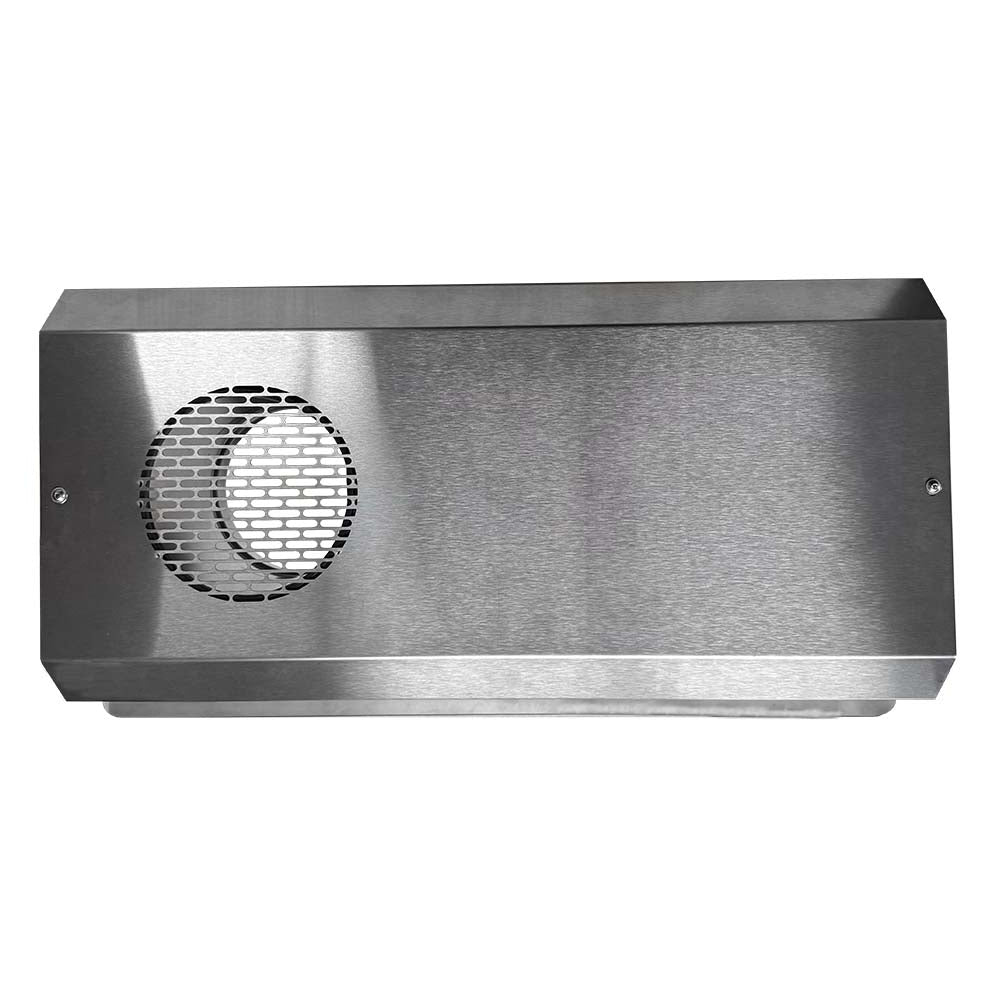

  • Close-up of Quiet-Vent dual airflow wall grille showing integrated inlet and outlet separation design for MVHR systems
  • External view of Quiet-Vent 2 in 1 wall grille installed on building façade for balanced ventilation airflow exchange

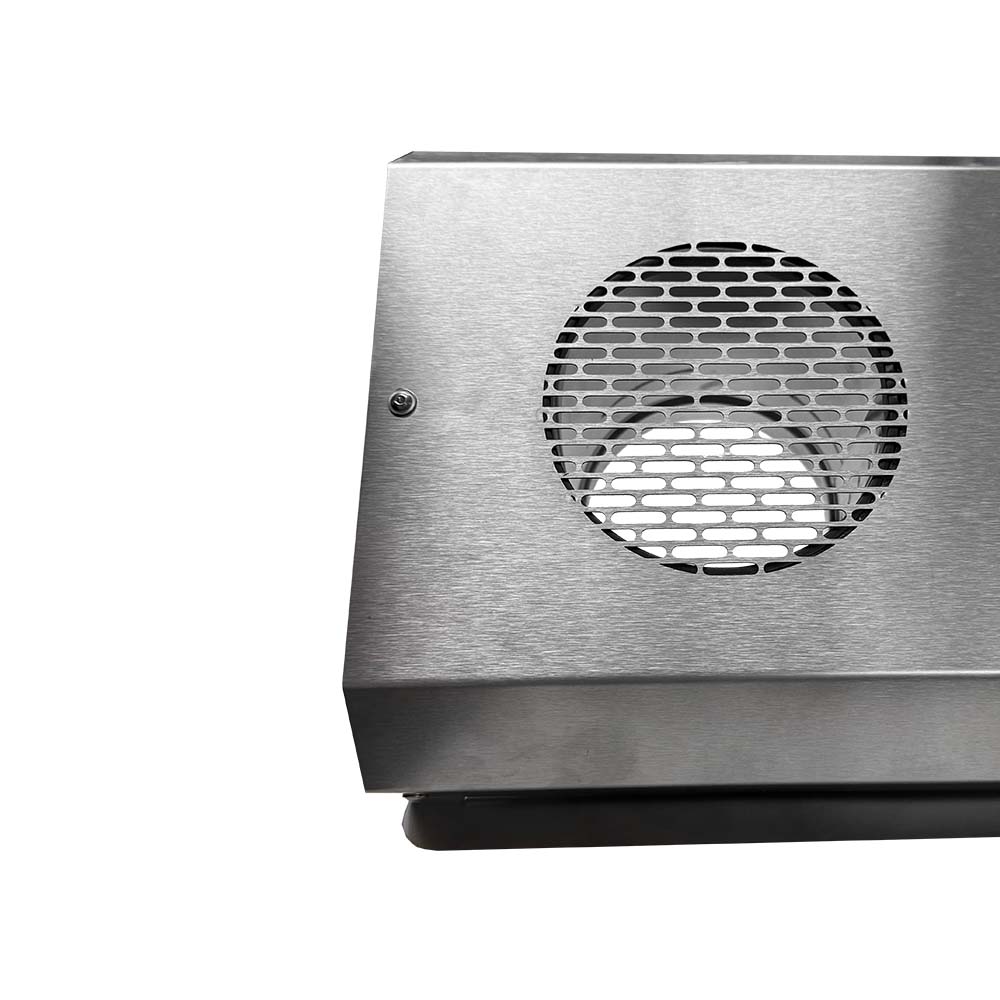

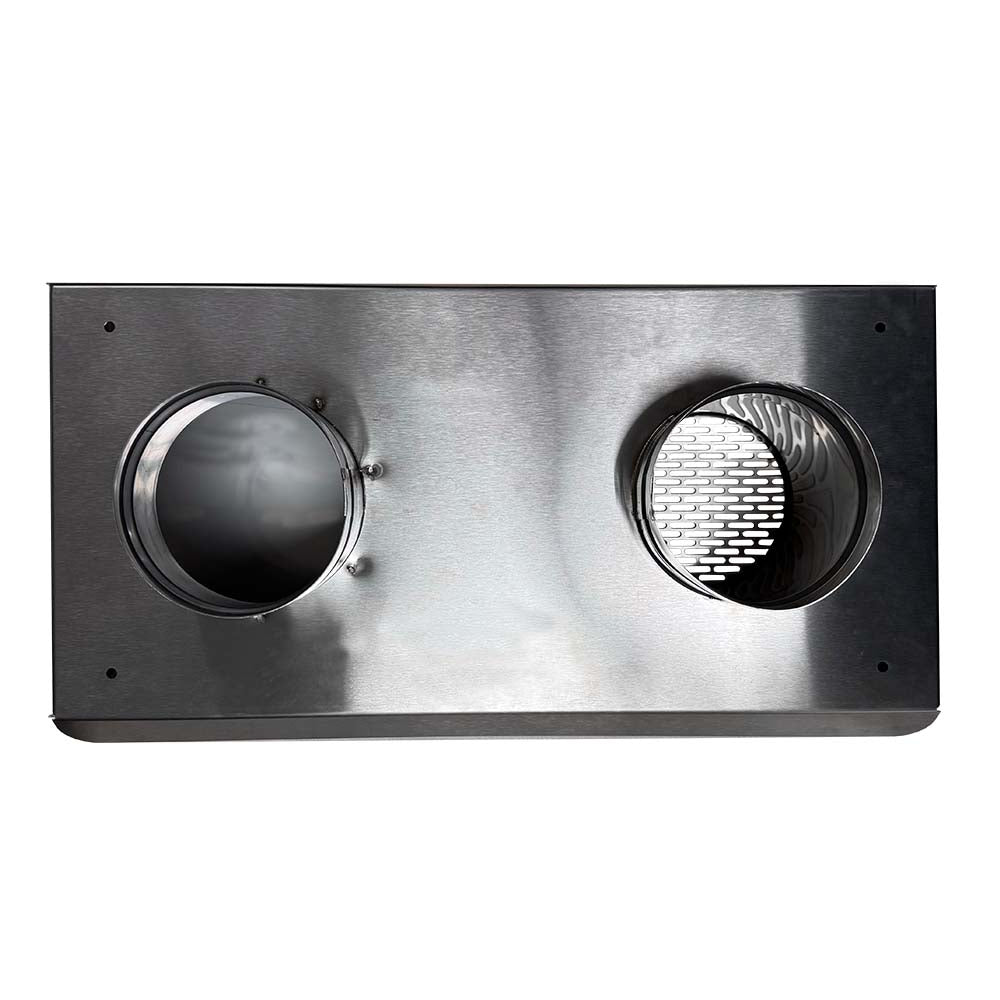

  • Detail of stainless steel Quiet-Vent external grille with rain protection and duct connection spigots at rear

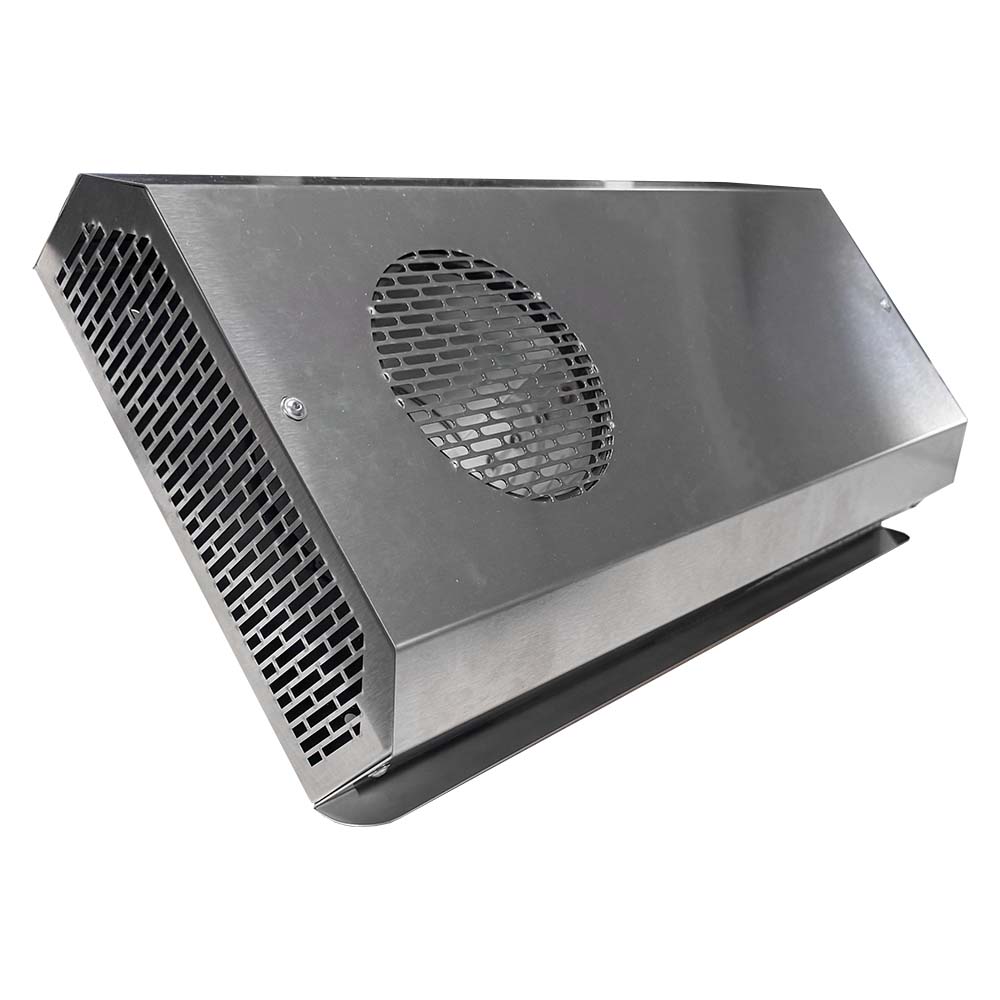

  • Quiet-Vent 2 in 1 wall grille mounted on exterior wall for efficient residential MVHR intake and extract ventilation
1 6

Quiet-Vent 2 in 1 External Wall Grille

Quiet-Vent 2 in 1 External Wall Grille

SKU : QV-2IN1SSG-125

Overview

The 2 in 1 external terminal wall grille combines the outdoor air and exhaust air connection in one compact product
£159.67 GBP Excl. VAT: £133.06 GBP

In Stock
  • For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
View full details

Description

2 in I external wall grille

The 2 in 1 external terminal wall grille combines the outdoor air and exhaust air connection in one compact product

Manufactured of stainless steel with options of powder coating in white (RAL9010) and Black (RAL9005)-

Designed to allow installation of external pipes in a compact location with minimal air recirculation

Available in duct diameter connections 125mm, 150mm 180mm

Key features

  • Time and space saving
  • Stainless steel construction
  • 125,150, 180mm connections
  • Male spigots at rear for superior airtightness
  • Four fixing holes for wall mounting
  • Easy to disassemble for easy installation
  • Compact solution
  • Minimal airflow recirculation
  • Low pressure loss
  • Rain protection

*Powder coating is recommended in areas of salt corrosion

Dimensions

QV-2IN1SSG-125 L-522 x H-273 x W-92

QV-2IN1SSG-150 L-522 x H-273 x W-92

QV-2IN1SSG-180 L-602 x H-322 x W-120
