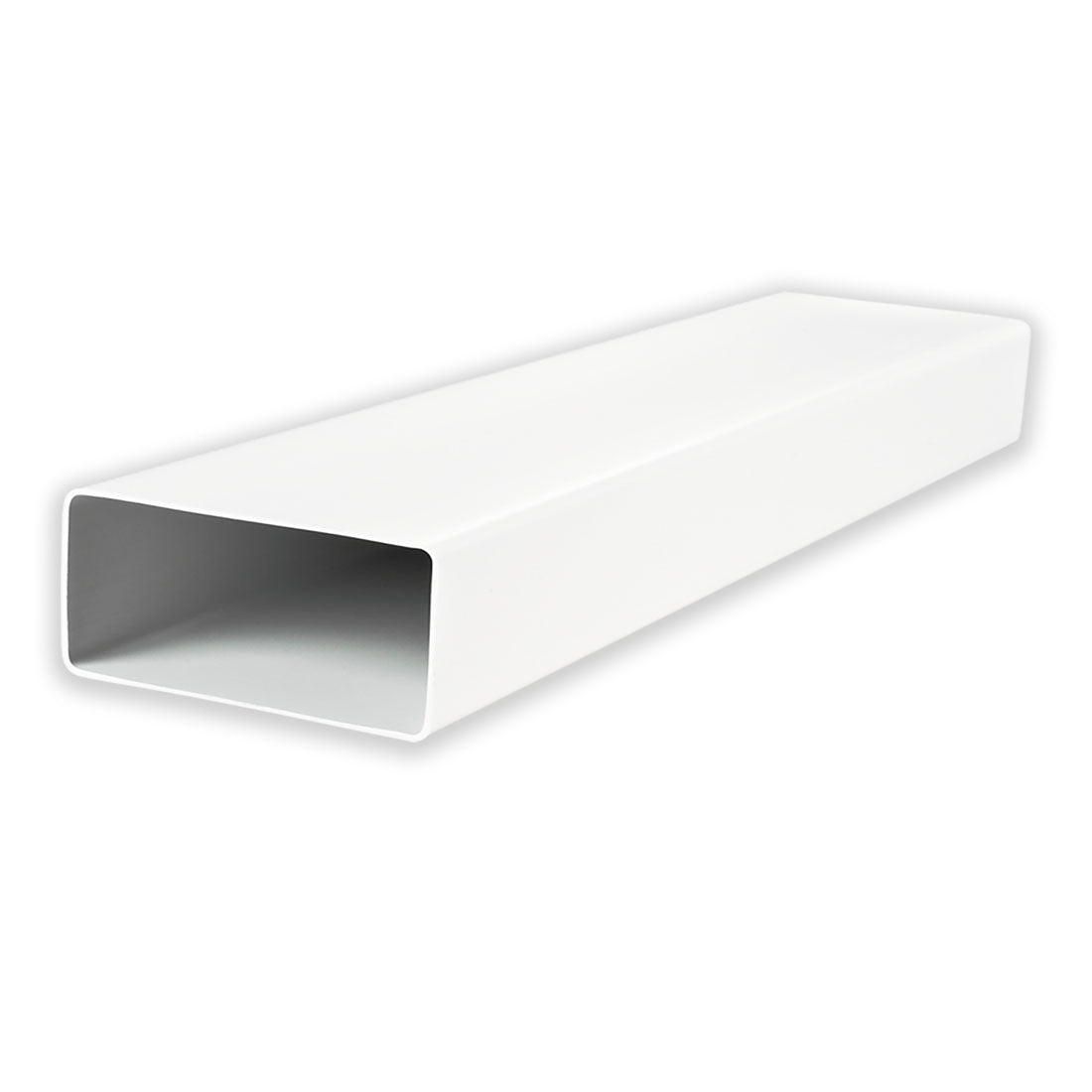

PVC Flat Channel Rectangular Ducting
Product Part Number
100x54mm Flat Channel Ducting - P-110-1
204x60mm Flat Channel Ducting - P-204-1
220x90mm Flat Channel Ducting 1.5m - P-220-1.5
Description
Top Quality UK Manufactured ducting supplied in one-meter length for ease of transport and installation
Our range of plastic ducting is UK manufactured with top quality materials that will supply a durable product suitable for domestic and commercial systems
It is perfectly suited for ducting your Ventilation system, Kitchen extractor fan, bathroom fan or In-Line Extract Fans
It can be used as a part of a long ductwork run for a variety of purposes including whole house ventilation, passive stack vent, positive input, air conditioning, HVAC, and Heat Recovery Systems
(2-meter lengths are available in pallet deliveries)
Please note that any small orders below 20 meters may only be supplied in one meter lengths (excluding complete orders over £500)
Compatibility
Compatible with most manufactures including
|
|
110x52mm |
204x60mm |
220x90mm |
|
Verplas |
VKC294 |
VKC5604 |
VKC5704 |
|
Vent-Axia |
436599 |
436617 |
403025 |
|
Manrose |
40100 |
55100 |
- |
|
Domus |
010 |
510 |
910 |
|
Nuaire |
PVC010WH |
PVC510WH |
- |
Performance
Solid Rigid ducting is suitable for use in all buildings to provide superior airflow performance vs. comparative size rectangular or flexible pvc or Aluminium duct. Suitable to use in compliance with Part F Building Regulations.
Installation
To provide the best performance in airtightness and durability we recommend You provide greater mechanical strength to a joint by using a combination of Plastic Ducting Sealant and Aluminium Duct Sealing Tape
- Apply Duct sealant to the pipe connections
- Push together
- Apply Aluminium Duct Sealing Tape over joint
Alternatively, you can use self-sealing fittings that speed up the time taken by up to 70% and can be easily dismantled
Insulation of Ductwork
It is important that any ducting located in a cold area (e.g. loft space) to be insulated. The insulation needs to be the equivalent of 25mm thick and have a thermal conductivity of 0.04W/(m.k) or less.
This ensures that condensation doesn’t form due to the difference in air temperature inside the duct when compared to the air temperature in the cold space.
If you don’t have a loft space there is still a need for insulated ducting on the intake and exhaust legs, as they will be carrying cold air in a warm space. The level of insulation can be achieved by wrapping PVC duct in a layer of 25mm duct wrap that has a silver foil face on a 25mm rockwool
It is also worth noting that foil wrap with air bubbles (bubble wrap) is no longer applicable in building control regulations
Sizes
PVC Rectangular Ducting is available in 110x53mm,204x60mm,220x90mm if you require larger ductwork we recommend you use Metal Spiral ducting and fittings due to superior strength
