Mitsubishi Lossnay-VL Units
Product Part Number

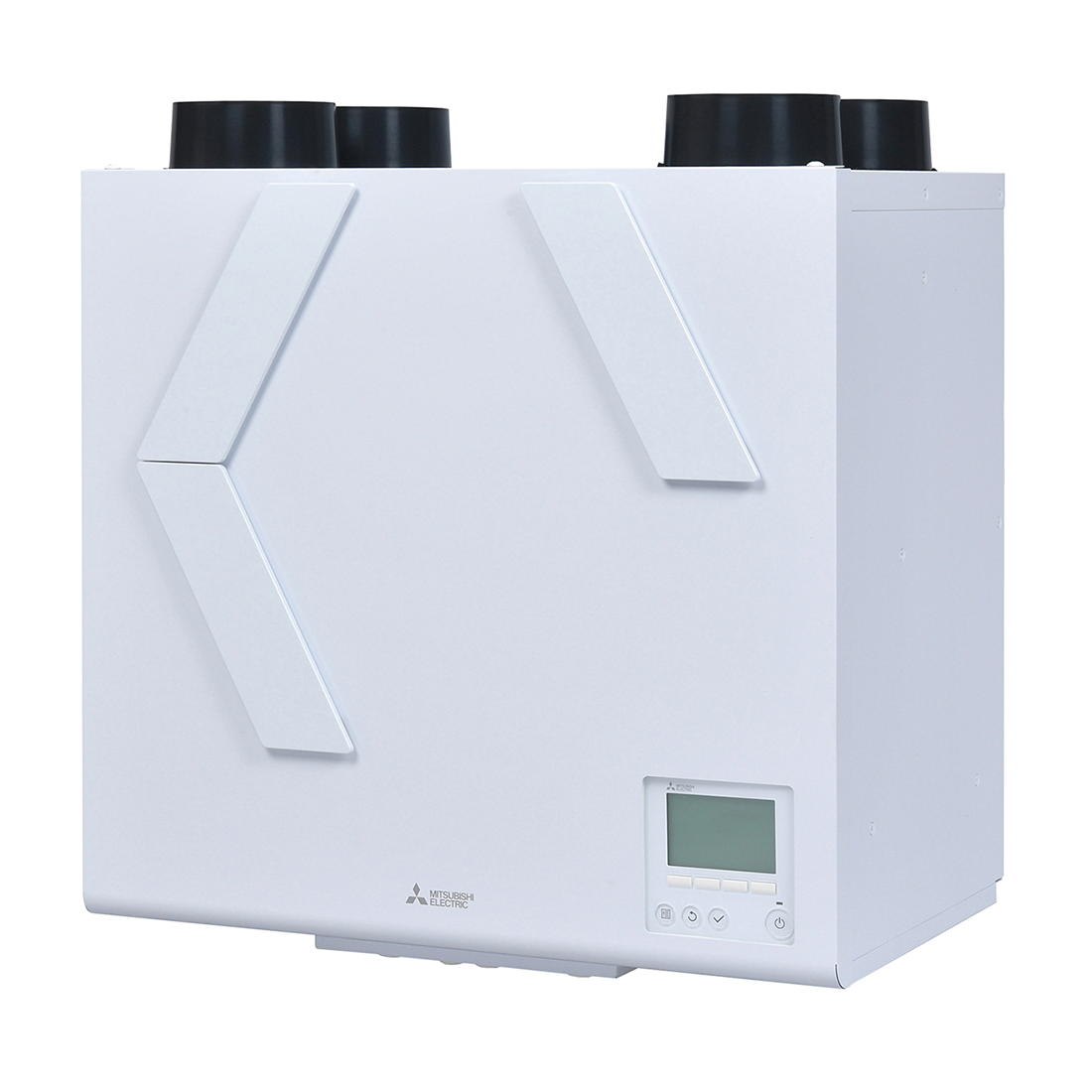

Mitsubishi Lossnay VL-250 (L) wall mounted residential MVHR with bypass and digital controller - LEFT - VL-250CZPVU-L-E
Mitsubishi Lossnay VL-250 (R) wall mounted residential MVHR with bypass and digital controller - RIGHT - VL-250CZPVU-R-E
Description
The Mitsubishi VL-250 is a quality unit with the advantage of a unit mounted controller with 5 years part warranty and provides a maximum flow rate of 250m3/hr suitable for a house up to 150 m2 floor area with up to 3 kitchens & bathrooms
BPC Ventilation are the largest independent MVHR specialists and supply this unit with up to a 5-year parts warranty* and lifetime technical support on our top-quality systems
Filtration
- 2 x G3 filters are fitted to the unit that are easy and inexpensive to replace
- Optional ePM2.5 50% to air supply
- Optional NOX 90% filter to air supply
CONTROL OPTIONS
The Mitsubishi VL units are controlled by one of the following:
- Control Via Unit mounted digital controller
- 0-10v sensor
- Volt free contacts
- Additional external sensors achieving on-demand ventilation
- Switched live signal from remote switches
- Optional wall controller (P-RCC-E)
- Optional Wi-Fi integration to phone (MAC-5671F-E)
|
Optional Wi-Fi with additional accessory - MAC-5617F-E |
|
Summer By-Pass
The VL range of units have a 100% summer by-Pass
If the indoor temperature Intake exceeds 25°C and the outdoor temperature is within comfort zones the summer by-pass is opened automatically to help provide a comfortable indoor temperature
|
Heat Exchanger This unit has a high-quality PVC counterflow heat exchanger with up to a 90% thermal efficiency protected with high-capacity filters on each side The heat exchanger is easy to remove for maintenance and any accumulated condensation is easily dispersed via a drain at the bottom of the unit |
 |
Frost Protection
In the event of the intake air temperature at the unit dropping below the predetermined set point (-3°C as standard) the supply fan will reduce to minimum speed, once the temperature rises above the set point the fan will return to its commissioned speed.
Frost protection will only activate after ten days of continuous run time.
Orientation
The Mitsubishi Lossnay VL units can be right or left-handed and correct orientation should be checked before purchase
Construction
Manufactured of powder coated galvanised steel outer cover for durability and an inside EPP lining for quietness and efficiency
Mounting
The units are wall mounted as standard and are supplied with a wall bracket
