Rectangular Ducting Elbow Bend (Spigot)
Product Part Number
110x54mm Elbow Bend - S110
204x60mm - Fixed Spigot - SP204-125
204x60mm - Fixed Spigot - SP204-150
220x90mm - Fixed Spigot - SP220-125
220x90mm - Fixed Spigot - SP220-150
Description

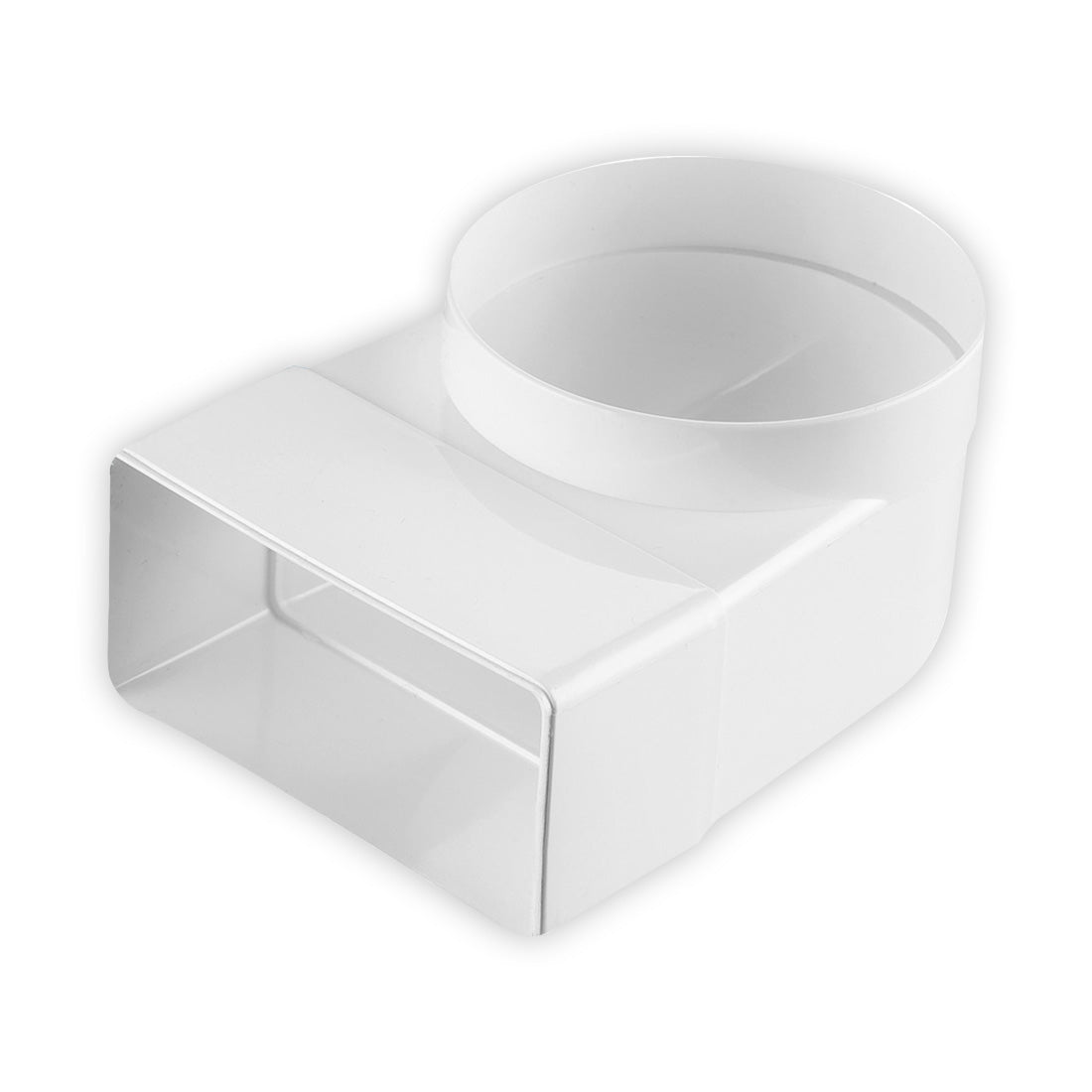

90 degree elbow bend which converts rectangular PVC ducting to round PVC ducting in order to install a air valve or to convert to round pipe.
Our range of plastic ducting is UK manufactured with top quality materials that will supply a durable product suitable for domestic and commercial systems
It is perfectly suited for ducting your Ventilation system, Kitchen extractor fan, bathroom fan or In-Line Extract Fans
It can be used as a part of a long ductwork run for a variety of purposes including whole house ventilation, passive stack vent, positive input, air conditioning, HVAC, and Heat Recovery Systems.
Performance
Solid Rigid ducting is suitable for use in all buildings to provide superior airflow performance vs. comparative size rectangular or flexible pvc or Aluminium duct. Suitable to use in compliance with Part F Building Regulations.
Installation
To provide the best performance in airtightness and durability we recommend you provide greater mechanical strength to a joint by using a combination of Plastic Ducting Sealant and Aluminium Duct Sealing Tape
- Apply Duct sealant to the pipe connections
- Push together
- Apply Aluminium Duct Sealing Tape over joint
Alternatively, you can use self-sealing fittings that speed up the time taken by up to 70% and can be easily dismantled
Insulation of Ductwork
It is important that any ducting located in a cold area (e.g. loft space) to be insulated. The insulation needs to be the equivalent of 25mm thick and have a thermal conductivity of 0.04W/(m.k) or less.
This ensures that condensation doesn’t form due to the difference in air temperature inside the duct when compared to the air temperature in the cold space.
If you don’t have a loft space there is still a need for insulated ducting on the intake and exhaust legs, as they will be carrying cold air in a warm space. The level of insulation can be achieved by wrapping PVC duct in a layer of 25mm duct wrap that has a silver foil face on a 25mm rockwool
It is also worth noting that foil wrap with air bubbles (bubble wrap) is no longer applicable in building control regulations
Availabe Sizes
- 110x45mm to 100mm Spigot
- 204x60mm to 125mm Spigot
- 204x60mm to 150mm Spigot
- 220x90mm to 125mm Spigot
- 220x90mm to 150mm Spigot
NOTE: If you require larger ductwork we recommend you use Metal Spiral ducting and fittings due to superior strength
