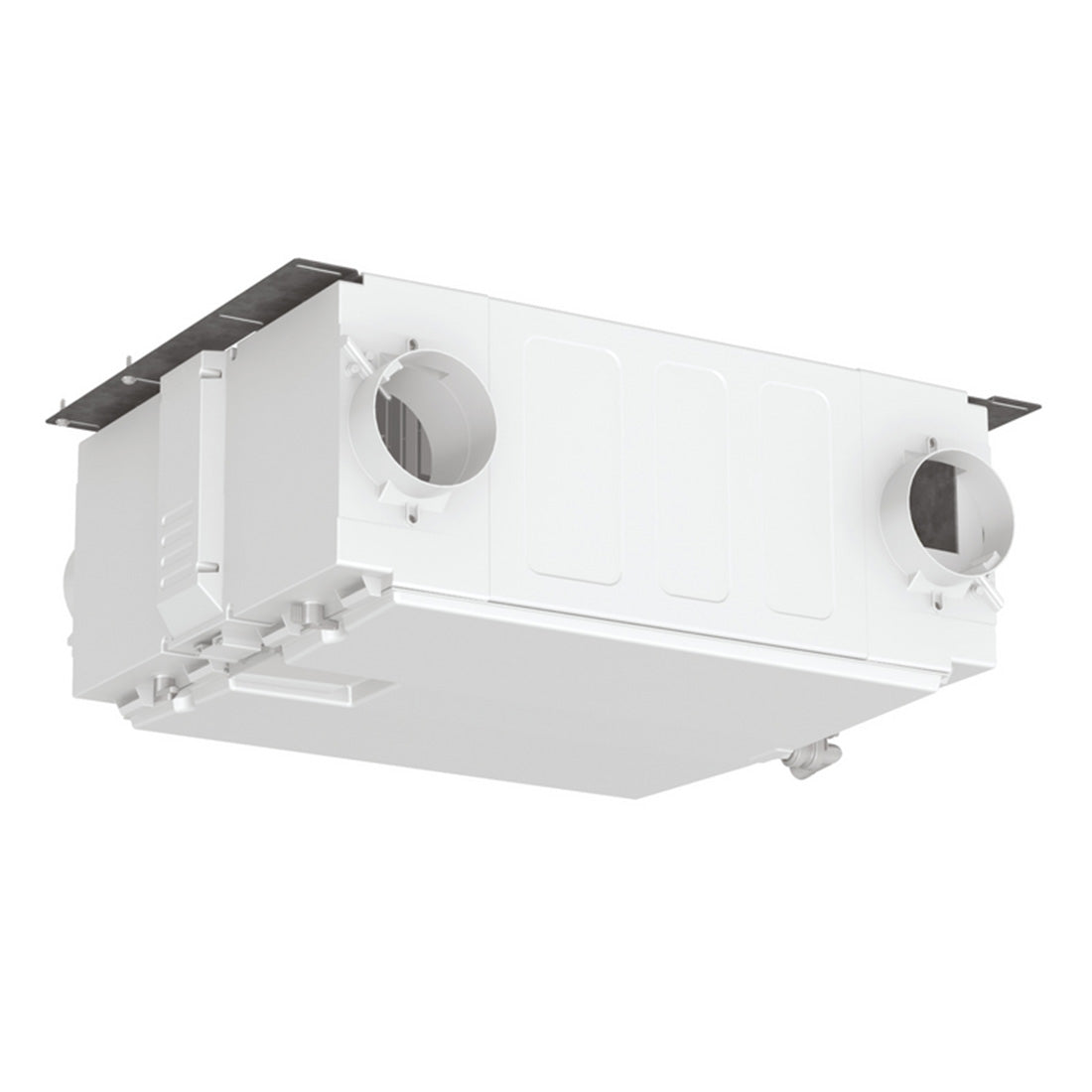

Zehnder ComfoAir 155 CM for ceiling mounting

Zehnder ComfoAir 155 CM for Ceiling Mounting

Product Part Number:

• CA155CM-GB

The Zehnder ComfoAir 155 CM is a ceiling-mounted MVHR unit designed for properties up to 150m² and manufactured in Germany to high standards.
This unit comes with an A+ energy rating, making it highly efficient for your home or business.

BPC Ventilation is the largest independent MVHR specialist, offering lifetime technical support for all our premium systems.

🌟 Key Features 🌟

• Suitable for home sizes up to 150m²
• Airflow rate @ 100Pa: 285m³/h
• 93% heat recovery efficiency for optimal performance 🌱
• 100% full and filtered modulating summer bypass ❄️
• Internal humidity sensor for automatic adjustments
• Left- or right-hand configuration through software
• 100% variable AUX speed for use as a way mode, medium speed, or purge boost
• BMS compatibility option for integrated control
• Volt-free contact for flexible connections
• Adaptive comfort technology for optimal comfort
• G3 filtration to maintain air quality
• Tool-free filter access for easy maintenance
• SAP Appendix Q listed for compliance

🔧 Controllability 🔧

The Zehnder ComfoAir units come with optional boost switches and room sensors for demand-controlled ventilation.

🖥️ Wall Controllers

There are 3 options for additional wall controllers:

• Zehnder ZGRC1:
  • Two-position switch for manual flow rate selection
  • Summer bypass and frost protection indicators
  • Service and maintenance alerts
  • Automatic return to low speed after a preset time
• Zehnder ZGS1:
  • Three-position switch for flow rate selection
• Zehnder ZGS2:
  • Two-position switch for flow rate selection

📱 Room Sensors

• Zehnder AQR: Remote air quality sensor that increases flow rate automatically based on pollutants (hydrogen, CO, methane, etc.)
  • Adjustable overrun timer (2-40 minutes)
• Zehnder PIRR: Passive infra-red movement sensor that increases flow rate based on detected movement (up to 7m)
  • Adjustable overrun timer (2-40 minutes)
• Zehnder HHR: Humidity sensor that increases flow rate based on relative humidity (30-90%)
  • Adjustable overrun timer (2-40 minutes)
• Zehnder THR: Temperature sensor that increases flow rate based on temperature (5-35°C)
  • Fixed 2-minute overrun timer

🌐 BMS Control

BMS integration is possible for seamless control within larger systems.

💨 Integral Humidity Sensor

The built-in humidity sensor adjusts fan speed in proportion to relative humidity levels, saving energy and reducing noise.

🛠️ Installation

• Bracket included for easy ceiling mounting
• Tool-free filter access for maintenance convenience

🏗️ Construction

• Manufactured from EPP with plastic outer covers for lightweight durability

🔌 Motors

Equipped with quality EC motors for efficient, low-energy operation

🌀 Filtration

• 2 x G4 filters fitted to the unit
• Optional G4 to air supply

❄️ Summer By-Pass

• 100% summer bypass for optimal cooling during warm months

🔊 Low Noise Levels

Designed with quiet operation in mind for maximum comfort

⚡ Heat Exchanger

The unit features a high-efficiency heat exchanger for improved energy recovery

🌡️ Frost Protection

Equipped with a frost protection programme to ensure safe operation in colder temperatures

🔄 Orientation

The unit can be left- or right-hand configured through software without the need for mechanical changes

🛡️ Warranty

• 2-year warranty with the option to extend to 6 years by registering on the Zehnder website within 6 months of purchase

📜 Approvals

The Zehnder ComfoAir 155 CM is SAP Appendix Q listed for guaranteed compliance

🛠️ Accessories

Full range of accessories available to complete your system setup.

🔍 Further Information

For more details, please visit the Zehnder website.
