Ducobox Reno MEV

DucoBox Reno

The DucoBox Reno is a high quality MEV unit that extracts continually from the kitchen and bathrooms to one central unit to provide a quiet and efficient ventilation system

The Reno is a very compact unit suitable for any location or orientation and has fully programable speeds and an internal humidity sensor for demand control operation

A range of optional easy to connect Co2 or wall controllers using RF wireless technology is available

Manufactured in Belgium and developed with double wall construction to provide the quietist MEV available in Europe

With a high performance of 325 m3/hr. this unit is ideally suited for high quality new builds or high-end renovations with up to 5 extract points

The DucoBox silent has 4 x125mm connections and 1 x 125mm outlet

With the optional Q-V adaptors this unit is also suitable with the use of up to 4 x 90mm crushproof radial ductwork connections with antibacterial lining that will lower the installation time and comply to the latest building control regulations

BPC are MEV specialists and the original developers of MEV kits in the Uk and Ireland with lifetime technical support on our top-quality systems

Key Features

• Suitable for up to 5 bathrooms
• Integrated humidity sensor
• Easy to adjust airflow rates
• Ultra Compact dimensions
• RF communication built in
• Powerful performance of 325 m3hr
• Low energy High performance DC fan
• Only 3 kg in weight
• 3 x Variable fan speeds
• 2+1 Year parts warranty*
• Suitable for mounting in any direction
• Optional CO2 box sensor
• Optional Wired / RF wall controller
• Optional 4 x 125 to 90 radial adaptors
• Optional fault indicator
• Optional Controller can be mounted onto unit

Demand Controlled Ventilation

The Duco Box Reno has an internal humidity sensor that detects high humidity and increases the performance until the set level is reached again

External Control Components

The DucoBox Silent Connect can be linked with the following external control components.

Smart Demand User controller

There are 3 types of User controllers are available in either wireless or wired versions and in black or white face plates

• Remote control (popular option)
• Remote Control with CO2 sensor
• Remote control with Humidity Sensor

The wired version will require the additional 24v Power supply

CO2 Box Sensors

The optional CO2 Box Sensor can be installed very easily and quickly and provides CO2 measurement

in an air duct. The sensor is wired directly to the printed circuit board. This means that no wiring for

room sensors need to be provided.

Switch Sensor

The Switch Sensor can perform either or both of the following functions:

Switch detection: the ventilation system will perform a function when closing a (two-pole) dry

contact. Suitable for toilet detection or overrule setting (only one function per switch sensor).

Repeater: the switch sensor is ideally suited as a repeater to strengthen the signal in the event of RF communication problems. In that case the switch sensor must be positioned in such a way that the distance to be bridged and/or interference by obstacles is reduced.

Surface Mounted Box

By using the optional surface-mounted box, DUCO controllers and sensors can be easily applied in renovation projects.

Quiet-Vent adaptors

The Quiet-Vent 125 to 90 adapters allow you to connect the 90mm radial pipe directly to the unit avoiding the use of a distribution box that will provide many benefits over using solid rigid ducting

Up to 7 number 90mm radial ducts can be used on the unit

This option will reduce installation time over solid rigid duct, reduce cost as there is no need for a distribution box, and comply with the latest building control requirements

Fault Indicator

With the optional wall mounted fault indicator, you can be notified by colored indicator light when a fault is detected (max one per unit)

Further Information

Please visit the Duco website for further information – Link

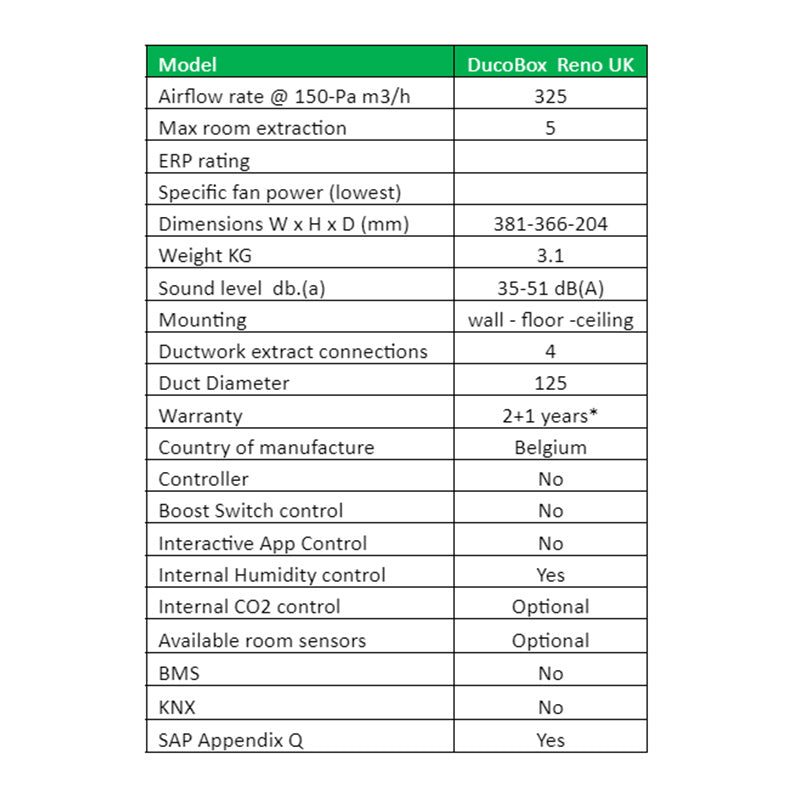

Technical
