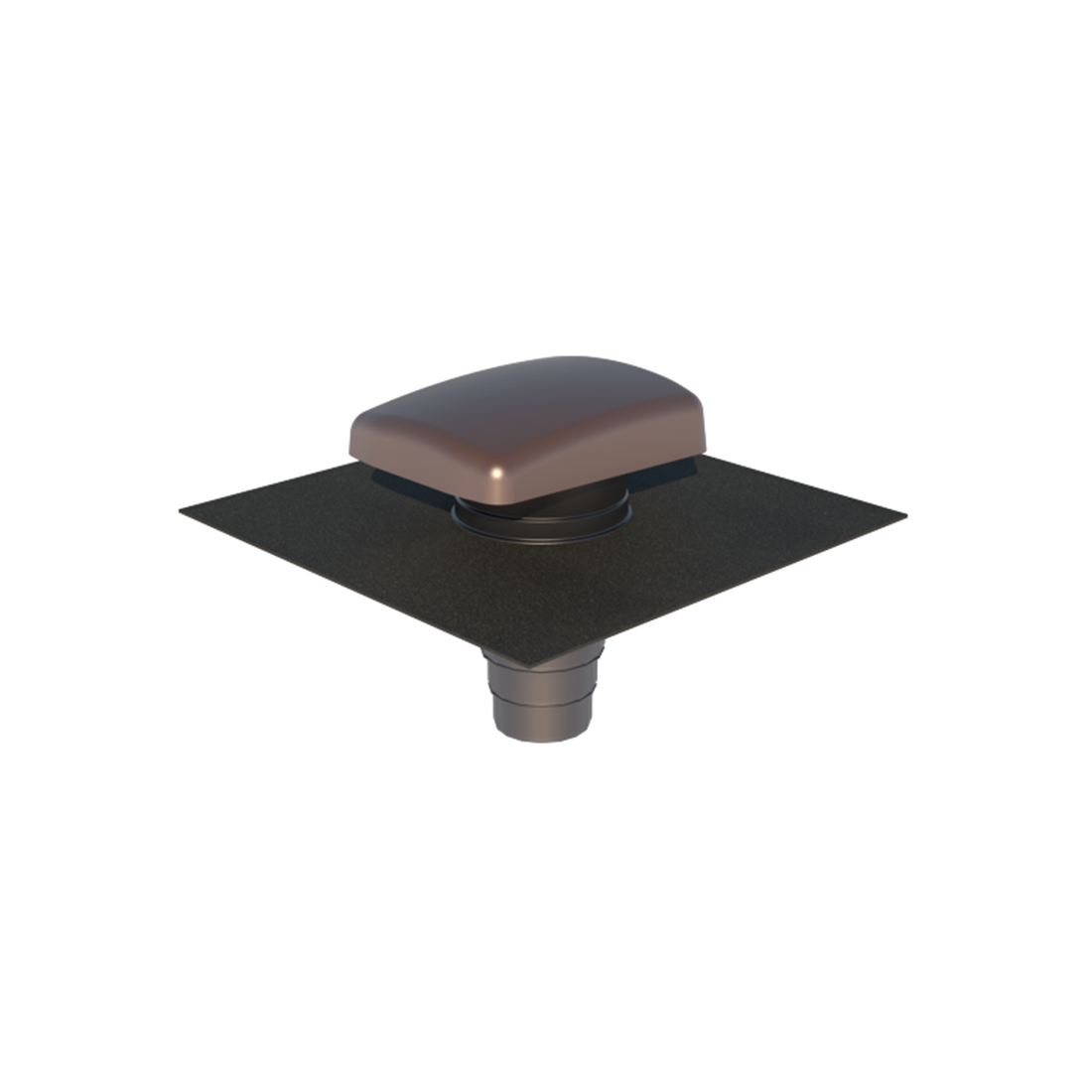

UB41 Universal Slate & Tile Terminal with Adaptor (SEPIA - Red/Brown)

Ventilation Tile Hooded Universal UB41 + Adaptor – Sepia (Ubbink)

SKU: UB41-SEPIA

Overview

The UB41 Universal Roof Terminal is engineered to suit most tiled and slated pitched roofs—no need to match tile or slate profiles. It features a streamlined hood on a 160 mm diameter upstand, joined to a 500 × 500 mm Ubiflex flashing skirt, and comes with a stepped adaptor for duct connection. It's also ideal for terminating soil and vent pipes where no external pressure test is required.

Key Features

• Large free-vent area: up to 18,750 mm² (at 160 mm) for high airflow
• Stepped adaptor included: fits 100/110/125/150 mm ducting, with the 160 mm size fitting directly
• Ubiflex flashing skirt (500 × 500 mm) adapts to most roof profiles
• Constructed from UV-stable polypropylene (PP)
• Colour-matched Sepia hood with black Ubiflex skirt
• Low-profile hood maintains a discreet roof appearance
• Simple installation: cut adaptor to required diameter and solvent-weld in place; skirt fits flush under tiles or slates

Technical Specifications

Material: Polypropylene (PP) with Ubiflex flashing
Colour: Sepia hood with black flashing skirt
Free Vent Area: 7,850 mm² (100 mm) to 18,750 mm² (160 mm)
Compatible Duct Sizes: 100, 110, 125, 150 mm (with adaptor); 160 mm (direct)
Flashing Skirt: 500 × 500 mm Ubiflex
Hood Upstand Diameter: 160 mm
Unit Gross Size: 500 mm length × 500 mm width
Net Weight: Approx. 1.66 kg
Minimum Roof Pitch: 22.5°
Includes Adaptor: Yes – cut-to-fit stepped adaptor

Performance & Installation Highlights

• Provides up to 18,750 mm² free-vent area, supporting airflow rates between 100–225 m³/h depending on duct size
• Adaptable to a wide range of roof pitches and profiles thanks to the flexible skirt and versatile adaptor
• Installation is quick and straightforward: simply cut the adaptor to the correct size, glue in place, and fit the flashing skirt beneath roof tiles or slates for a watertight seal
