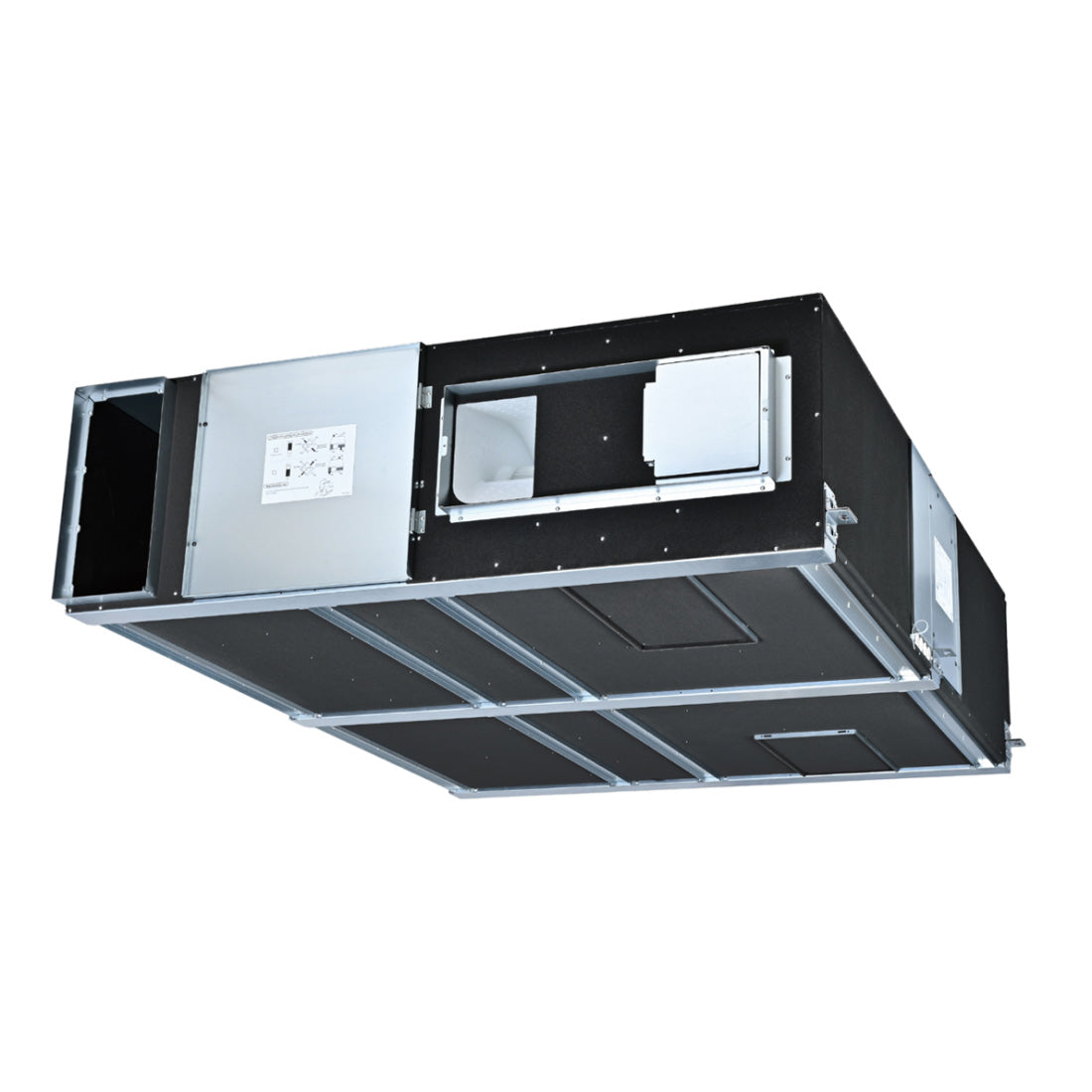

Mitsubishi LGH200RVXT3-E (250x750mm Spigot)

• Power Supply: 3 Phase
• Mitsubishi Electric pioneered heat exchanger enables maximised latent heat exchange, resulting in cost and carbon savings
• Low unit height (500mm) and lightweight structure, ideal for ceiling installation
• Four commissionable fan speeds, settable between 25-100%, with independent supply and return fan control offering low running costs and easier compliance to Part L
• Optional Mitsubishi Electric energy saving CO2 sensors allow automatic incremental fan control for a healthy indoor environment; sensors powered by Lossnay unit
• No condensate drain required allowing for easy design and installation
• Dual-barrier coated fans, prevents dust and grease accumulation, ensuring long-term efficient fan operation
• Constant pressure control available with 0-10V pressure transducer (field supplied), for variable airflow requirements across multiple zones
• Compatible with Mr Slim and City Multi air conditioning systems for a complete and highly effective system operation
• Duct handing selectable via dipswitch, for easy and flexible installation
• Optional high efficiency filters available

Product Part Number

LGH200RVXT3-E

Description

The Commercial Lossnay (LGH) Mechanical Ventilation Heat Recovery (MVHR) systems are designed to supply clean, fresh air into commercial buildings, whilst simultaneously extracting stale air. The RVXT3 units offer a significantly reduced height whilst maintaining a large airflow, allowing easy installation in ceiling voids.

Key Features

• Power Supply: 3 Phase
• Mitsubishi Electric pioneered heat exchanger enables maximised latent heat exchange, resulting in cost and carbon savings
• Low unit height (500mm) and lightweight structure, ideal for ceiling installation
• Four commissionable fan speeds, settable between 25-100%, with independent supply and return fan control offering low running costs and easier compliance to Part L
• Optional Mitsubishi Electric energy saving CO2 sensors allow automatic incremental fan control for a healthy indoor environment; sensors powered by Lossnay unit
• No condensate drain required allowing for easy design and installation
• Dual-barrier coated fans, prevents dust and grease accumulation, ensuring long-term efficient fan operation
• Constant pressure control available with 0-10V pressure transducer (field supplied), for variable airflow requirements across multiple zones
• Compatible with Mr Slim and City Multi air conditioning systems for a complete and highly effective system operation
• Duct handing selectable via dipswitch, for easy and flexible installation
• Optional high efficiency filters available
