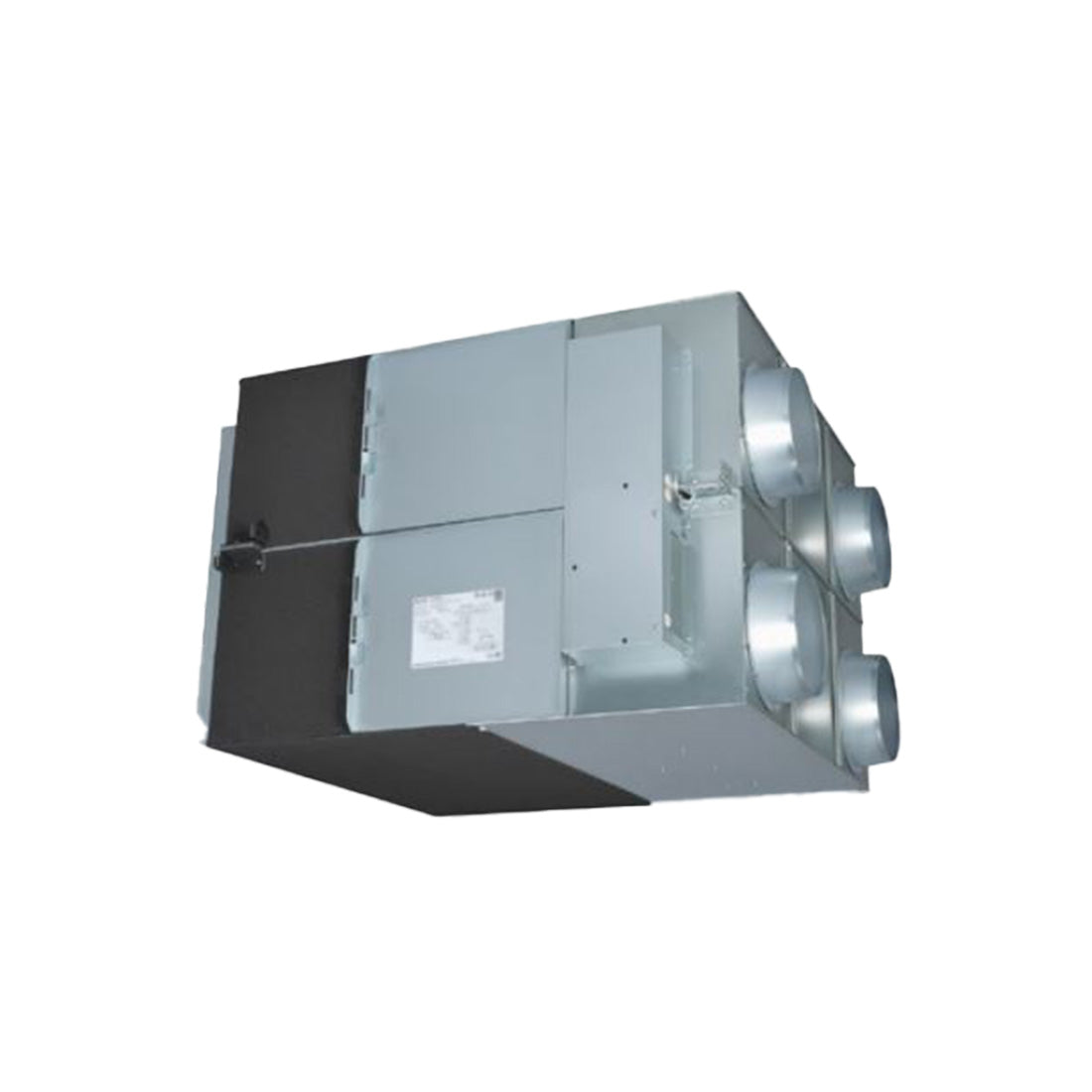

Mitsubishi LGH200RVX3-E

•    Suitable for commercial offices and schools
•    Airflow Rate of 2000 m3/hr @ 100Pa
•    4 x 250 mm duct diameter
•    Side and rear spigot options to external pipes
•    Up to 83% heat Recovery rate

The Mitsubishi LGH-200 RVX3-E are suitable for any type of commercial application including Schools and Offices or any property that do not require extraction from showers or other areas of high humidity

Please note the depth of this unit and due to 4 x spigots you may require additional transition pieces to connect to ductwork

BPC Ventilation are the largest independent MVHR specialists and supply lifetime technical support on our top-quality systems,

Key features- Mitsubishi Lossnay LGH-200 RVX3-E

•    Airflow Rate of 2000 m3/hr @ 100Pa
•    4 x 250 mm duct diameter
•    Side and rear spigot options to external pipes
•    Up to 83% heat Recovery rate
•    Lossnay paper core enables total heat exchange (sensible and latent)
•    compliance with Part L
•    Optional Mitsubishi Electric energy saving CO2 sensors
•    100% Summer By-Pass
•    Lightweight structure ideal for easy ceiling installation
•    Vertical installation available for flexibility of application
•    Optional digital Controller
•    Optional F7 filtration
•    0-10V input option.

Controllability

•    Volt Free contact
•    PCB Dipswitch function
•    Optional Controller
•    Optional 12v signal
•    Optional External sensors
•    Optional 0-10v DC Input
•    Optional Wi-Fi Interface
•    Optional M-Net connectivity
•    Control compatibility with Mr Slim and City Multi air conditioning systems for a complete and highly effective system operation

Wall LCD controller (optional)

The optional wall controller PZ-62DR-EB will allow you to
•    Adjust Fan Speed in 5% increments
•    Automatic control
•    Filter warning
•    Weekley Timer
•    Nighttime Purge
•    Summer By-Pass
•    Temperature
•    Optional Co2 display
•    Maintenance and Run Time
•    Connect to other Mitsubishi products
•    Operate Multiple Units (max 15)

Co2 Sensors

With the option of an additional CO2 sensor. When connected with the optional Wi-Fi Control Interface, CO2 levels can be viewed in real-time making it ideal for schools, medical facilities and offices.
It is well known that poor air quality impacts health, wellbeing and concentration levels. In conjunction with the CO2 sensor, the Lossnay LGH-RVX3-E system intuitively adjusts airflow to ensure optimum air quality, no matter how many people are in the room.
Two types of CO2 sensors are available: wall-mounted and duct-mounted types. Power is supplied to the CO2 sensor from the Lossnay board.

Construction

The Mitsubishi LGH units’ range are manufactured of airtight and noise absorbing EPP with a metal outer cover

Motors

High quality commercial motors with Dual-Barrier coating on the fan prevents dust and grease accumulation, ensuring long-term efficient operation

Flexible supply and exhaust fan commissioning in 5% increments, offering low running costs and easier

The default fan speed value (Fan speed 1: 25%, Fan speed 2: 50%, Fan speed 3: 75%, and Fan speed 4: 100%) of both supply air and exhaust air can be adjusted flexibly. Within the range between 25% and 100%, airflow can be adjusted by 5% increments to satisfactorily meet the designed airflow rate.

Dual Barrier Coating

Dual Barrier Coating prevents dust and oil build-up on the interior of the Lossnay unit, helping to keep it clean for optimal performance. A water-repellent effect is achieved by creating a coating film that has nano-sized concave-convex structures formed by silica nanoparticles made of water-repellent fluor resin and micron-sized concave-convex structures formed by combining micronized special-shaped particles (silicate) with the silica nanoparticles. At the same time, the uneven structure forms an air layer that suppresses the adhesion of dust and sand that contain a lot of humidity, reducing the amount of dirt that adheres to the substrate.

Filtration

•    2 x G3 filters are fitted to the unit that are easy to replace
•    Optional F7 to air supply

Summer By-Pass

The units have a 100% summer by-Pass

Heat Exchanger

The key to Lossnay is the unique heat transfer core. Through the Lossnay Core, up to 88%* of the energy in the stale exhaust air is recovered and transferred to pre-warm (or cool) incoming fresh, filtered air.

For example, in winter a building that has an inside temperature of 20°C and 4°C air outside, the incoming fresh air can be warmed to over 18°C by transferring through a Lossnay Ventilation System and benefitting from the efficient energy transfer process. The building’s air conditioning systems no longer have to work as hard to maintain desired indoor air temperatures.

Lossnay LGH-RVX3-E models are equipped with chemically treated paper core to recover sensible and latent heat from the outgoing stale air to pre-warm (or pre-cool) incoming fresh air to achieve higher levels of heat recovery, resulting in both cost and energy savings

The paper core is Not Suitable for extracting from areas of High Humidity (showers rooms etc)

Frost Protection

The unit has a frost protection programme

Orientation

The unit is available in only one orientation
The external pipes can be repositioned from the rear to side if required

Mounting

The units are supplied with ceiling mounting brackets and optional wall mounting brackets are available

Warranty

Mitsubishi offer a 3-year warranty with this unit

Accessories

•    Remote controller – PZ-62DR-EB
•    Standard Filters – PZ-80RF3-E
•    F7 Filter – PZ-80RFP3-E
•    Wall Mounted Co2 Sensor – PZ-70CSW-E
•    Duct Mounted Co2 Sensor – PZ-70CSD-E
•    Vertical Mounting Bracket – PZ-2VS-E

Further Information

Further information is available on the Manufactures website
