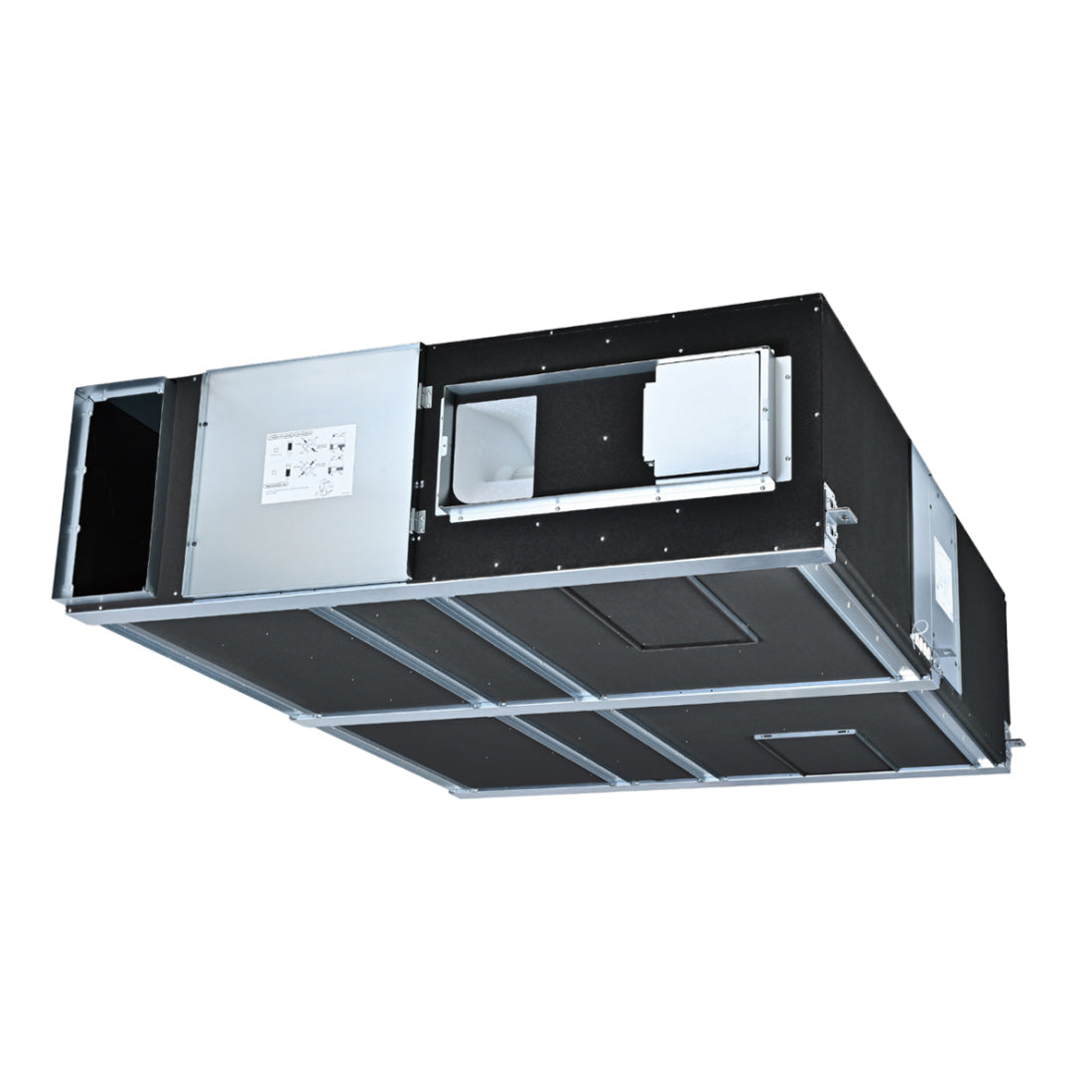

Mitsubishi LGH160RVXT3-E (250x750mm Spigot)

Mitsubishi LGH160RVXT3-E (250x750mm Spigot)

SKU : LGH160RVXT3-E

Overview

The Commercial Lossnay (LGH) Mechanical Ventilation Heat Recovery (MVHR) systems are designed to supply clean, fresh air into commercial buildings, whilst simultaneously extracting stale air. The RVXT3 units offer a significantly reduced height whilst maintaining a large airflow, allowing easy installation in ceiling voids.
£6,037.58 GBP £3,924.43 GBP
Sale Sold out

In Stock
  • For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
  • Order before 5pm, Dispatched Tomorrow

Download Files

View full details

Description

Mitsubishi LGH160RVXT3-E (250x750mm Spigot)

Overview

  • Power Supply: 3 Phase
  • Mitsubishi Electric pioneered heat exchanger enables maximised latent heat exchange, resulting in cost and carbon savings
  • Low unit height (500mm) and lightweight structure, ideal for ceiling installation
  • Four commissionable fan speeds, settable between 25-100%, with independent supply and return fan control offering low running costs and easier compliance to Part L
  • Optional Mitsubishi Electric energy saving CO2 sensors allow automatic incremental fan control for a healthy indoor environment; sensors powered by Lossnay unit
  • No condensate drain required allowing for easy design and installation
  • Dual-barrier coated fans, prevents dust and grease accumulation, ensuring long-term efficient fan operation
  • Constant pressure control available with 0-10V pressure transducer (field supplied), for variable airflow requirements across multiple zones
  • Compatible with Mr Slim and City Multi air conditioning systems for a complete and highly effective system operation
  • Duct handing selectable via dipswitch, for easy and flexible installation
  • Optional high efficiency filters available

Product Part Number

LGH160RVXT3-E

Description

The Commercial Lossnay (LGH) Mechanical Ventilation Heat Recovery (MVHR) systems are designed to supply clean, fresh air into commercial buildings, whilst simultaneously extracting stale air. The RVXT3 units offer a significantly reduced height whilst maintaining a large airflow, allowing easy installation in ceiling voids.

Key Features

  • Power Supply: 3 Phase
  • Mitsubishi Electric pioneered heat exchanger enables maximised latent heat exchange, resulting in cost and carbon savings
  • Low unit height (500mm) and lightweight structure, ideal for ceiling installation
  • Four commissionable fan speeds, settable between 25-100%, with independent supply and return fan control offering low running costs and easier compliance to Part L
  • Optional Mitsubishi Electric energy saving CO2 sensors allow automatic incremental fan control for a healthy indoor environment; sensors powered by Lossnay unit
  • No condensate drain required allowing for easy design and installation
  • Dual-barrier coated fans, prevents dust and grease accumulation, ensuring long-term efficient fan operation
  • Constant pressure control available with 0-10V pressure transducer (field supplied), for variable airflow requirements across multiple zones
  • Compatible with Mr Slim and City Multi air conditioning systems for a complete and highly effective system operation
  • Duct handing selectable via dipswitch, for easy and flexible installation
  • Optional high efficiency filters available
