Vac Mini

Vac Mini

Part Number

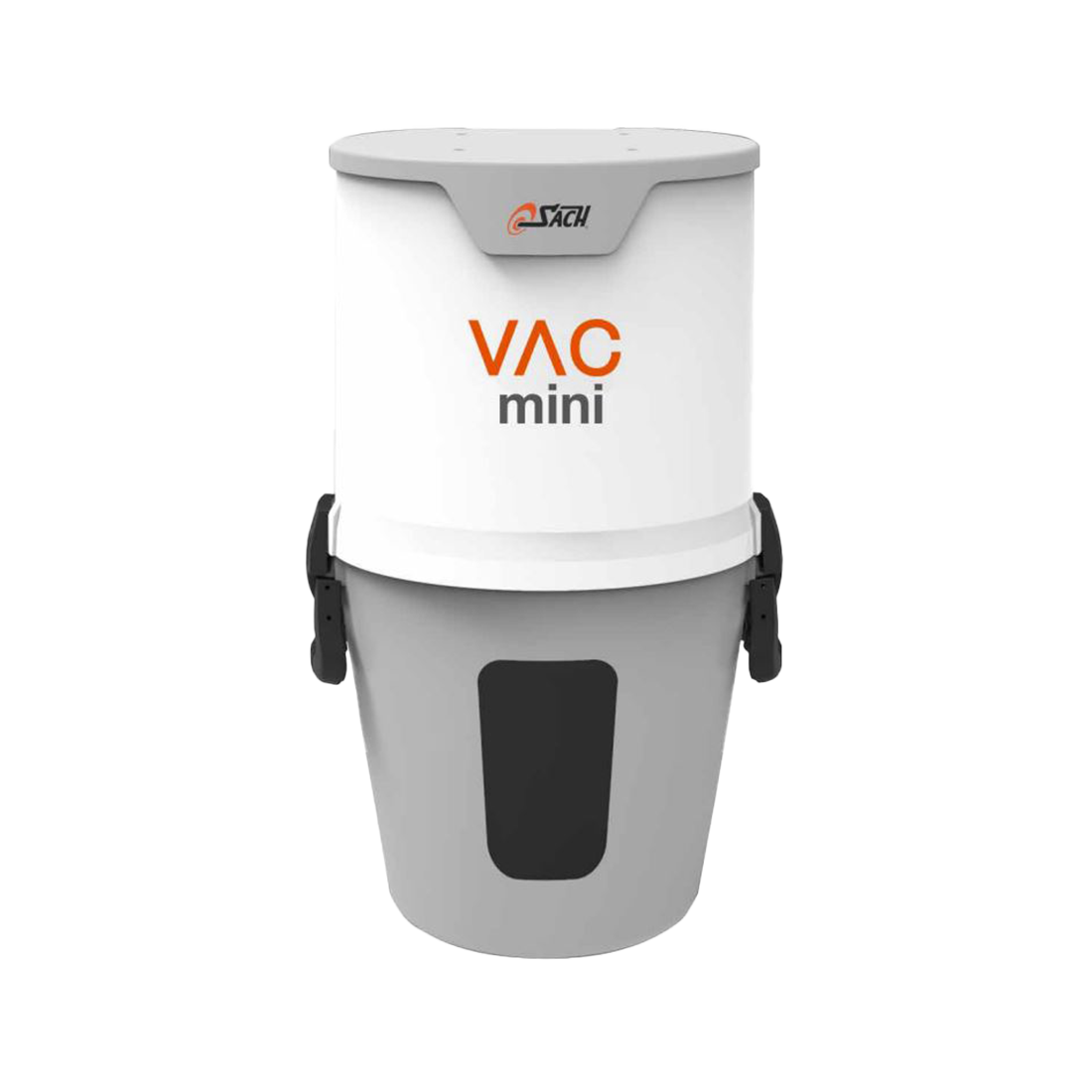

Vac Mini - UD6011/SC

Product Overview

The Vac Mini is a compact yet powerful central vacuum unit, designed for smaller homes or spaces. With a high-speed through-flow motor, it delivers outstanding suction performance while maintaining a relatively low noise level. This unit offers efficient cleaning capabilities with a 28-liter bin capacity and a HEPA cartridge filter, making it ideal for homes up to 300m².

Key Features

Powerful Performance – 1500W motor providing 550 airwatts and 3,000 mm/H²O waterlift
Large Capacity – 28-liter bin to handle a significant amount of dirt and debris
HEPA Filtration – Includes a HEPA cartridge filter with a 5,000 cm² surface area for improved air quality
Quiet Operation – Noise level ≤60 dB for a quieter cleaning experience
Compact Design – Lightweight and space-efficient, weighing only 12 kg
Versatile Coverage – Suitable for dwellings up to 300 m² with a maximum of 6-7 inlet valves
Maximum Reach – Can cover up to 30 meters from the unit

Specifications

Power (W): 1500
Air Flow (m³/h): 190
Waterlift (mm/H²O): 3,000
Airwatts: 550
HEPA Cartridge Filter Surface Area (cm²): 5,000
Bin Capacity (L): 28
Noise Level (dB): ≤60
Weight (kg): 12
Motor: High-speed through-flow motor

Recommendation for Installation

Dwelling Size (m²): ≤300
Furthest Valve from the Unit (m): 30
Maximum Number of Inlet Valves: 6-7
