Quiet-Vent 90mm 4 point Adjustable Top entry Distribution box 125mm Spigot
Quiet-Vent 90mm 4 point Adjustable Top entry Distribution box 125mm Spigot
SKU : QV90-04125MTE
Overview

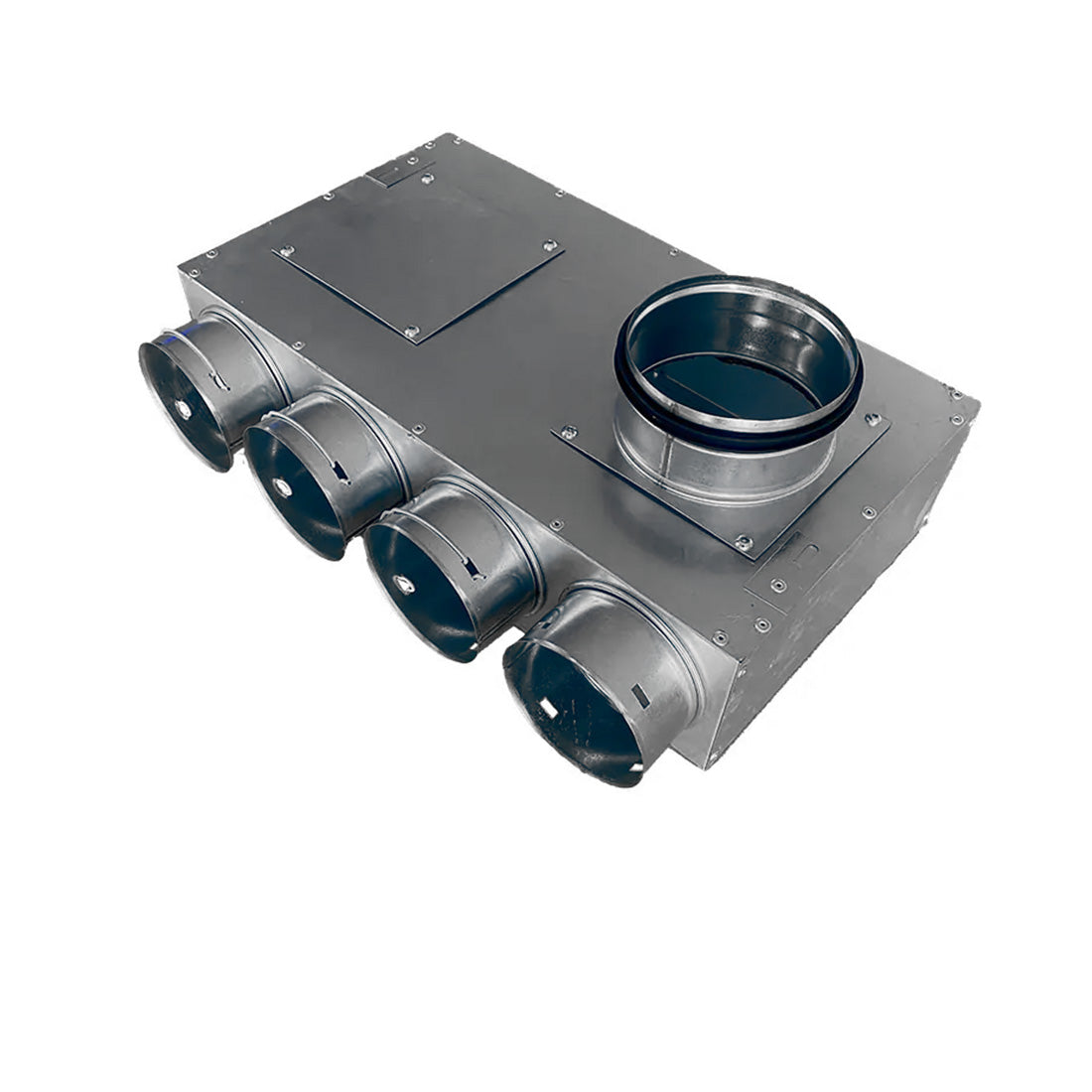

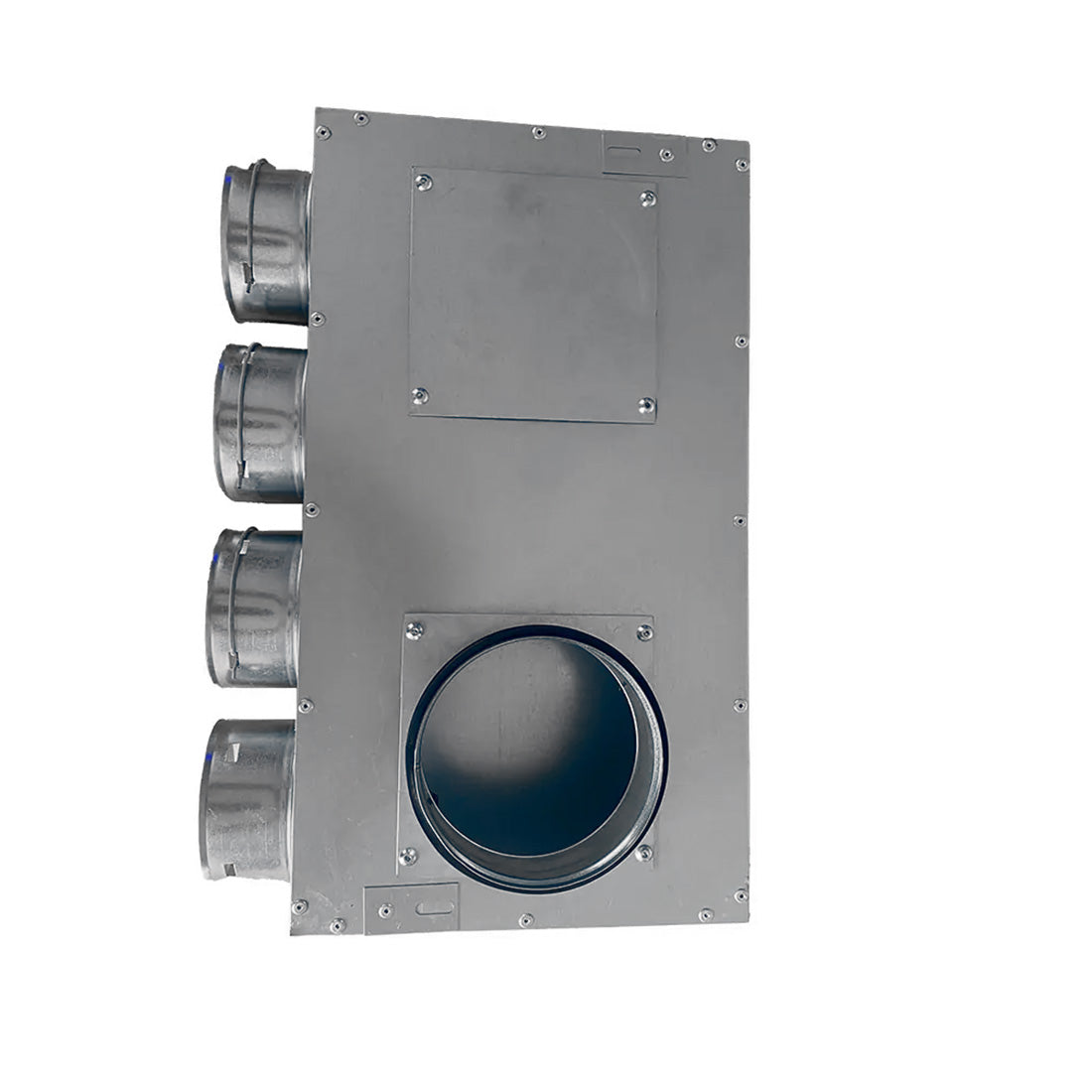

The Quiet-Vent 90mm 4 Point Adjustable Top Entry Distribution Box offers flexible airflow distribution with four adjustable points and a 125mm spigot. Designed for both ceiling and floor installations, this box requires sealing rings for optimal performance. Unused vents must be sealed with blanking caps to maintain an airtight seal. Ideal for systems needing versatile and efficient airflow management.In Stock
Couldn't load pickup availability
For warranty information, please refer to the manufacturer’s warranty policy or contact them directly.
- Order before 5pm, Dispatched Tomorrow
Description
Quiet-Vent 90mm 4 Point Adjustable Top Entry Distribution Box 125mm Spigot
Product Part Number
Quiet-Vent 90mm 4 Point Adjustable Top Entry Distribution Box - QV90-04125MTE
Product Overview
The Quiet-Vent 90mm 4 Point Adjustable Top Entry Distribution Box offers flexible airflow distribution with four adjustable points and a 125mm spigot. Designed for both ceiling and floor installations, this box requires sealing rings for optimal performance. Unused vents must be sealed with blanking caps to maintain an airtight seal. Ideal for systems needing versatile and efficient airflow management.
Key Features
✔ 4 Adjustable Points – Customizable airflow distribution for varied installation needs
✔ 125mm Spigot – Compatible with systems requiring a 125mm connection
✔ Sealing Rings Required – Ensures airtight installation for maximum efficiency
✔ Blanking Caps Included – Covers unused vents to maintain airtightness
✔ Flexible Installation – Can be mounted on the ceiling or floor, with easy radial pipe insertion
Specifications
- Dimensions (L x W x H): 400mm x 220mm x 110mm
- Spigot Size: 125mm
Installation Guide
- Secure the distribution box to the ceiling or floor
- Insert the radial pipe until the clips engage
- Ensure the system is airtight by using sealing rings
- Cover all unused vents with blanking caps
