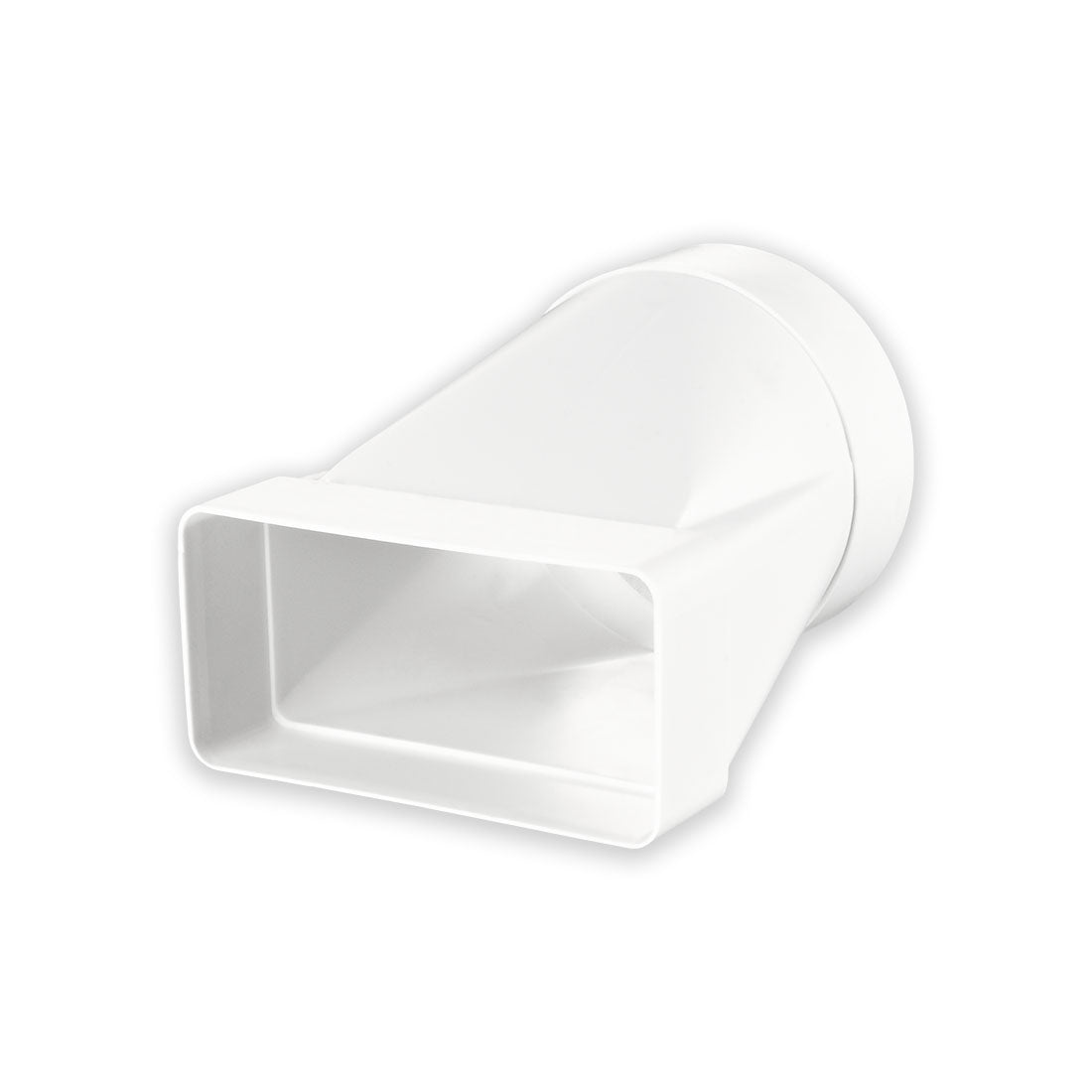

Rectangular Ducting Round to Straight Offset Adaptor

Overview

Rectangular Ducting Round to Straight Offset Adaptor

  • UK Manufactured
  • Pipe ends are female and will accept male fittings such as bends and grilles.
  • Lengths of duct channel can be joined together using a male connector.
  • Easy to install and durable, just push-fit duct and fittings together.
  • Compatible with most other manufactures
  • Extensive range of fittings, outlets, and grilles available
  • Max / Min Temperature: +60c / -15c.
  • DW/154 and meets UL94HB Flammability standard
  • Suitable to use in compliance with Part F Building Regulations.
  • Sap Appendix Q Compliant
  • Airflow performance independently tested by BSRIA or BRE.
Brand
  •   In Stock
Options
Quantity:
Price
Show Excluding Vat
£0.00 £0.00
Need Help ? Get in touch

Description

Rectangular Ducting Round to Straight Offset Adaptor

Product Part Number

110x54mm Round to Rectangular Adapter - A110100

204x60mm Round to Rectangular Adaptor - A204125

220x90mm Round to Rectanglular Adaptor - A220150

Description

110x54 to 100 Offset Straight Adaptor - A110100

 - Used to connect 110x54mm ducting to 100mm round male fittings

 - A 100mm connector (C100) would be required to connect to 100mm Pipe

204x60 to 125  Offset Straight Adaptor - A204125

 - Used to connect 204x60mm ducting to 125mm round male fittings

 - A 125mm connector (C125) would be required to connect to 125mm Pipe

220x90 to 150 Offset Straight Adaptor - A220150

 - Used to connect 220x90mm ducting to 150mm round male fittings

 - A 150mm connector (C150) would be required to connect to 150mm Pipe

Top Quality UK Manufactured ducting supplied in one-meter length for ease of transport and installation

Our range of plastic ducting is UK manufactured with top quality materials that will supply a durable product suitable for domestic and commercial systems

It is perfectly suited for ducting your Ventilation system, Kitchen extractor fan, bathroom fan or In-Line Extract Fans

It can be used as a part of a long ductwork run for a variety of purposes including whole house ventilation, passive stack vent, positive input, air conditioning, HVAC, and Heat Recovery Systems.

Compatibility

Compatible with most manufactures including



110x53mm to 100mm

204x60mm to 125mm

220x90mm to 150mm

Verplas

 VKC253F

 VKC5613

 VKC5713

Vent-Axia

 400740

 370127

 403031

Manrose

 40701

 55700

                -

Domus

 DD070

 50570

 970

Nuaire

              -

               -

                -



Performance

Solid Rigid ducting is suitable for use in all buildings to provide superior airflow performance vs. comparative size rectangular or flexible pvc or Aluminium duct. Suitable to use in compliance with Part F Building Regulations.

Installation

To provide the best performance in airtightness and durability we recommend You provide greater mechanical strength to a joint by using a combination of Plastic Ducting Sealant and Aluminium Duct Sealing Tape

  1. Apply Duct sealant to the pipe connections
  2. Push together
  3. Apply Aluminium Duct Sealing Tape over joint

Alternatively, you can use self-sealing fittings that speed up the time taken by up to 70% and can be easily dismantled

Insulation of Ductwork

It is important that any ducting located in a cold area (e.g. loft space) to be insulated. The insulation needs to be the equivalent of 25mm thick and have a thermal conductivity of 0.04W/(m.k) or less.

This ensures that condensation doesn’t form due to the difference in air temperature inside the duct when compared to the air temperature in the cold space.

If you don’t have a loft space there is still a need for insulated ducting on the intake and exhaust legs, as they will be carrying cold air in a warm space. The level of insulation can be achieved by wrapping PVC duct in a layer of 25mm duct wrap that has a silver foil face on a 25mm rockwool

It is also worth noting that foil wrap with air bubbles (bubble wrap) is no longer applicable in building control regulations

Available Sizes

  • 110x54mm to 100mm
  • 204x60mm to 125mm
  • 220x90mm to 150mm

NOTE: If you require larger ductwork we recommend you use Metal Spiral ducting and fittings due to superior strength

Documentation

Technical Specification





Rectangular Ducting Straight Adaptor Specification

Round System (mm)

110x54mm - 100mm

204x60mm - 125mm

220x90mm - 150mm

Product Type

Adaptor

Adaptor

Adaptor

Free Area







Length (mm)

120

155

200

Width (mm)

54

60

 90

Height (mm)

 104

131

 225

Spigot size (mm)

100

125

150

Colour

White

White

White

Material

Polystyrene

Polystyrene

Polystyrene

Weight (g)

90

180

296

Packaged Weight (Kg)







Packaged Length (mm)







Packaged Width (mm)







Packaged Height (mm)







Temp Max (°C)

60

60

60

Temp Min (°C)

-15

-15

-15

Pressure Loss (Pa) 15 l/s

3.70

0.20

0.21

Pressure Loss (Pa) 30 l/s

14.60

0.70

0.60

Pressure Loss (Pa) 60 l/s

58.00

1.90

1.70

Part Number

 A110100

 A204125

 A220150

EAN- Barcode

5060586911201

5060586912697

 5060586912703
