Drayton Wiser Radiator Thermostat

Overview
  • Add radiator thermostats to any Wiser kit to create more independent zones.
  • Flexibility - create up to 16 zones using up to 63 devices
  • Control on the move via a simple app
  • Multiple temperature sensors for high accuracy
  • Automatic valve protection prevents limescale build up
  • Simple twist-top user interface to activate boost
  • Compact and modern design
  •   In Stock
Options
Quantity:
Price
Show Excluding Vat
£0.00 £0.00
Need Help ? Get in touch

Description

Drayton Wiser Radiator Thermostat

Product part Number

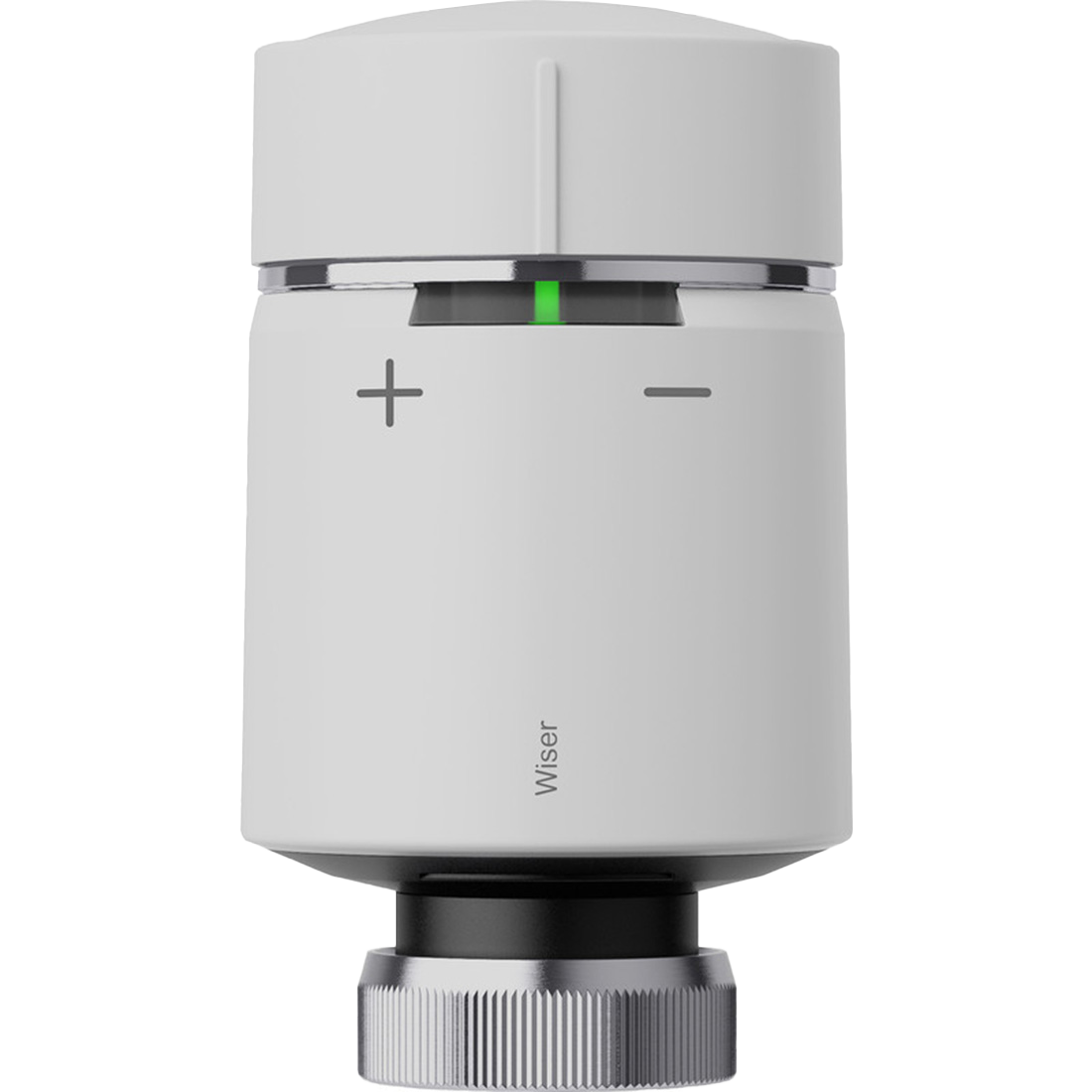

White Wiser Radiator Thermostat - WV704R0A0902

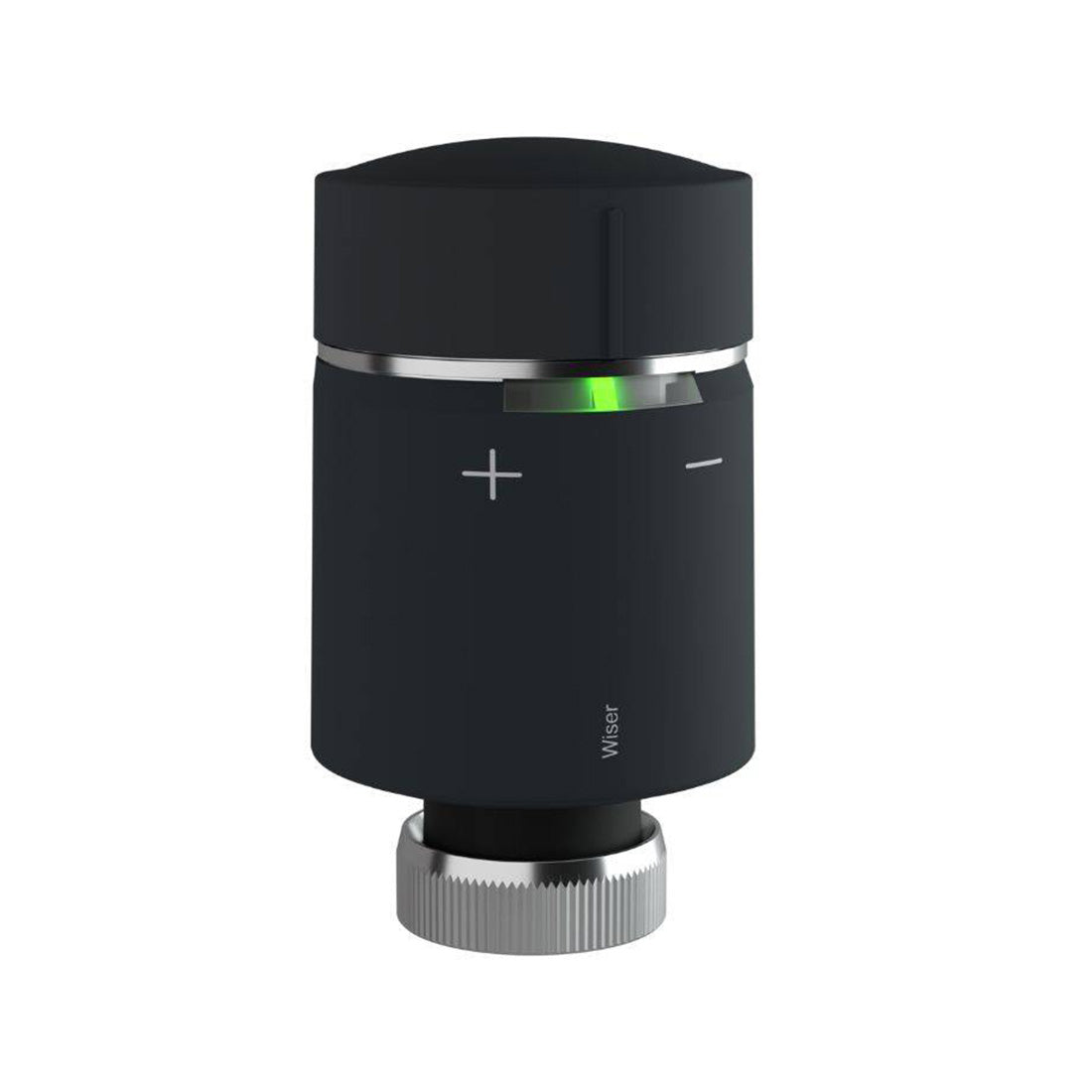

Anthracite Wiser Radiator Thermostat - WV704R0A0901

Description

Wiser radiator thermostat can be added to any Drayton Wiser kit to build a full multi-zone system. Battery-powered and compatible with most standard radiator valves. Control on the move via a simple app. Multiple temperature sensors for high accuracy, and automatic valve protection prevents lime scale build-up. Simple twist-top user interface to activate boost. Compact and modern design.

Key Features

  • Add radiator thermostats to any Wiser kit to create more independent zones.
  • Flexibility - create up to 16 zones using up to 63 devices
  • Control on the move via a simple app
  • Multiple temperature sensors for high accuracy
  • Automatic valve protection prevents limescale build up
  • Simple twist-top user interface to activate boost
  • Compact and modern design

Documentation

Technical Specification

Specification

Power supply 2x1.5V IEC LR6 (AA) alkaline batteries (included)
Wiring No wiring required
Interfaces User: Twist Cap, LED; I/O: None
Operating temperature 0°C to 45°C
Storage temperature -10°C to 55°C
Maximum mounting surface temperature 93°C
Maximum water temperature 73°C continuous and 110°C max
Ingress protection IP30
Ambient humidity (non-condensing) Operating 25% to 90%, Storage 15% to 95%
Set-point range 5°C to 30°C
Control accuracy <0.8°C at 4°C/hour
Temperature resolution 0.5°C
Ball pressure test 75°C
Pollution degree 2
Software class A
Radio technology/frequency 2.4GHz (Bi-directional, Mesh)
Radio signal range 30m
Mounting Radiator valve
Maximum radio frequency power transmitted +13dBm (20mW)
Software version 6712089
Relevant directives Radio Equipment Directive (RED) 2014/53/EU, Batteries Directive 2006/66/EC, RoHS Directive 2011/65/E
Applied standards EN60730-1; EN60730-2-7; EN60730-2-9, EN 300 328
Sustainable offer status Green Premium Product
